AirPort Time Capsule 802.11ac
AirPort Time Capsule Specs History
Horizontal Scroll: Shift + Mouse Wheel
Updated: 2026/01/25
Device Count: 5
Compare
Fullscreen
Zoom(100%)
Dark Mode
中文站点
| Model | Basic | Hardware | Other | ||||||
|---|---|---|---|---|---|---|---|---|---|
Basic Info | Wi-Fi | Protocols | Storage | Ports | Size & Weight | Model Numbers | Description | Model Number | |
 Preview | Release Date 2013.06 Discontinued 2018.04 Color | Speed: 1.3 Gbps Compatibility: IEEE 802.11a/b/g/n/ac Frequency: Simultaneous dual-band 2.4GHz and 5GHz Power Output: 32.5 dBm maximum (varies by country) Security: WPA/WPA2 Personal, Enterprise | NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, IPv6 (6to4 and manual tunnels) | Capacity: 2 TB or 3 TB Type: Server-grade SATA hard drive | Gigabit Ethernet port： 4 USB 2 port： 1 (480 Mbps) | Height: 168mm Width: 98mm Weight: 1.48 kg | A1470 | Released in June 2013, the fifth-generation model was renamed AirPort Time Capsule and featured a new design measuring 3.85 inches (9.8 cm) square and 6.6 inches (17 cm) tall. Its footprint was similar to the latest AirPort Express and Apple TV (2nd generation and later), though it was considerably taller. While the height increased significantly over the previous generation, the I/O ports remained the same. Capacities remained identical to the fourth generation at 2 TB and 3 TB, while introducing the latest 802.11ac Wi-Fi standard. | ME177LL/A (2 TB) ME182LL/A (3 TB) |

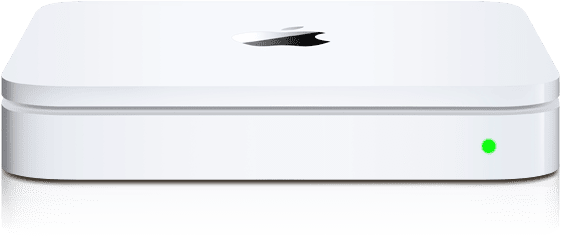

 Preview Time Capsule 802.11n (4th Generation) | Release Date 2011.06 Discontinued 2013.06 Color | Speed: 200–540 Mbps Compatibility: IEEE 802.11a/b/g/n Frequency: Simultaneous dual-band 2.4GHz and 5GHz Power Output: 20 dBm (nominal) Security: WPA, WPA2, and WEP (40-bit or 128-bit) | NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, SNMP | Capacity: 2 TB or 3 TB Type: SATA hard drive | Gigabit Ethernet port： 4 USB port： 1 | Height: 36.3mm Width: 197mm Weight: 1587 g | A1409 | In June 2011, Apple again increased the hard drive capacities across the lineup. A 2 TB Time Capsule was priced at $299 (replacing the 1 TB model), while a new 3 TB model was introduced for $499. | MD032LL/A (2 TB) MD033LL/A (3 TB) |
Preview Time Capsule 802.11n (3rd Generation) | Release Date 2009.10 Discontinued 2011.06 Color | Speed: 200–540 Mbps Compatibility: IEEE 802.11a/b/g/n Frequency: Simultaneous dual-band 2.4GHz and 5GHz Power Output: 20 dBm (nominal) Security: WPA, WPA2, and WEP (40-bit or 128-bit) | NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, SNMP | Capacity: 1 TB or 2 TB Type: 7200-rpm SATA hard drive | Gigabit Ethernet port： 4 USB port： 1 | Height: 36.3mm Width: 197mm Weight: 1587 g | A1355 | On October 20, 2009, Apple updated the Time Capsule with improved antennas for better wireless performance in terms of speed and range. Apple claimed this resulted in Time Machine backups to the Time Capsule being up to 60% faster. | MC343LL/A (1 TB) MC344LL/A (2 TB) |
Preview Time Capsule 802.11n (2nd Generation) | Release Date 2009.03 Discontinued 2009.10 Color | Speed: 200–540 Mbps Compatibility: IEEE 802.11a/b/g and draft 802.11n Frequency: Simultaneous dual-band 2.4GHz and 5GHz Power Output: 20 dBm (nominal) Security: WPA, WPA2, and WEP (40-bit or 128-bit) | NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, SNMP | Capacity: 500 GB, 1 TB, or 2 TB Type: 7200-rpm SATA hard drive | Gigabit Ethernet port： 4 USB port： 1 | Height: 36.3mm Width: 197mm Weight: 1587 g | A1302 | Time Capsule is a wireless network-attached storage device manufactured by Apple Inc., positioned as a backup device to be used with the Time Machine backup utility introduced in Mac OS X 10.5 Leopard. The device includes a full AirPort Extreme Base Station (with 802.11n wireless, an Ethernet WAN port, and three Ethernet LAN ports). Storage is provided by what Apple calls a "server-grade" hard drive. In early 2009, Apple released new models offering simultaneous 802.11n dual-band operation to allow older devices to use lower wireless speeds without affecting overall performance. Simultaneously released was the Guest Network feature, allowing guests to log in with a separate password to keep the private network secure. | MB764LL/A (500 GB) MB765LL/A (1 TB) MB996LL/A (2 TB) |
Preview Time Capsule 802.11n (1st Generation) | Release Date 2008.02 Discontinued 2009.03 Color | Speed: 200–540 Mbps Compatibility: IEEE 802.11a/b/g and draft 802.11n Frequency: 2.4GHz or 5GHz Power Output: 20 dBm (nominal) Security: WPA, WPA2, and WEP (40-bit or 128-bit) | NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, SNMP | Capacity: 500 GB or 1 TB Type: 7200-rpm SATA hard drive | Gigabit Ethernet port： 4 USB port： 1 | Height: 36.3mm Width: 197mm Weight: 1587 g | A1254 | Time Capsule is a wireless network-attached storage device manufactured by Apple Inc., positioned as a backup device to be used with the Time Machine backup utility introduced in Mac OS X 10.5 Leopard. The device includes a full AirPort Extreme Base Station (with 802.11n wireless, an Ethernet WAN port, and three Ethernet LAN ports). Storage is provided by what Apple calls a "server-grade" hard drive, with capacities of 500 GB or 1 TB. It was announced at the 2008 Macworld Expo and released in February 2008, with the 500 GB version priced at $299 and the 1 TB version at $499. | MB276LL/A (500 GB) MB277LL/A (1 TB) |
