Detailed specifications comparison for all Apple displays, from Studio Display XDR with A19 Pro chip to Cinema Display. Compare 5K XDR to 5K Retina display quality, Thunderbolt 5 high-speed connection, 96W/140W power delivery, P3 + Adobe RGB wide color gamut with 10-bit color depth, Center Stage camera and Desk View, six-speaker spatial audio system, studio-grade mic array, adjustable stands, and VESA compatibility for designers, photographers, and video editors.

Display Specs History

Horizontal Scroll: Shift + Mouse Wheel

Updated: 2026/03/11

Device Count: 22

Compare

Fullscreen

Zoom(100%)

Dark Mode

中文站点

Model	Basic		Display			Hardware			Other
Model	Basic Info	Chip / System	Display Specs	Screen Details	Other Specs	Mic / Speaker	Ports	Camera Specs	Size & Weight	Mount Type	System Requirements	Security Slot	Model Numbers	Model ID	Docs

Preview

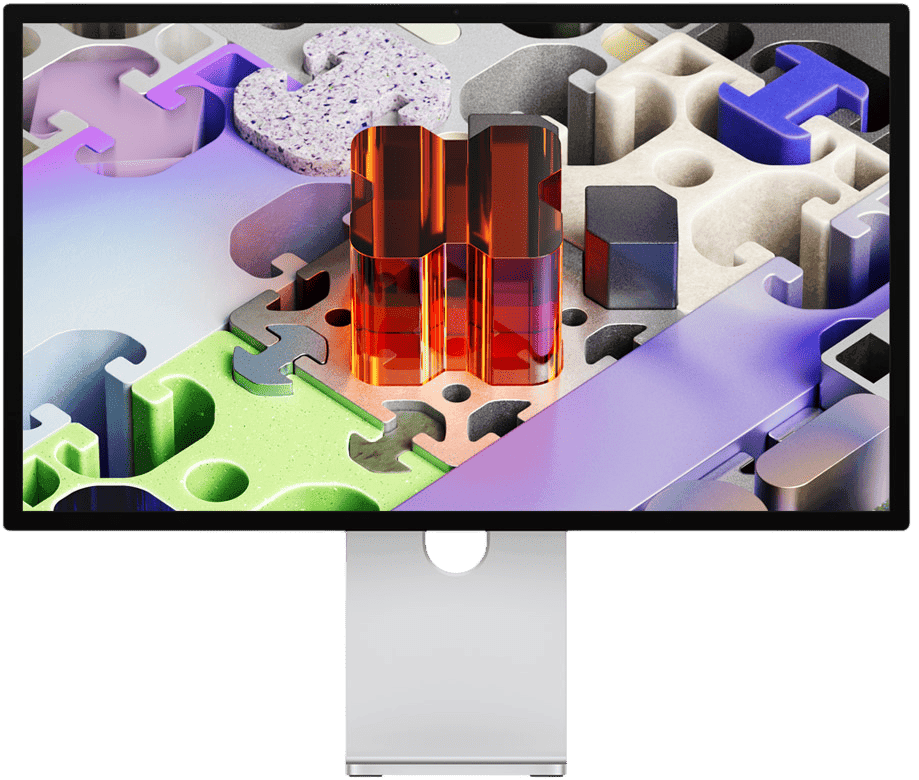

Studio Display XDR

(2026)

Release Date

2026.3

Color

A19 Pro

Firmware: Studio Display Firmware 26.3 or later

27"

5K Retina XDR display

Resolution:

5120 x 2880

PPI：

218

Color:

True Tone, wide color(P3 + Adobe RGB)

Color Depth:

10-bit

Contrast ratio:

1000000:1

Viewing Angle:

178° horizontal; 178° vertical

Brightness:

1000 nit

HDR Brightness:

2000 (peak) nit

Microphone:

Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming

Speaker:

High-fidelity six-speaker system with force-cancelling woofers and wide stereo sound

Thunderbolt 5：

2 (120Gb/s)

USB-C：

2 (10Gb/s)

12MP Ultra Wide camera with 122° field of view and Center Stage support

Height: 47.8cm

Width: 62.3cm

Thickness: 21.4cm

Weight: 8.5 kg

Tilt- and height-adjustable stand

VESA mount adapter

Mac with Apple silicon, macOS Tahoe 26.3.1 or later

iPad, iPadOS 26.3.1 or later

None

A3348

AppleDisplay18,1

Tech Specs

Preview

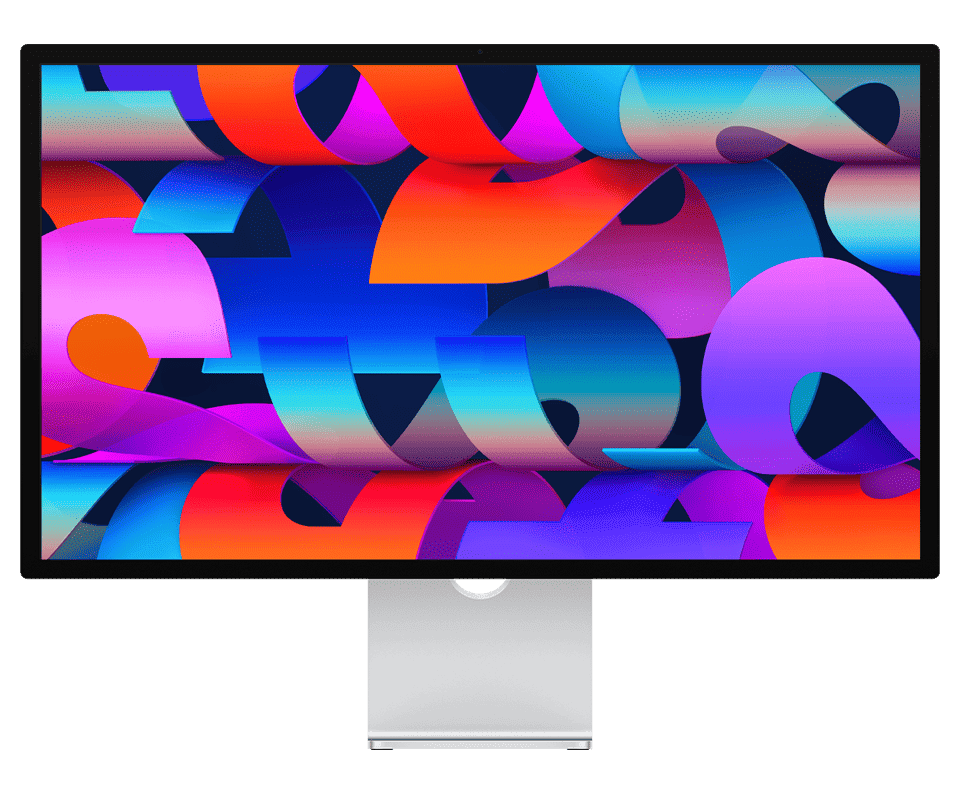

Studio Display

(2026)

Release Date

2026.3

Color

A19

Firmware: Studio Display Firmware 26.3 or later

27"

5K Retina display

Resolution:

5120 x 2880

PPI：

218

Color:

True Tone, wide color(P3)

Color Depth:

10-bit

Contrast ratio:

1000:1

Viewing Angle:

178° horizontal; 178° vertical

Brightness:

600 nit

Microphone:

Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming

Speaker:

High-fidelity six-speaker system with force-cancelling woofers and wide stereo sound

Thunderbolt 5：

2 (120Gb/s)

USB-C：

2 (10Gb/s)

12MP Ultra Wide camera with 122° field of view and Center Stage support

Height: 47.8cm

Width: 62.3cm

Thickness: 16.8cm

Weight: 6.3 kg

Tilt-adjustable stand

Tilt- and height-adjustable stand

VESA mount adapter

Mac with Apple silicon, macOS Tahoe 26.3.1 or later

iPad, iPadOS 26.3.1 or later

None

A3350

AppleDisplay18,2

Tech Specs

Preview

Studio Display

(2022)

Release Date

2022.3

Color

A13 Bionic

Firmware: Studio Display Firmware 15.3 ~ 17.0

27"

5K Retina display

Resolution:

5120 x 2880

PPI：

218

Color:

True Tone, wide color(P3)

Color Depth:

10-bit

Contrast ratio:

1000:1

Viewing Angle:

178° horizontal; 178° vertical

Brightness:

600 nit

Microphone:

Three-mic array

Speaker:

High-fidelity six-speaker system with force-cancelling woofers

Thunderbolt 3：

1 (40Gb/s)

USB-C：

3 (10Gbps)

12MP Ultra Wide camera with 122° field of view

Height: 47.8cm

Width: 62.3cm

Thickness: 16.8cm

Weight: 6.3 kg

Tilt-adjustable stand

Tilt- and height-adjustable stand

VESA mount adapter

Mac, macOS Monterey 12.3 or later

iPad, iPadOS 15.4 or later

None

A2525

AppleDisplay2,1

Tech Specs

Preview

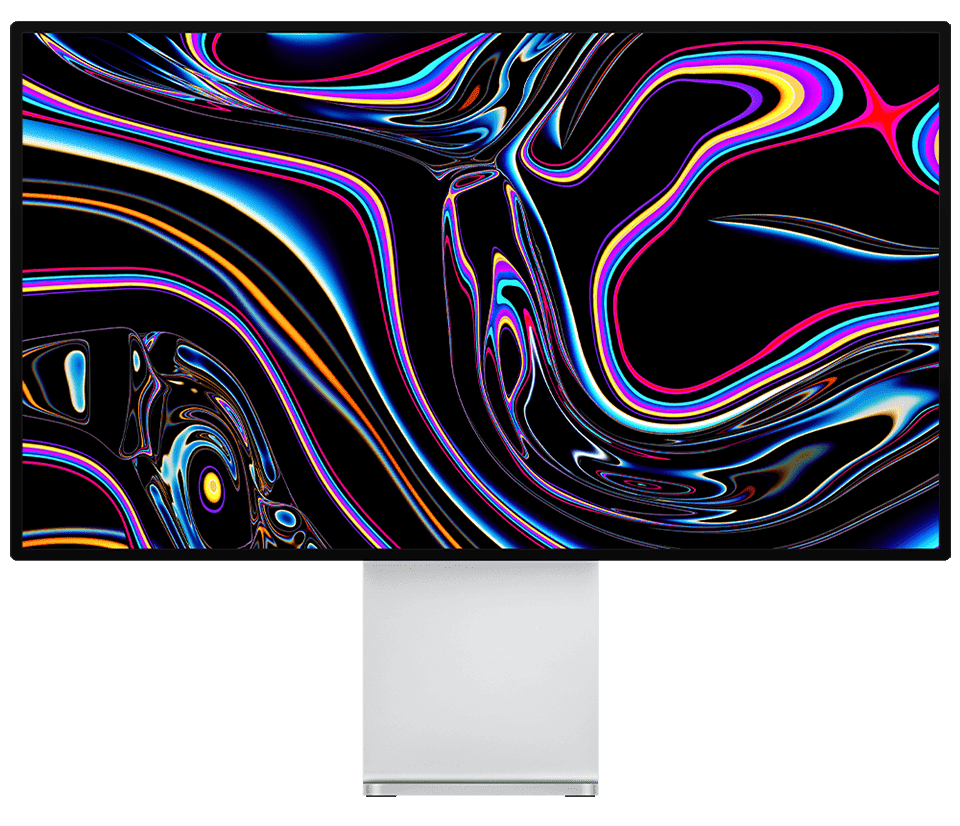

Pro Display XDR

(2019)

Release Date

2019.12

Color

Firmware: Display Firmware 1.22.26 ~ 4.2.37

32"

6K Retina display

Resolution:

6016 x 3384

PPI：

218

Color:

True Tone, wide color(P3)

Color Depth:

10-bit

Contrast ratio:

1000000:1

Viewing Angle:

89° horizontal; 89° vertical

Brightness:

500 nit

HDR Brightness:

1000(sustained)/1600 (peak) nit

Microphone:

None

Speaker:

None

Thunderbolt 3：

1 (40Gb/s)

USB-C：

3 (10Gbps)

No camera

Height: 41.2cm

Width: 71.8cm

Thickness: 2.7cm

Weight: 7.48 kg

Pro Stand optional

VESA mount adapter

Mac, macOS 10.15.2 or later

None

A1999

AppleDisplay1,1

Tech Specs

Preview

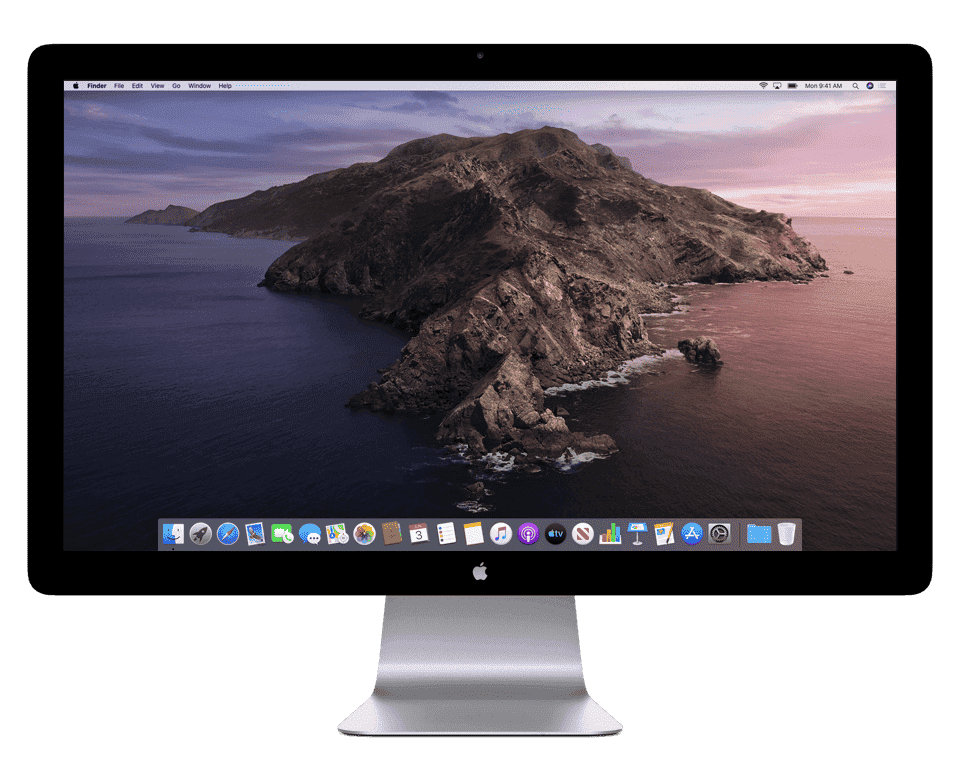

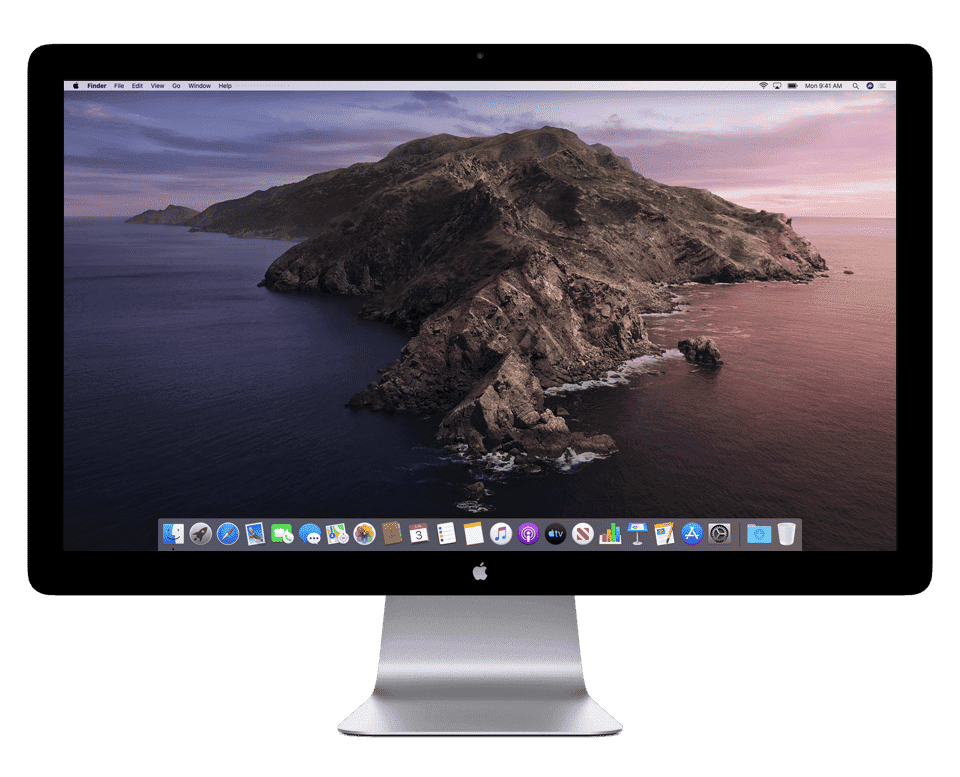

Apple Thunderbolt Display

(27-inch)

Release Date

2011.7

Color

27"

LED-backlit IPS display

Resolution:

2560 x 1440

PPI：

109

Color Depth:

8-bit

Contrast ratio:

1000:1

Viewing Angle:

178° horizontal; 178° vertical

Brightness:

375 nit

Microphone:

Built-in microphone

Speaker:

Built-in 2.1 speaker system

Thunderbolt：

1 (10Gbps)

USB 2.0：

FireWire 800：

Gigabit Ethernet：

Built-in FaceTime HD camera

Height: 49.1cm

Width: 65cm

Thickness: 20.7cm

Weight: 10.8 kg

VESA mount adapter kit included

Mac with Thunderbolt port, Mac OS X 10.6.8 or later

1 Kensington security slot

A1407

Tech Specs

Preview

LED Cinema Display

(27-inch)

Release Date

2010.7

Color

27"

LED-backlit IPS display

Resolution:

2560 x 1440

PPI：

109

Color Depth:

8-bit

Contrast ratio:

1000:1

Viewing Angle:

178° horizontal; 178° vertical

Brightness:

375 nit

Microphone:

Built-in microphone

Speaker:

Built-in 2.1 speaker system

Mini DisplayPort：

USB 2.0：

Built-in iSight camera

Height: 49.1cm

Width: 65cm

Thickness: 20.7cm

Weight: 10.7 kg

VESA mount adapter kit included

Mac with Mini DisplayPort, Mac OS X 10.6.4 or later

1 Kensington security slot

A1316

Tech Specs

Preview

LED Cinema Display

(24-inch)

Release Date

2008.10

Color

24"

LED-backlit IPS display

Resolution:

1920 x 1200

PPI：

Color Depth:

8-bit

Contrast ratio:

1000:1

Viewing Angle:

178° horizontal; 178° vertical

Brightness:

330 nit

Microphone:

Built-in microphone

Speaker:

Built-in 2.1 speaker system

Mini DisplayPort：

USB 2.0：

Built-in iSight camera

Height: 47.84cm

Width: 57.32cm

Thickness: 19.71cm

Weight: 9.5 kg

VESA mount adapter kit included

Mac with Mini DisplayPort

1 Kensington security slot

A1267

Tech Specs

Preview

Cinema Display

(30-inch DVI，2005 Late)

Release Date

2006.3

Color

30"

LCD display

Resolution:

2560 x 1600

PPI：

102

Color Depth:

8-bit

Contrast ratio:

700:1

Viewing Angle:

178° horizontal; 178° vertical

Brightness:

400 nit

Microphone:

None

Speaker:

None

Dual-link DVI：

USB 2.0：

FireWire 400：

No camera

Height: 54.3cm

Width: 68.8cm

Thickness: 21.5cm

Weight: 12.47 kg

VESA mount adapter included

Mac or PC with duallink DVI port

1 Kensington security slot

A1083

Preview

Cinema Display

(23-inch DVI，2005 Late)

Release Date

2006.8

Color

23"

LCD display

Resolution:

1920 x 1200

PPI：

Color Depth:

8-bit

Contrast ratio:

700:1

Viewing Angle:

178° horizontal; 178° vertical

Brightness:

400 nit

Microphone:

None

Speaker:

None

DVI：

USB 2.0：

FireWire 400：

No camera

Height: 45cm

Width: 53.6cm

Thickness: 18.7cm

Weight: 7.03 kg

VESA mount adapter included

Mac with DVI port, Mac OS X v10.2.8 or later

Windows PC, DVI port supporting all singlelink digital bandwidth

1 Kensington security slot

A1082

Preview

Cinema Display

(20-inch DVI，2005 Late)

Release Date

2006.8

Color

20"

LCD display

Resolution:

1680 x 1050

PPI：

Color Depth:

8-bit

Contrast ratio:

700:1

Viewing Angle:

178° horizontal; 178° vertical

Brightness:

300 nit

Microphone:

None

Speaker:

None

DVI：

USB 2.0：

FireWire 400：

No camera

Height: 41cm

Width: 47.1cm

Thickness: 17.4cm

Weight: 6.6 kg

VESA mount adapter included

Mac with DVI port, Mac OS X v10.2.8 or later

Windows PC, DVI port supporting all singlelink digital bandwidth

1 Kensington security slot

A1081

Preview

Cinema Display

(30-inch DVI)

Release Date

2004.6

Color

30"

LCD display

Resolution:

2560 x 1600

PPI：

102

Color Depth:

8-bit

Contrast ratio:

400:1

Viewing Angle:

170° horizontal; 170° vertical

Brightness:

270 nit

Microphone:

None

Speaker:

None

Dual-link DVI：

USB 2.0：

FireWire 400：

No camera

Height: 54.3cm

Width: 68.8cm

Thickness: 21.5cm

Weight: 12.47 kg

VESA mount adapter included

Mac or PC with duallink DVI port

1 Kensington security slot

A1083

Preview

Cinema Display

(23-inch DVI)

Release Date

2004.6

Color

23"

LCD display

Resolution:

1920 x 1200

PPI：

Color Depth:

8-bit

Contrast ratio:

400:1

Viewing Angle:

170° horizontal; 170° vertical

Brightness:

270 nit

Microphone:

None

Speaker:

None

DVI：

USB 2.0：

FireWire 400：

No camera

Height: 45cm

Width: 53.6cm

Thickness: 18.7cm

Weight: 7.03 kg

VESA mount adapter included

Mac with DVI port, Mac OS X v10.2.8 or later

Windows PC, DVI port supporting all singlelink digital bandwidth

1 Kensington security slot

A1082

Preview

Cinema Display

(20-inch DVI)

Release Date

2004.6

Color

20"

LCD display

Resolution:

1680 x 1050

PPI：

Color Depth:

8-bit

Contrast ratio:

400:1

Viewing Angle:

170° horizontal; 170° vertical

Brightness:

250 nit

Microphone:

None

Speaker:

None

DVI：

USB 2.0：

FireWire 400：

No camera

Height: 41cm

Width: 47.1cm

Thickness: 17.4cm

Weight: 6.6 kg

VESA mount adapter included

Mac with DVI port, Mac OS X v10.2.8 or later

Windows PC, DVI port supporting all singlelink digital bandwidth

1 Kensington security slot

A1081

Preview

Apple Cinema Display

(20-inch)

Release Date

2003.1

Color

20"

LCD display

Resolution:

1680 x 1050

PPI：

Color Depth:

8-bit

Contrast ratio:

350:1

Viewing Angle:

170° horizontal; 170° vertical

Brightness:

230 nit

Microphone:

None

Speaker:

None

Apple Display Connector：

USB：

No camera

Height: 43.9cm

Width: 54.2cm

Thickness: 17.6cm

Weight: 8.6 kg

Power Mac G4 or Power Mac G4 Cube with ADC port

PowerBook G4 with DVI port and Apple DVI to ADC Adapter

None

A1038

Preview

Apple Cinema HD Display

Release Date

2002.3

Color

23"

LCD display

Resolution:

1920 x 1200

PPI：

Color Depth:

8-bit

Contrast ratio:

350:1

Viewing Angle:

170° horizontal; 170° vertical

Brightness:

200 nit

Microphone:

None

Speaker:

None

Apple Display Connector：

USB：

No camera

Height: 48.8cm

Width: 61.5cm

Thickness: 18.5cm

Weight: 11.5 kg

Power Mac G4 or Power Mac G4 Cube with ADC port

PowerBook G4 with DVI port, Apple DVI to ADC Adapter, Mac OS X v10.1.3 or later, or Mac OS 9.2.2

None

M8536

Preview

Apple Studio Display

(17-inch LCD)

Release Date

2001.5

Color

17"

LCD display

Resolution:

1280 x 1024

Color Depth:

8-bit

Contrast ratio:

350:1

Viewing Angle:

170° horizontal; 170° vertical

Brightness:

200 nit

Microphone:

None

Speaker:

None

Apple Display Connector：

USB：

No camera

Height: 43.9cm

Width: 44.7cm

Thickness: 17.5cm

Weight: 6.6 kg

Power Mac G4 or Power Mac G4 Cube with ADC port

PowerBook G4 with DVI port and Apple DVI to ADC Adapter

None

M7649

Preview

Apple Studio Display

(17-inch ADC)

Release Date

2000.7

Color

17"

CRT (Diamondtron)

Resolution:

1600 x 1200

PPI：

Color Depth:

8-bit

Brightness:

- nit

Microphone:

None

Speaker:

None

ADC：

USB：

No camera

Height: 47.5cm

Width: 43.2cm

Thickness: 44.4cm

Weight: 20.7 kg

Power Mac G4 or Power Mac G4 Cube with ADC port

None

M7768

Preview

Apple Studio Display

(LCD)

Release Date

2000.7

Color

15"

LCD display

Resolution:

1024 x 768

Color Depth:

8-bit

Contrast ratio:

300:1

Viewing Angle:

120° horizontal; 90° vertical

Brightness:

230 nit

Microphone:

None

Speaker:

None

ADC：

USB：

No camera

Height: 40.1cm

Width: 40.9cm

Thickness: 17cm

Weight: 5.2 kg

Power Mac G4 or Power Mac G4 Cube with ADC port

PowerBook G4 with DVI port and Apple DVI to ADC Adapter

None

M2454

Preview

Apple Cinema Display

Release Date

1999.9

Color

22"

LCD display

Resolution:

1600 x 1024

PPI：

Color Depth:

8-bit

Contrast ratio:

300:1

Viewing Angle:

160° horizontal; 160° vertical

Brightness:

180 nit

Microphone:

None

Speaker:

None

DVI or ADC：

USB：

No camera

Height: 48cm

Width: 58.7cm

Thickness: 31cm

Weight: 11.4 kg

Power Mac with DVI or ADC port

None

M5662

Preview

Apple Studio Display

(21-inch CRT)

Release Date

1999.1

Color

21"

CRT (Trinitron)

Resolution:

1600 x 1200

PPI：

Color Depth:

8-bit

Brightness:

- nit

Microphone:

None

Speaker:

None

VGA：

USB：

No camera

Height: 56.9cm

Width: 57.4cm

Thickness: 55cm

Weight: 35 kg

1999 Power Macintosh G3, Mac OS 8.5 or later

None

M6204

Preview

Apple Studio Display

(17-inch CRT)

Release Date

1999.1

Color

17"

CRT (Diamondtron)

Resolution:

1600 x 1200

PPI：

Color Depth:

8-bit

Brightness:

- nit

Microphone:

None

Speaker:

None

VGA：

No camera

Height: 42.7cm

Width: 41.1cm

Thickness: 44.7cm

Weight: 20.8 kg

Power Mac, Mac OS 8.0 or later

None

M6221

Preview

Apple Studio Display

15-inch

Release Date

1998.5

Color

15"

LCD display

Resolution:

1024 x 768

PPI：

Color Depth:

8-bit

Contrast ratio:

200:1

Viewing Angle:

120° horizontal; 90° vertical

Brightness:

180/200 nit

Microphone:

None

Speaker:

None

DB-15/VGA/DVI：

ADB/USB：

S-Video/RCA：

No camera

Height: 38.1cm

Width: 39.9cm

Thickness: 24.9cm

Weight: 5.5 kg

Desktop stand or picture-frame stand

System 7.5 (Rev. A), Mac OS 8.0 (Rev. B), Mac OS 8.6 (Rev. C)

None

M4551

M7613
