How to compare different eMac models?

You can use MacDB's comprehensive comparison table to see differences in chip performance, battery life, and display specs across all eMac generations.

What is the latest eMac model parameter?

Detailed specifications comparison for eMac models for the education market. Compare CRT sizes and resolutions, PowerPC G4 specs, drive types, FireWire/USB ports, integrated speakers & camera, durable classroom design, Mac OS 9/OS X compatibility, and historical strategy position.

eMac Specs History

Horizontal Scroll: Shift + Mouse Wheel

Updated: 2025/12/19

Device Count: 5

Compare

Fullscreen

Zoom(100%)

Dark Mode

中文站点

Model	Basic			Display		Connectivity		Firmware / Power		Other
Model	Basic Info	Chip / Memory / GPU	Chip Process	Screen Details	External Resolution	Ports	Connectivity	Firmware	Power	Size & Weight	Description	Model Numbers	Model ID	Docs

Preview

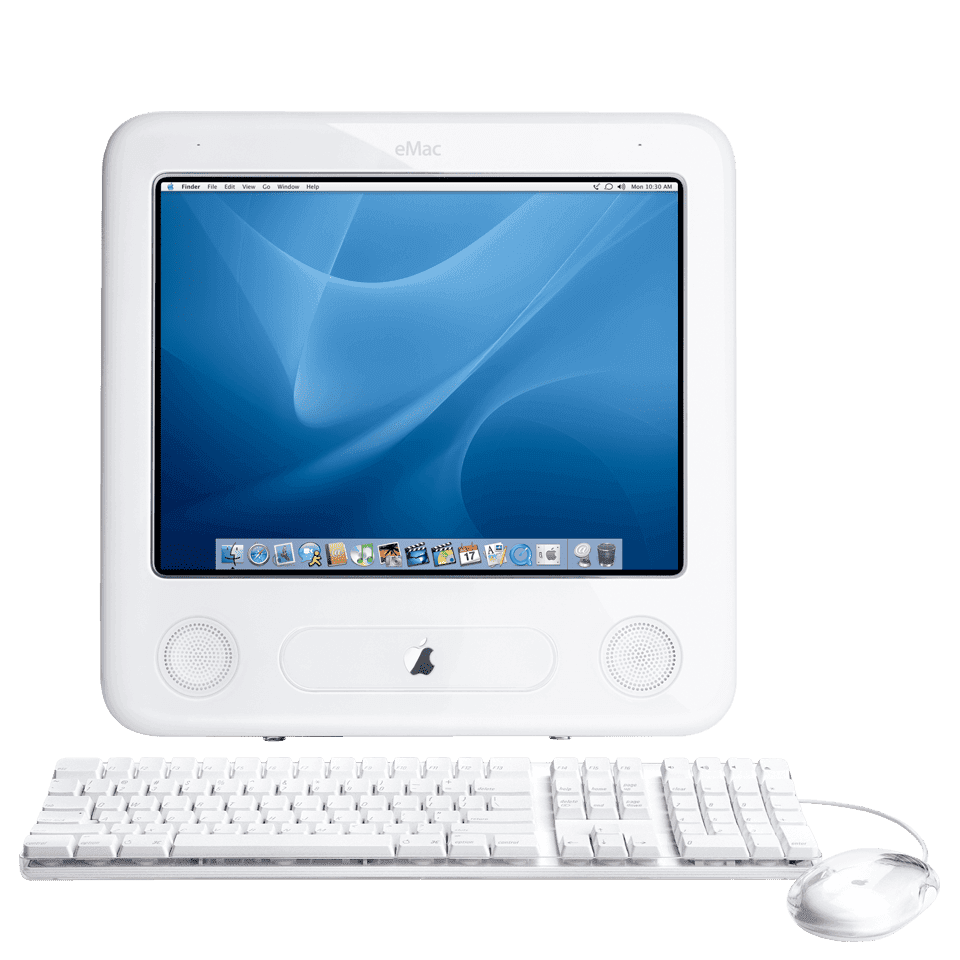

eMac

(2005)

Release Date

2005.05

OS Support

OS X 10.4→OS X 10.5.8

Color

1-Core PowerPC

PowerPC G4 (7447/7457)

Graphics:

ATI Radeon 9600

RAM:

256MB512MB1GB2GB

Storage:

80GB160GB

Process:

130 nm

17"

CRT (16-inch viewable, 0.25mm dot pitch)

Resolution:

1280 x 960

Up to 1280 x 960 pixels @ 75 Hz

USB-A 2.0：

3 (480 Mbit/s)

Firewire 400：

2 (400 Mbit/s)

10/100BASE-T Ethernet：

Mini-VGA：

56K V.92 modem：

Built-in speakers / Built-in microphone：

Keyboard:

Apple Keyboard / Apple Mouse

Wi-Fi:

Optional AirPort Extreme card (802.11b/g)

Bluetooth:

Optional internal Bluetooth module

Keyboard:

Apple Keyboard / Apple Mouse

Power:

230 W

Firmware Support: Open Firmware

Drive Interface: Ultra ATA/100 (ATA-6)

Expansion Slots: None

Power: 230 W

Backup Battery: 3.6 V 850 mAh lithium battery (922-4028)

Line Voltage: 100-120V AC or 200-240V AC (depending on country)

Height: 40.6cm

Width: 40.6cm

Thickness: 43.3cm

Weight: 22.7kg

The eMac (2005) was essentially a speed-bump of the eMac (USB 2.0). Along with a 1.42 GHz G4 processor, it increased baseline memory and the high-end model included a faster dual-layer SuperDrive, with both models receiving larger hard drives and faster graphics. The low-end model offered an 80 GB hard drive, 256 MB of RAM, and a Combo drive for $799, while the high-end offered a 160 GB hard drive, 512 MB of RAM, and a dual-layer SuperDrive for $999.

A1002

PowerMac6,4

Preview

eMac

(USB 2.0)

Release Date

2004.04

OS Support

OS X 10.3.3→OS X 10.5.8

Color

1-Core PowerPC

PowerPC G4 (7447/7457)

Graphics:

ATI Radeon 9200

RAM:

256MB512MB1GB2GB

Storage:

40GB80GB

Process:

130 nm

17"

CRT (16-inch viewable, 0.25mm dot pitch)

Resolution:

1280 x 960

Up to 1280 x 960 pixels @ 75 Hz

USB-A 2.0：

3 (480 Mbit/s)

Firewire 400：

2 (400 Mbit/s)

10/100BASE-T Ethernet：

Mini-VGA：

56K V.92 modem：

Built-in speakers / Built-in microphone：

Keyboard:

Apple Keyboard / Apple Mouse

Wi-Fi:

Optional AirPort Extreme card (802.11b/g)

Bluetooth:

Optional internal Bluetooth module

Keyboard:

Apple Keyboard / Apple Mouse

Power:

230 W

Firmware Support: Open Firmware

Drive Interface: Ultra ATA/100 (ATA-6)

Expansion Slots: None

Power: 230 W

Backup Battery: 3.6 V 850 mAh lithium battery (922-4028)

Line Voltage: 100-120V AC or 200-240V AC (depending on country)

Height: 40.6cm

Width: 40.6cm

Thickness: 43.3cm

Weight: 22.7kg

The eMac (USB 2.0) introduced in April 2004 was essentially a speed-bump of the eMac (ATI Graphics). Alongside a 1.25 GHz G4 processor, it upgraded the 3 USB ports to USB 2.0, added baseline RAM, faster memory, a faster ATA bus, faster optical drives, and faster graphics. The low-end configuration offered a 40 GB hard drive and Combo drive for $799. The high-end featured an 80 GB hard drive and SuperDrive for $999.

A1002

PowerMac6,4

Preview

eMac

(1.0 GHz G4)

Release Date

2003.10

OS Support

OS X 10.3→OS X 10.5.8

Color

1-Core PowerPC

PowerPC G4 (7455 v3.3)

Graphics:

ATI Radeon 7500

RAM:

256MB512MB1GB

Storage:

40GB80GB

Process:

180 nm

17"

CRT (16-inch viewable, 0.25mm dot pitch)

Resolution:

1280 x 960

Up to 1280 x 960 pixels @ 75 Hz

USB-A 1.1：

3 (12 Mbit/s)

Firewire 400：

2 (400 Mbit/s)

10/100BASE-T Ethernet：

Mini-VGA：

56K V.92 modem：

Optional

Built-in speakers / Built-in microphone：

Keyboard:

Apple Keyboard / Apple Mouse

Wi-Fi:

Optional AirPort Extreme card (802.11b/g)

Bluetooth:

Keyboard:

Apple Keyboard / Apple Mouse

Power:

170 W

Firmware Support: Open Firmware

Drive Interface: Ultra ATA/66 (ATA-5)

Expansion Slots: None

Power: 170 W

Backup Battery: 3.6 V 850 mAh lithium battery (922-4028)

Line Voltage: 100V AC or 220V AC (depending on country)

Height: 40.6cm

Width: 40.6cm

Thickness: 43.3cm

Weight: 22.7kg

The eMac was further improved in October 2003, with the 800 MHz model discontinued and the 1 GHz model price reduced, alongside a lower price for the high-end 1 GHz model equipped with a SuperDrive. It was one of the least expensive computers from a tier-1 manufacturer to burn DVDs at the time and the last eMac revision capable of running Mac OS 9 natively, making it the last Macintosh model Apple retained this capability for.

A1002

PowerMac4,4

Preview

eMac

(ATI Graphics)

Release Date

2003.05

OS Support

OS X 10.2.5→OS X 10.5.8

Color

1-Core PowerPC

PowerPC G4 (7450 v2.1 or 7455 v3.3)

Graphics:

ATI Radeon 7500

RAM:

256MB512MB1GB

Storage:

40GB60GB80GB

Process:

180 nm

17"

CRT (16-inch viewable, 0.25mm dot pitch)

Resolution:

1280 x 960

Up to 1280 x 960 pixels @ 75 Hz

USB-A 1.1：

3 (12 Mbit/s)

Firewire 400：

2 (400 Mbit/s)

10/100BASE-T Ethernet：

Mini-VGA：

56K V.92 modem：

Optional

Built-in speakers / Built-in microphone：

Keyboard:

Apple Keyboard / Apple Mouse

Wi-Fi:

Optional AirPort Extreme card (802.11b/g)

Bluetooth:

Keyboard:

Apple Keyboard / Apple Mouse

Power:

170 W

Firmware Support: Open Firmware

Drive Interface: Ultra ATA/66 (ATA-5)

Expansion Slots: None

Power: 170 W

Backup Battery: 3.6 V 850 mAh lithium battery (922-4028)

Line Voltage: 100V AC or 220V AC (depending on country)

Height: 40.6cm

Width: 40.6cm

Thickness: 43.3cm

Weight: 22.7kg

The eMac released in May 2003 was essentially a speed-bump over the existing eMac line, featuring faster ATI Radeon 7500 graphics and support for AirPort Extreme. It was available in three configurations priced at $799, $999, and $1299.

A1002

PowerMac4,4

Preview

eMac

(2002)

Release Date

2002.04

OS Support

OS X 10.1.4→OS X 10.4.11

Color

1-Core PowerPC

PowerPC G4 (7450 v2.1)

Graphics:

NVIDIA GeForce2 MX

RAM:

128MB256MB1GB

Storage:

40GB60GB

Process:

180 nm

17"

CRT (16-inch viewable, 0.25mm dot pitch)

Resolution:

1280 x 960

Up to 1280 x 960 pixels @ 75 Hz

USB-A 1.1：

3 (12 Mbit/s)

Firewire 400：

2 (400 Mbit/s)

10/100BASE-T Ethernet：

Mini-VGA：

56K V.90 modem：

Optional

Built-in speakers / Built-in microphone：

Keyboard:

Apple Keyboard / Apple Pro Mouse

Wi-Fi:

Optional AirPort card (802.11b)

Bluetooth:

Keyboard:

Apple Keyboard / Apple Pro Mouse

Power:

170 W

Firmware Support: Open Firmware

Drive Interface: Ultra ATA/66 (ATA-5)

Expansion Slots: None

Power: 170 W

Backup Battery: 3.6 V 850 mAh lithium battery (922-4028)

Line Voltage: 100V AC or 220V AC (depending on country)

Height: 40.6cm

Width: 40.6cm

Thickness: 43.3cm

Weight: 22.7kg

The eMac brought a G4 processor and a 17-inch display to the classic iMac form factor. Initially intended for education users only, it came in two configurations: a 32x CD-ROM model for $999 and a CD-RW/DVD-ROM Combo model for $1199. Available to the consumer market in June 2002, it was speed-bumped and upgraded in August, making a Combo drive standard on the $999 model and adding an 800 MHz model with a 60 GB hard drive and SuperDrive for $1499.

A1002

PowerMac4,4
