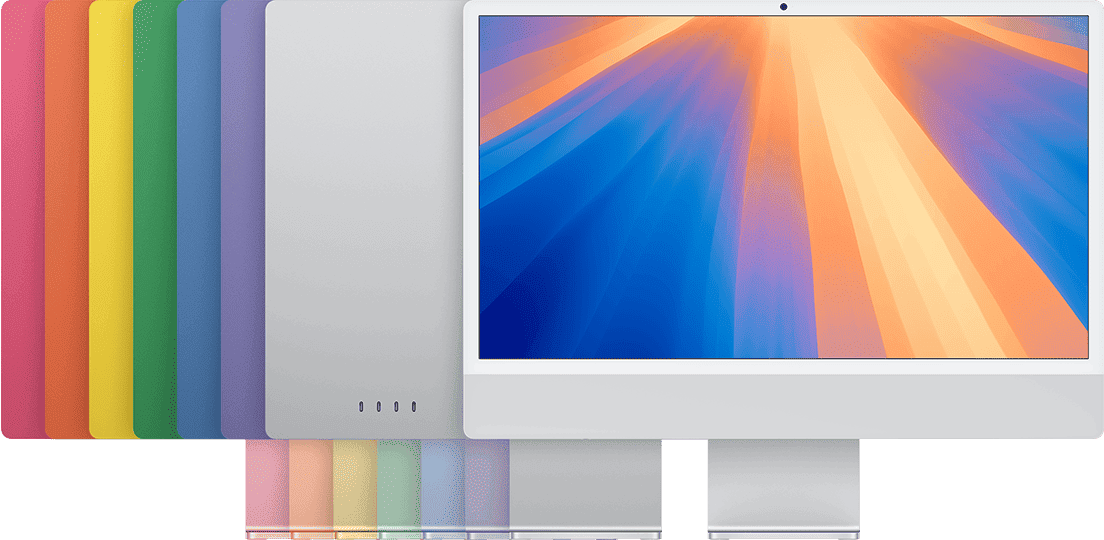

iMac(24-inch, 2024, 4 ports)
Preview
Preview
iMac
(24-inch, 2024, 4 ports)
Release Date
2024.10.28
OS Support
macOS 15→Latest
Color
M4 (4P+6E Core)
P-Core:
4.41GHz × 4
E-Core:
2.89GHz × 6
GPU:
Apple G16G × 10
RAM:
16GB
24GB
32GB
Unified Memory:
16GB24GB32GB
Storage:
256GB512GB1TB2TB
Process:
TSMC N3E
Neural Engine:
16-core 38 TOPS
252024"218ppi44804.5K Retina display500nit4.44kg
24"
4.5K Retina display
Resolution:
4480 x 2520
PPI：
218
Color:
True Tone, Wide color (P3)
Thunderbolt 4 (up to 40Gb/s)：
4 (40Gb/s)
Gigabit Ethernet x1 (Optional)：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
Power:
143W
Height: 54.7cm
Width: 46.1cm
Thickness: 14.7cm
Weight: 4.44kg
A3137
/
Mac16,3
Tech Specs Repair Manual
iMac(24-inch, 2024, 2 ports)
Preview
Preview
iMac
(24-inch, 2024, 2 ports)
Release Date
2024.10.28
OS Support
macOS 15→Latest
Color
M4 (4P+4E Core)
P-Core:
4.41GHz × 4
E-Core:
2.89GHz × 4
GPU:
Apple G16G × 8
RAM:
16GB
24GB
Unified Memory:
16GB24GB
Storage:
256GB512GB1TB
Process:
TSMC N3E
Neural Engine:
16-core 38 TOPS
252024"218ppi44804.5K Retina display500nit4.42kg
24"
4.5K Retina display
Resolution:
4480 x 2520
PPI：
218
Color:
True Tone, Wide color (P3)
Thunderbolt 4 (up to 40Gb/s)：
2 (40Gb/s)
Gigabit Ethernet x1 (Optional)：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
Power:
143W
Height: 54.7cm
Width: 46.1cm
Thickness: 14.7cm
Weight: 4.42kg
A3247
/
Mac16,2
Tech Specs Repair Manual

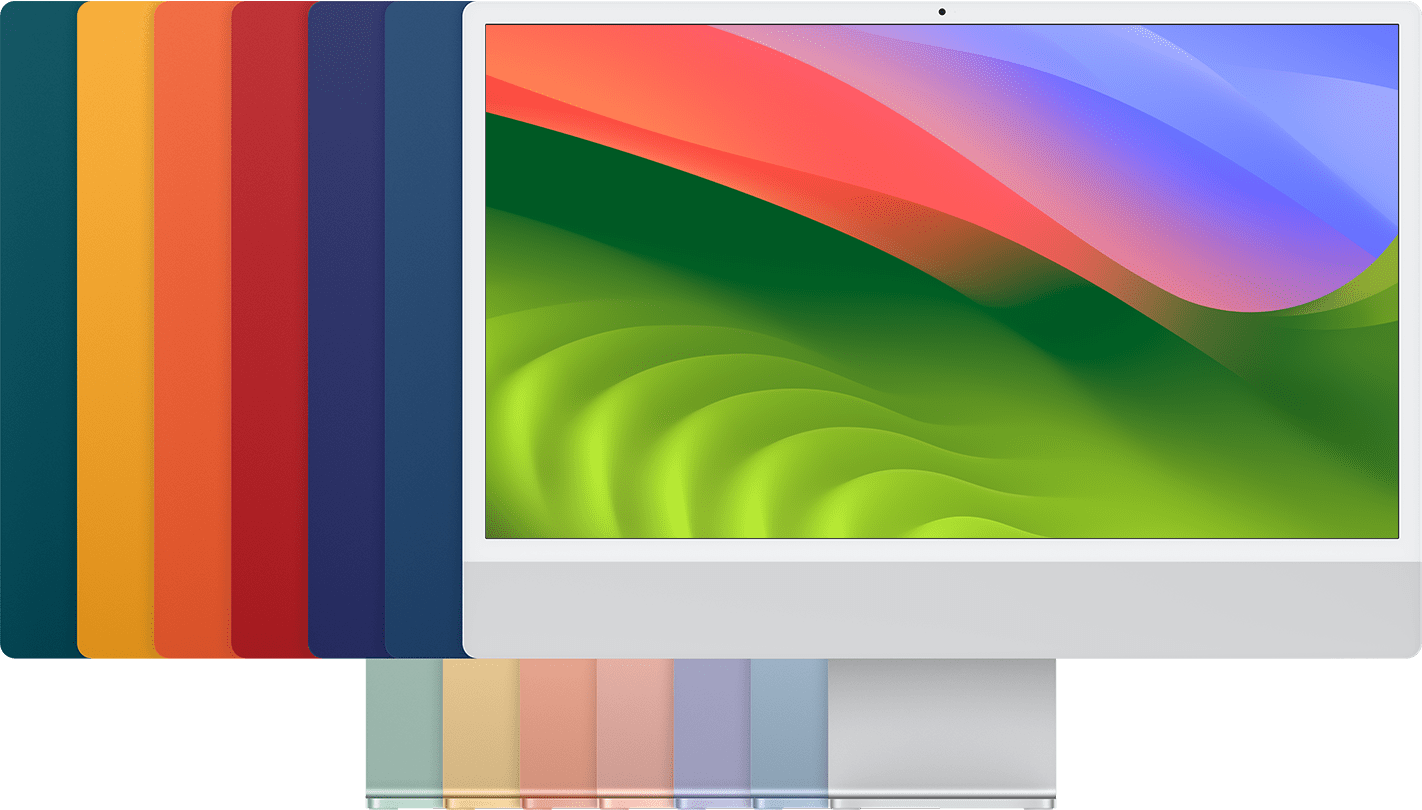

iMac(24-inch, 2023, 4 ports)
Preview
Preview
iMac
(24-inch, 2023, 4 ports)
Release Date
2023.10.31
OS Support
macOS 13→Latest
Color
M3 (4P+4E Core)
P-Core:
4.05GHz × 4
E-Core:
2.75GHz × 4
GPU:
Apple G15G × 10
RAM:
8GB
16GB
24GB
Unified Memory:
8GB16GB24GB
Storage:
256GB512GB1TB2TB
Process:
TSMC N3B
Neural Engine:
16-core 18 TOPS
252024"218ppi44804.5K Retina display500nit4.48kg
24"
4.5K Retina display
Resolution:
4480 x 2520
PPI：
218
Color:
True Tone, Wide color (P3)
Thunderbolt 3 (up to 40Gb/s)：
2 (40Gb/s)
USB-C (up to 10Gbps)：
2 (10Gbps)
Gigabit Ethernet：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
Power:
143W
Height: 54.7cm
Width: 46.1cm
Thickness: 14.7cm
Weight: 4.48kg
A2873
/
Mac15,5
Tech Specs Repair Manual

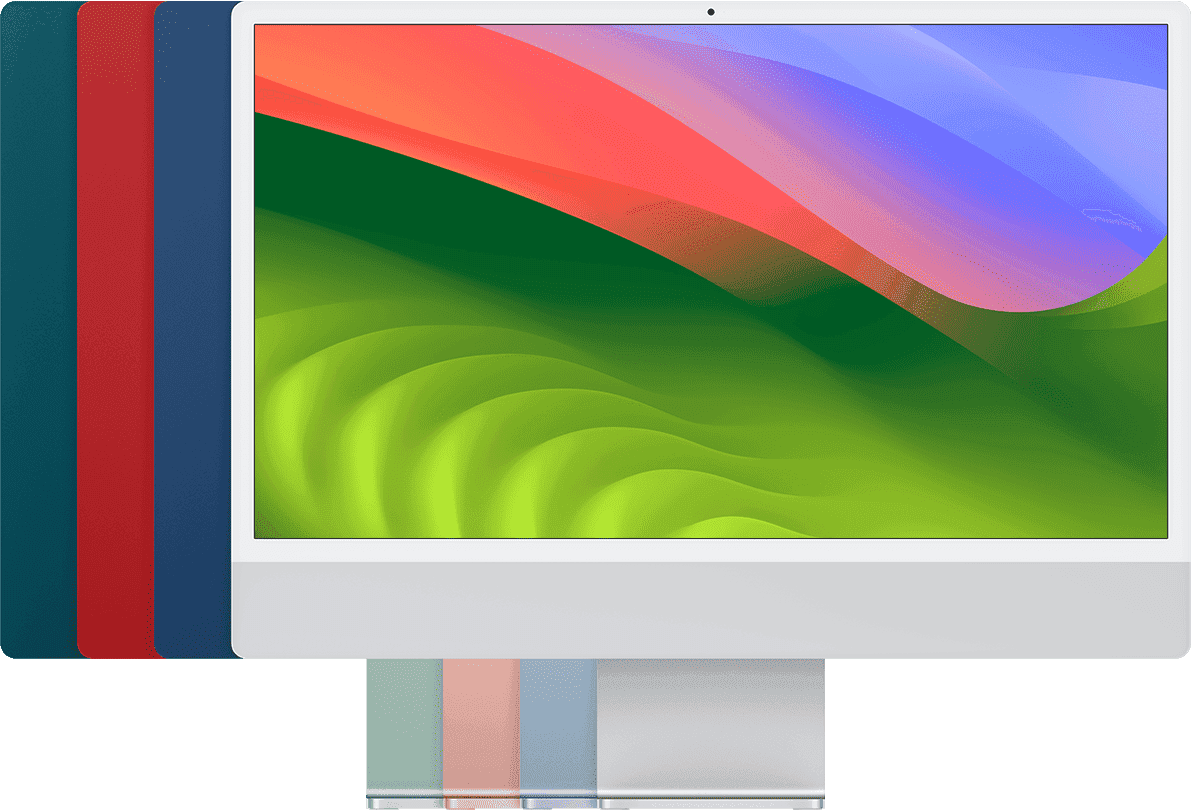

iMac(24-inch, 2023, 2 ports)
Preview
Preview
iMac
(24-inch, 2023, 2 ports)
Release Date
2023.10.31
OS Support
macOS 13→Latest
Color
M3 (4P+4E Core)
P-Core:
4.05GHz × 4
E-Core:
2.75GHz × 4
GPU:
Apple G15G × 8
RAM:
8GB
16GB
24GB
Unified Memory:
8GB16GB24GB
Storage:
256GB512GB1TB
Process:
TSMC N3B
Neural Engine:
16-core 18 TOPS
252024"218ppi44804.5K Retina display500nit4.43kg
24"
4.5K Retina display
Resolution:
4480 x 2520
PPI：
218
Color:
True Tone, Wide color (P3)
Thunderbolt 3 (up to 40Gb/s)：
2 (40Gb/s)
Gigabit Ethernet：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
Power:
143W
Height: 54.7cm
Width: 46.1cm
Thickness: 14.7cm
Weight: 4.43kg
A2874
/
Mac15,4
Tech Specs Repair Manual

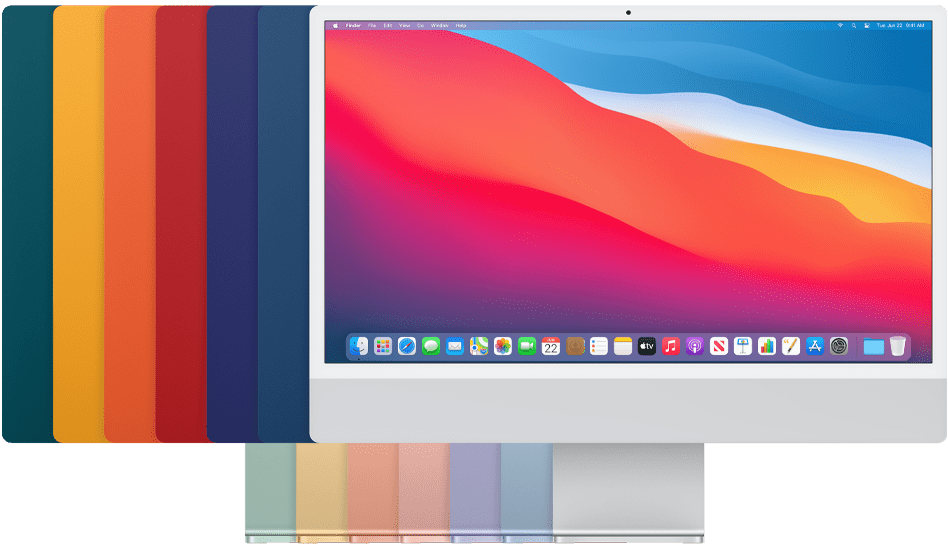

iMac(24-inch, M1, 2021, 4 ports)
Preview
Preview
iMac
(24-inch, M1, 2021, 4 ports)
Release Date
2021.05.22
OS Support
macOS 11→Latest
Color
M1 (4P+4E Core)
P-Core:
3.20GHz × 4
E-Core:
2.06GHz × 4
GPU:
Apple G13G × 8
RAM:
8GB
16GB
Unified Memory:
8GB16GB
Storage:
256GB512GB1TB2TB
Process:
TSMC N5
Neural Engine:
16-core 11 TOPS
252024"218ppi44804.5K Retina display500nit4.46/4.48kg
24"
4.5K Retina display
Resolution:
4480 x 2520
PPI：
218
Color:
True Tone, Wide color (P3)
Thunderbolt 3 (up to 40Gb/s)：
2 (40Gb/s)
USB-C (up to 10Gbps)：
2 (10Gbps)
Gigabit Ethernet：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ax Wi-Fi 6
Bluetooth:
Bluetooth 5.0
Power:
143W
Height: 54.7cm
Width: 46.1cm
Thickness: 14.7cm
Weight: 4.46/4.48kg
A2438
/
iMac21,1
Tech Specs Repair Manual
iMac(24-inch, M1, 2021, 2 ports)
Preview
Preview
iMac
(24-inch, M1, 2021, 2 ports)
Release Date
2021.05.22
OS Support
macOS 11→Latest
Color
M1 (4P+4E Core)
P-Core:
3.20GHz × 4
E-Core:
2.06GHz × 4
GPU:
Apple G13G × 7
RAM:
8GB
16GB
Unified Memory:
8GB16GB
Storage:
256GB512GB1TB
Process:
TSMC N5
Neural Engine:
16-core 11 TOPS
252024"218ppi44804.5K Retina display500nit4.46/4.48kg
24"
4.5K Retina display
Resolution:
4480 x 2520
PPI：
218
Color:
True Tone, Wide color (P3)
Thunderbolt 3 (up to 40Gb/s)：
2 (40Gb/s)
Gigabit Ethernet：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ax Wi-Fi 6
Bluetooth:
Bluetooth 5.0
Power:
143W
Height: 54.7cm
Width: 46.1cm
Thickness: 14.7cm
Weight: 4.46/4.48kg
A2439
/
iMac21,2
Tech Specs Repair Manual
iMac(Retina 5K, 27-inch, 2020)
Preview
Preview
iMac
(Retina 5K, 27-inch, 2020)
Release Date
2020.08.05
OS Support
macOS 10.15→Latest
Color
Intel 6-Core i5
i5-10500
Intel 6-Core i5
i5-10600
Intel 8-Core i7
i7-10700K
Intel 10-Core i9
i9-10900
Graphics:
AMD Radeon Pro 5300/5500XT/5700/5700XT
RAM:
8GB16GB32GB64GB128GB
Storage:
256GB512GB1TB2TB4TB8TB
Process:
Intel 14nm (Comet Lake)
288027"218ppi51205K Retina display500nit8.92kg
27"
5K Retina display
Resolution:
5120 x 2880
PPI：
218
Color:
True Tone, Wide color (P3)
Thunderbolt 3 (up to 40Gb/s)：
2 (40Gb/s)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet x1 (Optional 10Gb)：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 5.0
Height: 65cm
Width: 51.6cm
Thickness: 20.3cm
Weight: 8.92kg
A2115
Apple T2 Security Chip
iMac20,1
iMac20,2
Tech Specs Repair Manual
iMac(Retina 5K, 27-inch, 2019)
Preview
Preview
iMac
(Retina 5K, 27-inch, 2019)
Release Date
2019.03.20
OS Support
macOS 10.14→macOS 15
Color
Intel 6-Core i5
i5-8500
Intel 6-Core i5
i5-8600
Intel 6-Core i5
i5-9600K
Intel 8-Core i9
i9-9900K
Graphics:
Radeon Pro 570X/575X/580X
RAM:
8GB16GB32GB64GB
Storage:
256GB512GB1TB2TB
Process:
Intel 14nm (Coffee Lake)
288027"218ppi51205K Retina display500 nitsnit9.42kg
27"
5K Retina display
Resolution:
5120 x 2880
PPI：
218
Color:
Wide color display (P3)
Thunderbolt 3 (up to 40Gb/s)：
2 (40Gb/s)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
Height: 51.6cm
Width: 65cm
Thickness: 20.3cm
Weight: 9.42kg
A2115
Apple T2 Security Chip
iMac19,1
Tech Specs
iMac(Retina 4K, 21.5-inch, 2019)
Preview
Preview
iMac
(Retina 4K, 21.5-inch, 2019)
Release Date
2019.03.20
OS Support
macOS 10.14→macOS 12
Color
Intel 4-Core i3
i3-8100
Intel 6-Core i5
i5-8500
Intel 6-Core i7
i7-8700
Graphics:
AMD Radeon Pro 555X/560X
RAM:
8GB16GB32GB
Storage:
256GB512GB1TB
Process:
Intel 14nm (Coffee Lake)
230421.5"219ppi40964K Retina display500nit5.44kg
21.5"
4K Retina display
Resolution:
4096 x 2304
PPI：
219
Color:
Wide color display (P3)
Thunderbolt 3 (up to 40Gb/s)：
2 (40Gb/s)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
Height: 52.8cm
Width: 45cm
Thickness: 17.5cm
Weight: 5.44kg
A2116
Apple T2 Security Chip
iMac19,2
Tech Specs
iMac Pro(2017)
Preview
Preview
iMac Pro
(2017)
Release Date
2017.06.06
OS Support
macOS 10.13→macOS 15
Color
8-Core Intel Xeon W
Intel Xeon W-2140B
10-Core Intel Xeon W
Intel Xeon W-2150B
14-Core Intel Xeon W
Intel Xeon W-2170B
18-Core Intel Xeon W
Intel Xeon W-2190B
Graphics:
Radeon Pro Vega 56/64
RAM:
32GB64GB128GB256GB
Storage:
1TB2TB4TB
Process:
Intel 14nm (Skylake)
288027"218ppi51205K Retina display500 nitsnit9.7kg
27"
5K Retina display
Resolution:
5120 x 2880
PPI：
218
Color:
Wide color display (P3)
Thunderbolt 3 (up to 40Gb/s)：
4 (40Gb/s)
USB-A 3.0：
4 (5Gbps)
10Gb Ethernet：
1
SDXC card slot (UHS-II)：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
Height: 51.6cm
Width: 65cm
Thickness: 20.3cm
Weight: 9.7kg
A1862
Apple T2 Security Chip
iMacPro1,1
Tech Specs
iMac(Retina 5K, 27-inch, 2017)
Preview
Preview
iMac
(Retina 5K, 27-inch, 2017)
Release Date
2017.06.06
OS Support
macOS 10.12→macOS 13
Color
Intel 4-Core i5
i5-7500
Intel 4-Core i5
i5-7600
Intel 4-Core i5
i5-7600K
Intel 4-Core i7
i7-7700K
Graphics:
Radeon Pro 570/575/580
RAM:
8GB16GB32GB64GB
Storage:
256GB512GB1TB2TB
Process:
Intel 14nm (Kaby Lake)
288027"218ppi51205K Retina display500 nitsnit9.44kg
27"
5K Retina display
Resolution:
5120 x 2880
PPI：
218
Color:
Wide color display (P3)
Thunderbolt 3 (up to 40Gb/s)：
2 (40Gb/s)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
Height: 51.6cm
Width: 65cm
Thickness: 20.3cm
Weight: 9.44kg
A1419
/
iMac18,3
Tech Specs
iMac(Retina 4K, 21.5-inch, 2017)
Preview
Preview
iMac
(Retina 4K, 21.5-inch, 2017)
Release Date
2017.06.06
OS Support
macOS 10.12→macOS 13
Color
Intel 4-Core i5
i5-7400
Intel 4-Core i5
i5-7500
Intel 4-Core i7
i7-7700
Graphics:
Radeon Pro 555/560
RAM:
8GB16GB32GB
Storage:
256GB512GB1TB
Process:
Intel 14nm (Kaby Lake)
230421.5"219ppi40964K Retina display500 nitsnit5.66kg
21.5"
4K Retina display
Resolution:
4096 x 2304
PPI：
219
Color:
Wide color display (P3)
Thunderbolt 3 (up to 40Gb/s)：
2 (40Gb/s)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
Height: 45cm
Width: 52.8cm
Thickness: 17.5cm
Weight: 5.66kg
A1418
/
iMac18,2
Tech Specs
iMac(21.5-inch, 2017)
Preview
Preview
iMac
(21.5-inch, 2017)
Release Date
2017.06.06
OS Support
macOS 10.12→macOS 13
Color
Intel 2-Core i5
i5-7360U
Graphics:
Intel Iris Plus Graphics 640
RAM:
8GB16GB
Storage:
256GB1TB
Process:
Intel 14nm (Kaby Lake)
108021.5"103ppi1920LED5.44kg
21.5"
LED
Resolution:
1920 x 1080
PPI：
103
Color:
sRGB
Thunderbolt 3 (up to 40Gb/s)：
2 (40Gb/s)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
Height: 45cm
Width: 52.8cm
Thickness: 17.5cm
Weight: 5.44kg
A1418
/
iMac18,1
Tech Specs
iMac(Retina 5K, 27-inch, Late 2015)
Preview
Preview
iMac
(Retina 5K, 27-inch, Late 2015)
Release Date
2015.10.14
OS Support
OS X 10.11→macOS 12
Intel 4-Core i5
i5-6500
Intel 4-Core i5
i5-6600
Intel 4-Core i7
i7-6700K
Graphics:
Intel® HD Graphics 530 + M380/M390/M395/M395X
RAM:
8GB16GB32GB
Storage:
256GB512GB1TB
Process:
Intel 14nm (Skylake)
288027"218ppi51205K Retina display9.54kg
27"
5K Retina display
Resolution:
5120 x 2880
PPI：
218
Color:
sRGB
Thunderbolt 2 (up to 20Gb/s)：
2 (20Gb/s)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
Height: 65cm
Width: 51.6cm
Thickness: 20.3cm
Weight: 9.54kg
A1419
-
iMac17,1
Tech Specs
iMac(Retina 4K, 21.5-inch, Late 2015)
Preview
Preview
iMac
(Retina 4K, 21.5-inch, Late 2015)
Release Date
2015.10.14
OS Support
OS X 10.11→macOS 12
Intel 4-Core i5
i5-5675R
Intel 4-Core i7
i7-5775R
Graphics:
Intel® Iris® Pro 6200
RAM:
8GB16GB
Storage:
512GB1TB2TB
Process:
Intel 14nm (Broadwell)
230421.5"219ppi4096LED5.68kg
21.5"
LED
Resolution:
4096 x 2304
PPI：
219
Color:
sRGB
Thunderbolt 2 (up to 20Gb/s)：
2 (20Gb/s)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
Height: 52.8cm
Width: 45cm
Thickness: 17.5cm
Weight: 5.68kg
A1418
-
iMac16,2
Tech Specs
iMac(21.5-inch, Late 2015)
Preview
Preview
iMac
(21.5-inch, Late 2015)
Release Date
2015.10.14
OS Support
OS X 10.11→macOS 12
Intel 2-Core i5
i5-5250U
Intel 2-Core i5
i5-5575R
Graphics:
Iris Pro 6000
RAM:
8GB16GB
Storage:
256GB1TB2TB
Process:
Intel 14nm (Broadwell)
108021.5"103ppi1920LED5.68kg
21.5"
LED
Resolution:
1920 x 1080
PPI：
103
Color:
sRGB
Thunderbolt 2 (up to 20Gb/s)：
2 (20Gb/s)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
Height: 52.8cm
Width: 45cm
Thickness: 17.5cm
Weight: 5.68kg
A1418
-
iMac16,1
Tech Specs
iMac(Retina 5K, 27-inch, Mid 2015)
Preview
Preview
iMac
(Retina 5K, 27-inch, Mid 2015)
Release Date
2015.05.20
OS Support
OS X 10.10→macOS 11
Intel 4-Core i5
i5-4590
Graphics:
Intel® HD Graphics 4600 + AMD Radeon R9 M290
RAM:
8GB16GB32GB
Storage:
256GB512GB1TB3TB
Process:
Intel 22nm (Haswell)
288027"218ppi51205K Retina display9.54kg
27"
5K Retina display
Resolution:
5120 x 2880
PPI：
218
Color:
sRGB
Thunderbolt 2 (up to 20Gb/s)：
2 (20Gb/s)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
Height: 65cm
Width: 51.6cm
Thickness: 20.3cm
Weight: 9.54kg
A1419
-
iMac15,1
Tech Specs
iMac(Retina 5K, 27-inch, Late 2014)
Preview
Preview
iMac
(Retina 5K, 27-inch, Late 2014)
Release Date
2014.10.17
OS Support
OS X 10.10→macOS 11
Intel 4-Core i5
i5-4690
Intel 4-Core i7
i7-4790K
Graphics:
Intel® HD Graphics 4600 + AMD Radeon R9 M290/M295X
RAM:
8GB16GB32GB
Storage:
256GB512GB1TB3TB
Process:
Intel 22nm (Haswell)
288027"218ppi51205K Retina display9.54kg
27"
5K Retina display
Resolution:
5120 x 2880
PPI：
218
Color:
sRGB
Thunderbolt 2 (up to 20Gb/s)：
2 (20Gb/s)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
Height: 65cm
Width: 51.6cm
Thickness: 20.3cm
Weight: 9.54kg
A1419
-
iMac15,1
Tech Specs
iMac(21.5-inch, Mid 2014)
Preview
Preview
iMac
(21.5-inch, Mid 2014)
Release Date
2014.06.19
OS Support
OS X 10.9→macOS 11
Intel 2-Core i5
i5-4260U
Graphics:
Intel HD Graphics 5000
RAM:
8GB
Storage:
256GB1TB
Process:
Intel 22nm (Haswell)
108021.5"103ppi1920LED5.68kg
21.5"
LED
Resolution:
1920 x 1080
PPI：
103
Color:
sRGB
Thunderbolt (up to 10Gbps)：
2 (10Gbps)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
Height: 52.8cm
Width: 45cm
Thickness: 17.5cm
Weight: 5.68kg
A1418
-
iMac14,4
Tech Specs
iMac(27-inch, Late 2013)
Preview
Preview
iMac
(27-inch, Late 2013)
Release Date
2013.09.25
OS Support
OS X 10.8→macOS 10.15
Intel 4-Core i5
i5-4570
Intel 4-Core i5
i5-4670
Intel 4-Core i7
i7-4771
Graphics:
Intel® HD Graphics 4600 + NVIDIA GT755M/775M/780M
RAM:
8GB16GB32GB
Storage:
256GB512GB1TB3TB
Process:
Intel 22nm (Haswell)
144027"109ppi2560LED9.54kg
27"
LED
Resolution:
2560 x 1440
PPI：
109
Color:
sRGB
Thunderbolt (up to 10Gbps)：
2 (10Gbps)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
Height: 65cm
Width: 51.6cm
Thickness: 20.3cm
Weight: 9.54kg
A1419
-
iMac14,2
Tech Specs
iMac(21.5-inch, Late 2013)
Preview
Preview
iMac
(21.5-inch, Late 2013)
Release Date
2013.09.25
OS Support
OS X 10.8→macOS 10.15
Intel 4-Core i5
i5-4570R
Intel 4-Core i5
i5-4570S
Intel 4-Core i5
i5-4770S
Graphics:
Intel® HD Graphics 4600 + NVIDIA GT750M
RAM:
8GB16GB
Storage:
256GB512GB1TB
Process:
Intel 22nm (Haswell)
108021.5"103ppi1920LED5.68kg
21.5"
LED
Resolution:
1920 x 1080
PPI：
103
Color:
sRGB
Thunderbolt (up to 10Gbps)：
2 (10Gbps)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
Height: 52.8cm
Width: 45cm
Thickness: 17.5cm
Weight: 5.68kg
A1418
-
iMac14,1
iMac14,3
Tech Specs
iMac(27-inch, Late 2012)
Preview
Preview
iMac
(27-inch, Late 2012)
Release Date
2012.10
OS Support
OS X 10.8→macOS 10.15
Color
Intel 4-Core i5
i5-3470S
Intel 4-Core i5
i5-3470
Intel 4-Core i7
i7-3770
Graphics:
NVIDIA GeForce GTX 660M/675MX/680MX
RAM:
8GB16GB32GB
Storage:
1TB3TB256GB512GB768GB
Process:
Intel 22nm (Ivy Bridge)
144027"109ppi2560LED-backlit display with IPS technology9.54kg
27"
LED-backlit display with IPS technology
Resolution:
2560 x 1440
PPI：
109
Color:
sRGB
Thunderbolt (up to 10Gbps)：
2 (10Gbps)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack (Analog/Optical combo)：
1
Wi-Fi:
802.11n Wi-Fi
Bluetooth:
Bluetooth 4.0
Height: 51.6cm
Width: 65cm
Thickness: 20.3cm
Weight: 9.54kg
A1419
/
iMac13,2
Tech Specs
iMac(21.5-inch, Late 2012)
Preview
Preview
iMac
(21.5-inch, Late 2012)
Release Date
2012.10
OS Support
OS X 10.8→macOS 10.15
Color
Intel 4-Core i5
i5-3330S
Intel 4-Core i5
i5-3470S
Intel 4-Core i7
i7-3770S
Graphics:
NVIDIA GeForce GT 640M/650M
RAM:
8GB16GB
Storage:
1TB256GB512GB
Process:
Intel 22nm (Ivy Bridge)
108021.5"103ppi1920LED-backlit display with IPS technology5.68kg
21.5"
LED-backlit display with IPS technology
Resolution:
1920 x 1080
PPI：
103
Color:
sRGB
Thunderbolt (up to 10Gbps)：
2 (10Gbps)
USB-A 3.0：
4 (5Gbps)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm headphone jack (Analog/Optical combo)：
1
Wi-Fi:
802.11n Wi-Fi
Bluetooth:
Bluetooth 4.0
Height: 45cm
Width: 52.8cm
Thickness: 17.5cm
Weight: 5.68kg
A1418
/
iMac13,1
Tech Specs
iMac(21.5-inch, Late 2011)
Preview
Preview
iMac
(21.5-inch, Late 2011)
Release Date
2011.08
OS Support
OS X 10.7→macOS 10.13
Color
Intel 2-Core i3
i3-2100
Graphics:
AMD Radeon HD 6750M
RAM:
4GB8GB16GB
Storage:
250GB
Process:
Intel 32nm (Sandy Bridge)
108021.5"103ppi1920LED-backlit widescreen TFT LCD (Glossy)9.3kg
21.5"
LED-backlit widescreen TFT LCD (Glossy)
Resolution:
1920 x 1080
PPI：
103
Color:
sRGB
Thunderbolt (up to 10Gbps)：
0 (10Gbps)
USB-A 2.0：
4 (480Mbps)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
SDXC card slot：
1
Mini DisplayPort：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi
Bluetooth:
None
Power:
205W
Height: 45.1cm
Width: 52.8cm
Thickness: 18.85cm
Weight: 9.3kg
A1311
/
iMac12,1
-
iMac(27-inch, Mid 2011)
Preview
Preview
iMac
(27-inch, Mid 2011)
Release Date
2011.05
OS Support
OS X 10.6→macOS 10.13
Color
Intel 4-Core i5
i5-2400S
Intel 4-Core i5
i5-2500S
Intel 4-Core i7
i7-2600
Graphics:
AMD Radeon HD 6770M/6970M
RAM:
4GB8GB16GB32GB
Storage:
1TB2TB256GB
Process:
Intel 32nm (Sandy Bridge)
144027"109ppi2560LED-backlit widescreen TFT LCD (Glossy)13.8kg
27"
LED-backlit widescreen TFT LCD (Glossy)
Resolution:
2560 x 1440
PPI：
109
Color:
sRGB
Thunderbolt (up to 10Gbps)：
2 (10Gbps)
USB-A 2.0：
4 (480Mbps)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.1 + EDR
Power:
310W
Height: 51.7cm
Width: 65cm
Thickness: 20.7cm
Weight: 13.8kg
A1312
/
iMac12,2
-
iMac(21.5-inch, Mid 2011)
Preview
Preview
iMac
(21.5-inch, Mid 2011)
Release Date
2011.05
OS Support
OS X 10.6→macOS 10.13
Color
Intel 4-Core i5
i5-2400S
Intel 4-Core i5
i5-2500S
Intel 4-Core i7
i7-2600S
Graphics:
AMD Radeon HD 6750M/6770M
RAM:
4GB8GB16GB32GB
Storage:
500GB1TB2TB256GB
Process:
Intel 32nm (Sandy Bridge)
108021.5"103ppi1920LED-backlit widescreen TFT LCD (Glossy)9.3kg
21.5"
LED-backlit widescreen TFT LCD (Glossy)
Resolution:
1920 x 1080
PPI：
103
Color:
sRGB
Thunderbolt (up to 10Gbps)：
1 (10Gbps)
USB-A 2.0：
4 (480Mbps)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.1 + EDR
Power:
205W
Height: 45.1cm
Width: 52.8cm
Thickness: 18.85cm
Weight: 9.3kg
A1311
/
iMac12,1
-
iMac(27-inch, Mid 2010)
Preview
Preview
iMac
(27-inch, Mid 2010)
Release Date
2010.07
OS Support
OS X 10.6→macOS 10.13
Color
2-Core Core i3
Core i3-550
4-Core Core i5
Core i5-680 / 760
4-Core Core i7
Core i7-870
Graphics:
ATI Radeon HD 56705750
RAM:
4GB8GB16GB32GB
Storage:
1TB2TB256GB
Process:
32 nm (Clarkdale) / 45 nm (Lynnfield)
144027"109ppi2560LED-backlit widescreen TFT LCD (Glossy)375 nitsnit13.8kg
27"
LED-backlit widescreen TFT LCD (Glossy)
Resolution:
2560 x 1440
PPI：
109
Color:
sRGB
Mini DisplayPort：
1
USB-A 2.0：
4 (480Mbps)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.1 + EDR
Power:
365W
Height: 51.7cm
Width: 65cm
Thickness: 20.7cm
Weight: 13.8kg
A1312
/
iMac11,3
-
iMac(21.5-inch, Mid 2010)
Preview
Preview
iMac
(21.5-inch, Mid 2010)
Release Date
2010.07
OS Support
OS X 10.6→macOS 10.13
Color
2-Core Core i3
Core i3-540 / 550
2-Core Core i5
Core i5-680
Graphics:
ATI Radeon HD 46705670
RAM:
4GB8GB16GB
Storage:
500GB1TB2TB
Process:
32 nm (Clarkdale)
108021.5"103ppi1920LED-backlit widescreen TFT LCD (Glossy)330 nitsnit9.3kg
21.5"
LED-backlit widescreen TFT LCD (Glossy)
Resolution:
1920 x 1080
PPI：
103
Color:
sRGB
Mini DisplayPort：
1
USB-A 2.0：
4 (480Mbps)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
SDXC card slot：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.1 + EDR
Power:
241W
Height: 45.1cm
Width: 52.8cm
Thickness: 18.85cm
Weight: 9.3kg
A1311
/
iMac11,2
-
iMac(27-inch, Late 2009)
Preview
Preview
iMac
(27-inch, Late 2009)
Release Date
2009.10
OS Support
OS X 10.6→macOS 10.13
Color
2-Core Core
Core 2 Duo E7600 / E8600
4-Core Core i5
Core i5-750
4-Core Core i7
Core i7-860
Graphics:
ATI Radeon HD 46704850
RAM:
4GB8GB16GB
Storage:
500GB1TB
Process:
45 nm (Wolfdale)
144027"109ppi2560LED-backlit widescreen TFT LCD (Glossy)375 nitsnit13.8kg
27"
LED-backlit widescreen TFT LCD (Glossy)
Resolution:
2560 x 1440
PPI：
109
Color:
sRGB
Mini DisplayPort：
1
USB-A 2.0：
4 (480Mbps)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
SD card slot：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.1 + EDR
Power:
365W
Height: 51.7cm
Width: 65cm
Thickness: 20.7cm
Weight: 13.8kg
A1312
/
iMac11,1
-
iMac(21.5-inch, Late 2009)
Preview
Preview
iMac
(21.5-inch, Late 2009)
Release Date
2009.10
OS Support
OS X 10.6→macOS 10.13
Color
2-Core Core
Core 2 Duo E7600
2-Core Core
Core 2 Duo E8600
Graphics:
NVIDIA GeForce 9400M or ATI Radeon HD 4670
RAM:
4GB8GB16GB
Storage:
500GB1TB2TB
Process:
45 nm (Wolfdale)
108021.5"103ppi1920LED-backlit widescreen TFT LCD (Glossy)320 nitsnit9.3kg
21.5"
LED-backlit widescreen TFT LCD (Glossy)
Resolution:
1920 x 1080
PPI：
103
Color:
sRGB
Mini DisplayPort：
1
USB-A 2.0：
4 (480Mbps)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
SD card slot：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.1 + EDR
Power:
241W
Height: 45.1cm
Width: 52.8cm
Thickness: 18.85cm
Weight: 9.3kg
A1311
/
iMac10,1
-
iMac(20-inch, Mid 2009)
Preview
Preview
iMac
(20-inch, Mid 2009)
Release Date
2009.04
OS Support
OS X 10.5→OS X 10.11
Color
2-Core Core
Core 2 Duo P7350
2-Core Core
Core 2 Duo P7550
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB4GB8GB
Storage:
160GB320GB
Process:
45 nm (Penryn)
105020"99ppi1680Widescreen TFT LCD (Glossy)290 nitsnit9.1kg
20"
Widescreen TFT LCD (Glossy)
Resolution:
1680 x 1050
PPI：
99
Color:
sRGB
Mini DisplayPort：
1
USB-A 2.0：
4 (480Mbps)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
None
Power:
200W
Height: 46.9cm
Width: 48.5cm
Thickness: 18.9cm
Weight: 9.1kg
A1224
/
iMac9,1
-
iMac(24-inch, Early 2009)
Preview
Preview
iMac
(24-inch, Early 2009)
Release Date
2009.03
OS Support
OS X 10.5→OS X 10.11
Color
2-Core Core
Core 2 Duo E8135
2-Core Core
Core 2 Duo E8335
2-Core Core
Core 2 Duo E8435
Graphics:
NVIDIA GeForce 9400MGT 120GT 130 or ATI Radeon HD 4850
RAM:
4GB8GB
Storage:
640GB1TB
Process:
45 nm (Penryn)
120024"94ppi1920Widescreen TFT LCD (Glossy)385 nitsnit11.5kg
24"
Widescreen TFT LCD (Glossy)
Resolution:
1920 x 1200
PPI：
94
Color:
sRGB
Mini DisplayPort：
1
USB-A 2.0：
4 (480Mbps)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.1 + EDR
Power:
280W
Height: 52cm
Width: 56.9cm
Thickness: 20.7cm
Weight: 11.5kg
A1225
/
iMac9,1
-
iMac(24-inch, Early 2008)
Preview
Preview
iMac
(24-inch, Early 2008)
Release Date
2008.04
OS Support
OS X 10.5→OS X 10.11
Color
2-Core Core
Core 2 Duo E8235
2-Core Core
Core 2 Duo E8435
Graphics:
ATI Radeon HD 2600 PRO or NVIDIA GeForce 8800 GS
RAM:
2GB4GB6GB
Storage:
320GB500GB750GB1TB
Process:
45 nm (Penryn)
120024"94ppi1920Widescreen TFT LCD (Glossy)385 nitsnit11.5kg
24"
Widescreen TFT LCD (Glossy)
Resolution:
1920 x 1200
PPI：
94
Color:
sRGB
Mini-DVI：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.1 + EDR
Power:
280W
Height: 52cm
Width: 56.9cm
Thickness: 20.7cm
Weight: 11.5kg
A1225
/
iMac8,1
-
iMac(20-inch, Early 2008)
Preview
Preview
iMac
(20-inch, Early 2008)
Release Date
2008.04
OS Support
OS X 10.5→OS X 10.11
Color
2-Core Core
Core 2 Duo E8135
2-Core Core
Core 2 Duo E8335
Graphics:
ATI Radeon HD 2400 XT or ATI Radeon HD 2600 PRO
RAM:
2GB4GB6GB
Storage:
250GB320GB500GB750GB
Process:
45 nm (Penryn)
105020"99ppi1680Widescreen TFT LCD (Glossy)290 nitsnit9.1kg
20"
Widescreen TFT LCD (Glossy)
Resolution:
1680 x 1050
PPI：
99
Color:
sRGB
Mini-DVI：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.1 + EDR
Power:
200W
Height: 46.9cm
Width: 48.5cm
Thickness: 18.9cm
Weight: 9.1kg
A1224
/
iMac8,1
-
iMac(24-inch, Mid 2007)
Preview
Preview
iMac
(24-inch, Mid 2007)
Release Date
2007.08
OS Support
OS X 10.4→OS X 10.11
Color
2-Core Core
Core 2 Duo T7700
2-Core Core
Core 2 Extreme X7900
Graphics:
ATI Radeon HD 2600 PRO
RAM:
2GB4GB6GB
Storage:
320GB500GB750GB1TB
Process:
65 nm (Merom)
120024"94ppi1920Widescreen TFT LCD (Glossy)380 nitsnit11.5kg
24"
Widescreen TFT LCD (Glossy)
Resolution:
1920 x 1200
PPI：
94
Color:
sRGB
Mini-DVI：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.0 + EDR
Power:
280W
Height: 52cm
Width: 56.9cm
Thickness: 20.7cm
Weight: 11.5kg
A1225
/
iMac7,1
-
iMac(20-inch, Mid 2007)
Preview
Preview
iMac
(20-inch, Mid 2007)
Release Date
2007.08
OS Support
OS X 10.4→OS X 10.11
Color
2-Core Core
Core 2 Duo T7300
2-Core Core
Core 2 Duo T7700
Graphics:
ATI Radeon HD 2400 XT or ATI Radeon HD 2600 PRO
RAM:
1GB2GB4GB6GB
Storage:
250GB320GB500GB750GB
Process:
65 nm (Merom)
105020"99ppi1680Widescreen TFT LCD (Glossy)290 nitsnit9.1kg
20"
Widescreen TFT LCD (Glossy)
Resolution:
1680 x 1050
PPI：
99
Color:
sRGB
Mini-DVI：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.0 + EDR
Power:
200W
Height: 46.9cm
Width: 48.5cm
Thickness: 18.9cm
Weight: 9.1kg
A1224
/
iMac7,1
-
iMac(24-inch, Late 2006)
Preview
Preview
iMac
(24-inch, Late 2006)
Release Date
2006.09
OS Support
OS X 10.4→OS X 10.7
Color
2-Core Core
Core 2 Duo T7400
2-Core Core
Core 2 Duo T7600
Graphics:
NVIDIA GeForce 7300 GT or GeForce 7600 GT
RAM:
1GB2GB3GB
Storage:
250GB500GB750GB
Process:
65 nm (Merom)
120024"94ppi1920Widescreen TFT LCD (Glossy)400 nitsnit11.2kg
24"
Widescreen TFT LCD (Glossy)
Resolution:
1920 x 1200
PPI：
94
Color:
sRGB
Mini-DVI：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.0 + EDR
Power:
220W
Height: 52.3cm
Width: 57.4cm
Thickness: 20.7cm
Weight: 11.2kg
A1200
/
iMac6,1
-
iMac(20-inch, Late 2006)
Preview
Preview
iMac
(20-inch, Late 2006)
Release Date
2006.09
OS Support
OS X 10.4→OS X 10.7
Color
2-Core Core
Core 2 Duo T7400
2-Core Core
Core 2 Duo T7600
Graphics:
ATI Radeon X1600
RAM:
1GB2GB3GB
Storage:
250GB500GB
Process:
65 nm (Merom)
105020"99ppi1680Widescreen TFT LCD (Glossy)280 nitsnit10kg
20"
Widescreen TFT LCD (Glossy)
Resolution:
1680 x 1050
PPI：
99
Color:
sRGB
Mini-DVI：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.0 + EDR
Power:
180W
Height: 47.2cm
Width: 49.3cm
Thickness: 18.9cm
Weight: 10kg
A1207
/
iMac5,1
-
iMac(17-inch, Late 2006)
Preview
Preview
iMac
(17-inch, Late 2006)
Release Date
2006.09
OS Support
OS X 10.4→OS X 10.7
Color
2-Core Core
Core 2 Duo T7200
2-Core Core
Core 2 Duo T7400
Graphics:
ATI Radeon X1600
RAM:
1GB2GB3GB
Storage:
160GB250GB500GB
Process:
65 nm (Merom)
90017"99ppi1440Widescreen TFT LCD (Glossy)250 nitsnit7kg
17"
Widescreen TFT LCD (Glossy)
Resolution:
1440 x 900
PPI：
99
Color:
sRGB
Mini-DVI：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11n Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.0 + EDR
Power:
180W
Height: 43cm
Width: 42.6cm
Thickness: 17.3cm
Weight: 7kg
A1208
/
iMac5,1
-
iMac(17-inch, Late 2006 CD)
Preview
Preview
iMac
(17-inch, Late 2006 CD)
Release Date
2006.09
OS Support
OS X 10.4→OS X 10.7
Color
2-Core Core
Core 2 Duo T5600
Graphics:
Intel GMA 950
RAM:
1GB2GB
Storage:
160GB
Process:
65 nm (Merom)
90017"99ppi1440Widescreen TFT LCD250 nitsnit7kg
17"
Widescreen TFT LCD
Resolution:
1440 x 900
PPI：
99
Color:
sRGB
Mini-DVI：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11g Wi-Fi (AirPort Extreme)
Bluetooth:
None
Power:
180W
Height: 43cm
Width: 42.6cm
Thickness: 17.3cm
Weight: 7kg
A1195
/
iMac5,2
-
iMac(17-inch, Mid 2006)
Preview
Preview
iMac
(17-inch, Mid 2006)
Release Date
2006.07
OS Support
OS X 10.4→OS X 10.6
Color
2-Core Core
Core Duo T2400
Graphics:
Intel GMA 950
RAM:
512MB1GB2GB
Storage:
80GB
Process:
65 nm (Yonah)
90017"99ppi1440Widescreen TFT LCD250 nitsnit7kg
17"
Widescreen TFT LCD
Resolution:
1440 x 900
PPI：
99
Color:
sRGB
Mini-DVI：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11g Wi-Fi (AirPort Extreme)
Bluetooth:
None
Power:
180W
Height: 43cm
Width: 42.6cm
Thickness: 17.3cm
Weight: 7kg
A1195
/
iMac4,2
-
iMac(20-inch, Early 2006)
Preview
Preview
iMac
(20-inch, Early 2006)
Release Date
2006.01
OS Support
OS X 10.4→OS X 10.6
Color
2-Core Core
Core Duo T2500
Graphics:
ATI Radeon X1600
RAM:
512MB1GB2GB
Storage:
250GB500GB
Process:
65 nm (Yonah)
105020"99ppi1680Widescreen TFT LCD (Glossy)280 nitsnit10kg
20"
Widescreen TFT LCD (Glossy)
Resolution:
1680 x 1050
PPI：
99
Color:
sRGB
Mini-DVI：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11g Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.0 + EDR
Power:
180W
Height: 47.2cm
Width: 49.3cm
Thickness: 18.9cm
Weight: 10kg
A1174
/
iMac4,1
-
iMac(17-inch, Early 2006)
Preview
Preview
iMac
(17-inch, Early 2006)
Release Date
2006.01
OS Support
OS X 10.4→OS X 10.6
Color
2-Core Core
Core Duo T2400
Graphics:
ATI Radeon X1600
RAM:
512MB1GB2GB
Storage:
160GB250GB500GB
Process:
65 nm (Yonah)
90017"99ppi1440Widescreen TFT LCD (Glossy)250 nitsnit7kg
17"
Widescreen TFT LCD (Glossy)
Resolution:
1440 x 900
PPI：
99
Color:
sRGB
Mini-DVI：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11g Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.0 + EDR
Power:
180W
Height: 43cm
Width: 42.6cm
Thickness: 17.3cm
Weight: 7kg
A1173
/
iMac4,1
-
iMac G5(20-inch, Ambient Light Sensor)
Preview
Preview
iMac G5
(20-inch, Ambient Light Sensor)
Release Date
2005.05
OS Support
OS X 10.4→OS X 10.5
Color
1-Core PowerPC
PowerPC 970fx (G5)
Graphics:
ATI Radeon 9600
RAM:
512MB2GB
Storage:
250GB400GB
Process:
90 nm
105020"99ppi1680Widescreen TFT LCD230 nitsnit11.4kg
20"
Widescreen TFT LCD
Resolution:
1680 x 1050
PPI：
99
Color:
sRGB
Mini-VGA：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11g Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.0 + EDR
Power:
180W
Height: 47.2cm
Width: 49.3cm
Thickness: 18.9cm
Weight: 11.4kg
A1076
/
PowerMac8,2
-
iMac G5(17-inch, Ambient Light Sensor)
Preview
Preview
iMac G5
(17-inch, Ambient Light Sensor)
Release Date
2005.05
OS Support
OS X 10.4→OS X 10.5
Color
1-Core PowerPC
PowerPC 970fx (G5)
Graphics:
ATI Radeon 9600
RAM:
512MB2GB
Storage:
160GB250GB400GB
Process:
90 nm
90017"99ppi1440Widescreen TFT LCD200 nitsnit8.4kg
17"
Widescreen TFT LCD
Resolution:
1440 x 900
PPI：
99
Color:
sRGB
Mini-VGA：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
Gigabit Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
802.11g Wi-Fi (AirPort Extreme)
Bluetooth:
Bluetooth 2.0 + EDR
Power:
180W
Height: 43cm
Width: 42.6cm
Thickness: 17.3cm
Weight: 8.4kg
A1058
/
PowerMac8,2
-
iMac G5(20-inch)
Preview
Preview
iMac G5
(20-inch)
Release Date
2004.08
OS Support
OS X 10.3→OS X 10.5
Color
1-Core PowerPC
PowerPC 970fx (G5)
Graphics:
NVIDIA GeForce FX 5200 Ultra
RAM:
512MB2GB
Storage:
80GB160GB250GB
Process:
90 nm
105020"99ppi1680Widescreen TFT LCD230 nitsnit11.4kg
20"
Widescreen TFT LCD
Resolution:
1680 x 1050
PPI：
99
Color:
sRGB
Mini-VGA：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
Optional 802.11b/g (AirPort Extreme)
Bluetooth:
Optional Bluetooth 1.1
Power:
180W
Height: 47.2cm
Width: 49.3cm
Thickness: 18.9cm
Weight: 11.4kg
A1076
/
PowerMac8,1
-
iMac G5(17-inch)
Preview
Preview
iMac G5
(17-inch)
Release Date
2004.08
OS Support
OS X 10.3→OS X 10.5
Color
1-Core PowerPC
PowerPC 970fx (G5)
Graphics:
NVIDIA GeForce4 MX or GeForce FX 5200 Ultra
RAM:
512MB2GB
Storage:
40GB80GB160GB250GB
Process:
90 nm
90017"99ppi1440Widescreen TFT LCD200 nitsnit8.4kg
17"
Widescreen TFT LCD
Resolution:
1440 x 900
PPI：
99
Color:
sRGB
Mini-VGA：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog/optical combo headphone jack：
1
Wi-Fi:
Optional 802.11b/g (AirPort Extreme)
Bluetooth:
Optional Bluetooth 1.1
Power:
180W
Height: 43cm
Width: 42.6cm
Thickness: 17.3cm
Weight: 8.4kg
A1058
/
PowerMac8,1
-
iMac(20-inch, USB 2.0)
Preview
Preview
iMac
(20-inch, USB 2.0)
Release Date
2003.11
OS Support
OS X 10.3→OS X 10.5
Color
1-Core PowerPC
PowerPC 7455 v3.3 (G4)
Graphics:
NVIDIA GeForce FX 5200 Ultra
RAM:
256MB1GB2GB
Storage:
80GB160GB
Process:
180 nm
105020"99ppi1680Widescreen TFT active-matrix LCD230 nitsnit18.2kg
20"
Widescreen TFT active-matrix LCD
Resolution:
1680 x 1050
PPI：
99
Color:
sRGB
Mini-VGA：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog input/output jack：
2
Wi-Fi:
Optional 802.11b/g (AirPort Extreme)
Bluetooth:
Optional Bluetooth 1.1
Power:
190W
Height: 35.4-53.1cm
Width: 43.9-51.3cm
Thickness: 26.9-43.9cm
Weight: 18.2kg
M6498
/
PowerMac6,3
-
iMac(17-inch, USB 2.0)
Preview
Preview
iMac
(17-inch, USB 2.0)
Release Date
2003.09
OS Support
OS X 10.2→OS X 10.5
Color
1-Core PowerPC
PowerPC 7455 v3.3 (G4)
Graphics:
NVIDIA GeForce FX 5200 Ultra
RAM:
256MB1GB2GB
Storage:
80GB160GB
Process:
180 nm
90017"99ppi1440Widescreen TFT active-matrix LCD200 nitsnit10.3kg
17"
Widescreen TFT active-matrix LCD
Resolution:
1440 x 900
PPI：
99
Color:
sRGB
Mini-VGA：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog input/output jack：
2
Wi-Fi:
Optional 802.11b/g (AirPort Extreme)
Bluetooth:
Optional Bluetooth 1.1
Power:
160W
Height: 33.1-50.8cm
Width: 42.4-45cm
Thickness: 26.9-42.4cm
Weight: 10.3kg
M6498
/
PowerMac6,1
PowerMac6,3
-
iMac(15-inch, USB 2.0)
Preview
Preview
iMac
(15-inch, USB 2.0)
Release Date
2003.09
OS Support
OS X 10.2→OS X 10.5
Color
1-Core PowerPC
PowerPC 7455 v3.3 (G4)
Graphics:
NVIDIA GeForce4 MX
RAM:
256MB1GB2GB
Storage:
80GB160GB
Process:
180 nm
76815"86ppi1024TFT active-matrix LCD200 nitsnit9.7kg
15"
TFT active-matrix LCD
Resolution:
1024 x 768
PPI：
86
Color:
sRGB
Mini-VGA：
1
USB-A 2.0：
3 (480Mbps)
Firewire 400：
2 (400Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog input/output jack：
2
Wi-Fi:
Optional 802.11b/g (AirPort Extreme)
Bluetooth:
Optional Bluetooth 1.1
Power:
160W
Height: 32.9-50.8cm
Width: 38.4-41.4cm
Thickness: 26.9-41.4cm
Weight: 9.7kg
M6498
/
PowerMac6,1
PowerMac6,3
-
iMac(17-inch, Flat Panel)
Preview
Preview
iMac
(17-inch, Flat Panel)
Release Date
2002.07
OS Support
Mac OS 9→OS X 10.4
Color
1-Core PowerPC
PowerPC 7450 v2.1 (G4)
Graphics:
NVIDIA GeForce4 MX
RAM:
256MB1GB
Storage:
80GB
Process:
180 nm
90017"99ppi1440Widescreen TFT active-matrix LCD200 nitsnit10.3kg
17"
Widescreen TFT active-matrix LCD
Resolution:
1440 x 900
PPI：
99
Color:
sRGB
Mini-VGA：
1
USB-A 1.1：
3 (12Mb/s)
Firewire 400：
2 (400Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog input/output jack：
2
Wi-Fi:
Optional 802.11b (AirPort)
Bluetooth:
None
Power:
130W
Height: 33.1-50.8cm
Width: 42.4-45cm
Thickness: 26.9-42.4cm
Weight: 10.3kg
M6498
/
PowerMac4,5
-
iMac(Flat Panel)
Preview
Preview
iMac
(Flat Panel)
Release Date
2002.01
OS Support
Mac OS 9→OS X 10.4
Color
1-Core PowerPC
PowerPC 7450 v2.1 (G4)
Graphics:
NVIDIA GeForce2 MX
RAM:
128MB256MB1GB
Storage:
40GB60GB
Process:
180 nm
76815"86ppi1024TFT active-matrix LCD200 nitsnit9.7kg
15"
TFT active-matrix LCD
Resolution:
1024 x 768
PPI：
86
Color:
sRGB
Mini-VGA：
1
USB-A 1.1：
3 (12Mb/s)
Firewire 400：
2 (400Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog input/output jack：
2
Wi-Fi:
Optional 802.11b (AirPort)
Bluetooth:
None
Power:
130W
Height: 32.9-50.8cm
Width: 38.4-41.4cm
Thickness: 26.9-41.4cm
Weight: 9.7kg
M6498
/
PowerMac4,2
-
iMac(Summer 2001)
Preview
Preview
iMac
(Summer 2001)
Release Date
2001.07
OS Support
Mac OS 9→OS X 10.4
Color
1-Core PowerPC
PowerPC 750cxe v2.4 or 745/755 v3.1 (G3)
Graphics:
ATI Rage 128 Ultra
RAM:
128MB256MB1GB
Storage:
20GB40GB60GB
Process:
180 nm or 220 nm
76815"86ppi1024shadow-mask CRT (13.8-inch viewable)15.7kg
15"
shadow-mask CRT (13.8-inch viewable)
Resolution:
1024 x 768
PPI：
86
Color:
sRGB
VGA：
1
USB-A 1.1：
2 (12Mb/s)
Firewire 400：
2 (400Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog input/output jack：
4
Wi-Fi:
Optional 802.11b (AirPort, Adapter required)
Bluetooth:
None
Power:
150W
Height: 38.1cm
Width: 38.1cm
Thickness: 43.4cm
Weight: 15.7kg
M5521
/
PowerMac4,1
-
iMac(Early 2001)
Preview
Preview
iMac
(Early 2001)
Release Date
2001.02
OS Support
Mac OS 9→OS X 10.4
Color
1-Core PowerPC
PowerPC 750 or 750cx (G3)
Graphics:
ATI Rage 128 Pro or Ultra
RAM:
128MB256MB1GB
Storage:
10GB20GB40GB
Process:
250 nm or 180 nm
76815"86ppi1024shadow-mask CRT (13.8-inch viewable)15.7kg
15"
shadow-mask CRT (13.8-inch viewable)
Resolution:
1024 x 768
PPI：
86
Color:
sRGB
VGA：
1
USB-A 1.1：
2 (12Mb/s)
Firewire 400：
2 (400Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog input/output jack：
4
Wi-Fi:
Optional 802.11b (AirPort, Adapter required)
Bluetooth:
None
Power:
150W
Height: 38.1cm
Width: 38.1cm
Thickness: 43.4cm
Weight: 15.7kg
M5521
/
PowerMac4,1
-
iMac(Summer 2000, DV/DV+/DV SE)
Preview
Preview
iMac
(Summer 2000, DV/DV+/DV SE)
Release Date
2000.07
OS Support
Mac OS 9→OS X 10.4
Color
1-Core PowerPC
PowerPC 750 (G3)
Graphics:
ATI Rage 128 Pro
RAM:
64MB128MB1GB
Storage:
7GB10GB20GB30GB
Process:
250 nm
76815"86ppi1024shadow-mask CRT (13.8-inch viewable)15.7kg
15"
shadow-mask CRT (13.8-inch viewable)
Resolution:
1024 x 768
PPI：
86
Color:
sRGB
VGA：
1
USB-A 1.1：
2 (12Mb/s)
Firewire 400：
2 (400Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog input/output jack：
4
Wi-Fi:
Optional 802.11b (AirPort, Adapter required)
Bluetooth:
None
Power:
150W
Height: 38.1cm
Width: 38.1cm
Thickness: 43.4cm
Weight: 15.7kg
M5521
/
PowerMac2,2
-
iMac(Slot Loading, DV/DV SE)
Preview
Preview
iMac
(Slot Loading, DV/DV SE)
Release Date
1999.10
OS Support
Mac OS 8→OS X 10.4
Color
1-Core PowerPC
PowerPC 750 (G3)
Graphics:
ATI Rage 128 VR
RAM:
64MB1GB
Storage:
6GB10GB13GB
Process:
250 nm
76815"86ppi1024shadow-mask CRT (13.8-inch viewable)15.7kg
15"
shadow-mask CRT (13.8-inch viewable)
Resolution:
1024 x 768
PPI：
86
Color:
sRGB
VGA：
1
USB-A 1.1：
2 (12Mb/s)
Firewire 400：
2 (400Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog input/output jack：
4
Wi-Fi:
Optional 802.11b (AirPort, Adapter required)
Bluetooth:
None
Power:
150W
Height: 38.1cm
Width: 38.1cm
Thickness: 43.4cm
Weight: 15.7kg
M5521
/
PowerMac2,1
-
iMac(5 Flavors)
Preview
Preview
iMac
(5 Flavors)
Release Date
1999.01
OS Support
Mac OS 8→OS X 10.3
Color
1-Core PowerPC
PowerPC 750 (G3)
Graphics:
ATI Rage Pro
RAM:
32MB512MB
Storage:
4GB6GB
Process:
250 nm
76815"86ppi1024shadow-mask CRT (13.8-inch viewable)18.1kg
15"
shadow-mask CRT (13.8-inch viewable)
Resolution:
1024 x 768
PPI：
86
Color:
sRGB
Internal DB-15：
1
USB-A 1.1：
2 (12Mb/s)
10/100BASE-T Ethernet：
1
3.5 mm analog input/output jack：
2
Wi-Fi:
None
Bluetooth:
None
Power:
200W
Height: 40.1cm
Width: 38.6cm
Thickness: 44.7cm
Weight: 18.1kg
M4984
/
iMac,1
-
iMac
Preview
Preview
iMac
Release Date
1998.08
OS Support
Mac OS 8→OS X 10.3
Color
1-Core PowerPC
PowerPC 750 (G3)
Graphics:
ATI Rage IIc or Rage Pro
RAM:
32MB384MB512MB
Storage:
4GB
Process:
250 nm
76815"86ppi1024shadow-mask CRT (13.8-inch viewable)18.1kg
15"
shadow-mask CRT (13.8-inch viewable)
Resolution:
1024 x 768
PPI：
86
Color:
sRGB
Internal DB-15：
1
USB-A 1.1：
2 (12Mb/s)
10/100BASE-T Ethernet：
1
Infrared：
1 (4Mbps)
3.5 mm analog input/output jack：
2
Wi-Fi:
None
Bluetooth:
None
Power:
200W
Height: 40.1cm
Width: 38.6cm
Thickness: 44.7cm
Weight: 18.1kg
M4984
/
iMac,1
-
