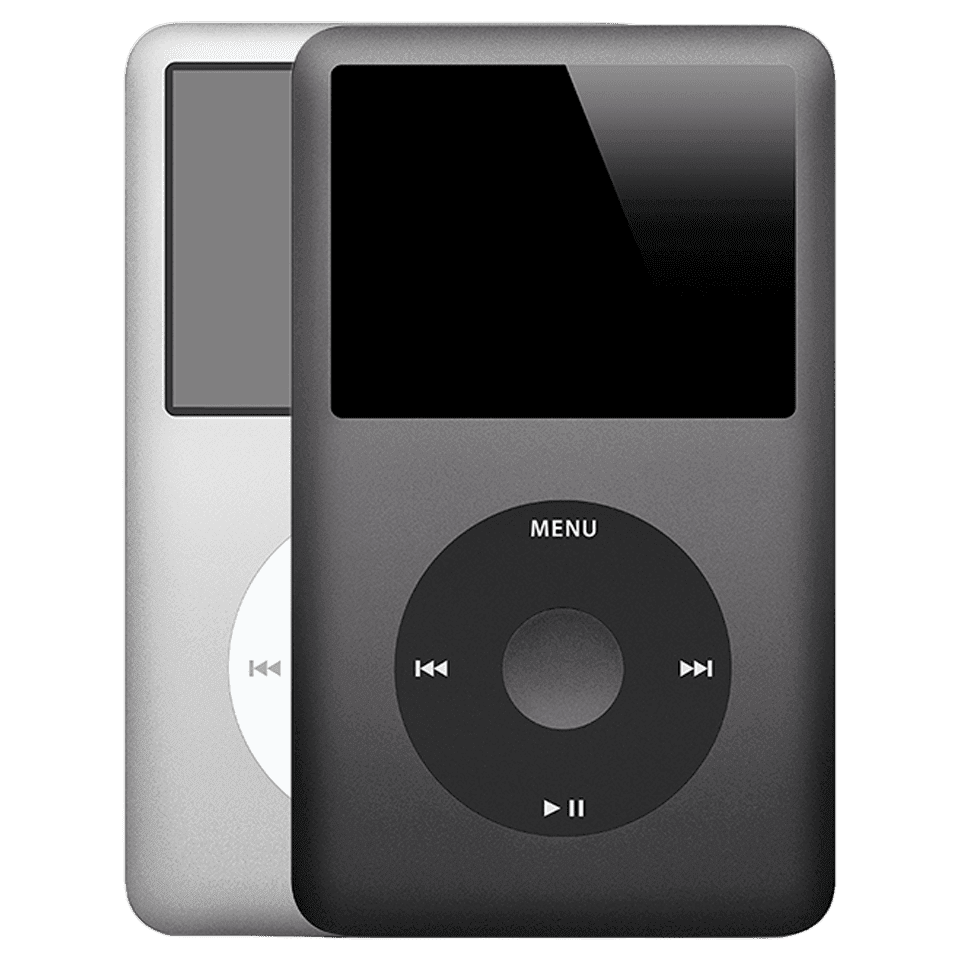

iPod classic 160GB(Late 2009)
Preview
Preview
iPod classic 160GB
(Late 2009)
Release Date
2009.09
Discontinued
2014.09
Color
Storage:
160GB
Height: 103.5mm
Width: 61.8mm
Thickness: 10.5mm
Weight: 140g
2.5"
Color LCD with LED backlight
Resolution:
320 x 240
PPI:
163
30-pin dock connector:
1
Stereo mini jack:
1
Charging:
30-pin connector
Bluetooth:
None
AAC (16 to 320 Kbps)
Protected AAC (from iTunes Store)
MP3 (16 to 320 Kbps)
MP3 VBR
Audible (formats 2, 3, and 4)
Apple Lossless
WAV and AIFF
H.264 video (up to 1.5 Mbps, 640 by 480 pixels, 30 fps)
H.264 Baseline Profile with AAC-LC audio (up to 160 Kbps, 48kHz, stereo)
MPEG-4 video (up to 2.5 Mbps, 640 by 480 pixels, 30 fps)
.m4v, .mp4, and .mov file formats
Video: Up to 6 hoursAudio: Up to 36 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1238
MC293LL/ASilver
MC297LL/ABlack
Apple released the iPod classic (Late 2009) in September 2009, replacing the 120GB model and increasing capacity to 160GB while maintaining the $249 price point.
iPod classic (120GB)
Preview
Preview
iPod classic (120GB)
Release Date
2008.09
Discontinued
2009.09
Color
Storage:
120GB
Height: 103.5mm
Width: 61.8mm
Thickness: 10.5mm
Weight: 140g
2.5"
Color LCD with LED backlight
Resolution:
320 x 240
PPI:
163
30-pin dock connector:
1
Stereo mini jack:
1
Charging:
30-pin connector
Bluetooth:
None
AAC (16 to 320 Kbps)
Protected AAC (from iTunes Store)
MP3 (16 to 320 Kbps)
MP3 VBR
Audible (formats 2, 3, and 4)
Apple Lossless
WAV and AIFF
H.264 video (up to 1.5 Mbps, 640 by 480 pixels, 30 fps)
H.264 Baseline Profile with AAC-LC audio (up to 160 Kbps, 48kHz, stereo)
MPEG-4 video (up to 2.5 Mbps, 640 by 480 pixels, 30 fps)
.m4v, .mp4, and .mov file formats
Video: Up to 6 hoursAudio: Up to 36 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1238
MB562LL/ASilver
MB565LL/ABlack
Apple released the 120GB iPod classic model at the "Let's Rock" event on September 9, 2008, replacing the 80GB and the thicker 160GB models at a price of $249.
iPod classic
Preview
Preview
iPod classic
Release Date
2007.09
Discontinued
2008.09
Color
Storage:
80GB160GB
Height: 103.5mm
Width: 61.8mm
Thickness: 10.5mm
Weight: 140-162g
2.5"
Color LCD with LED backlight
Resolution:
320 x 240
PPI:
163
30-pin dock connector:
1
Stereo mini jack:
1
Charging:
30-pin connector
Bluetooth:
None
AAC (16 to 320 Kbps)
Protected AAC (from iTunes Store)
MP3 (16 to 320 Kbps)
MP3 VBR
Audible (formats 2, 3, and 4)
Apple Lossless
WAV and AIFF
H.264 video (up to 1.5 Mbps, 640 by 480 pixels, 30 fps)
H.264 Baseline Profile with AAC-LC audio (up to 160 Kbps, 48kHz, stereo)
MPEG-4 video (up to 2.5 Mbps, 640 by 480 pixels, 30 fps)
.m4v, .mp4, and .mov file formats
Video: Up to 5-7 hoursAudio: Up to 30-40 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1238
MB029LL/ASilver 80GB
MB147LL/ABlack 80GB
MB145LL/ASilver 160GB
MB150LL/ABlack 160GB
At a special iPod event on September 5, 2007, Apple introduced the sixth-generation iPod and added the "classic" suffix. This model featured a slightly thinner body and significantly improved battery life, offering up to 40 hours of music playback and 7 hours of video. The front panel was changed to anodized aluminum instead of polycarbonate plastic, and the signature iPod White was replaced with Silver. A completely revamped user interface featured enhanced graphics and Cover Flow. It launched at $249 for the 80GB model (approx. 20,000 songs) and $349 for the 160GB model (approx. 40,000 songs). The U2 Special Edition was discontinued.

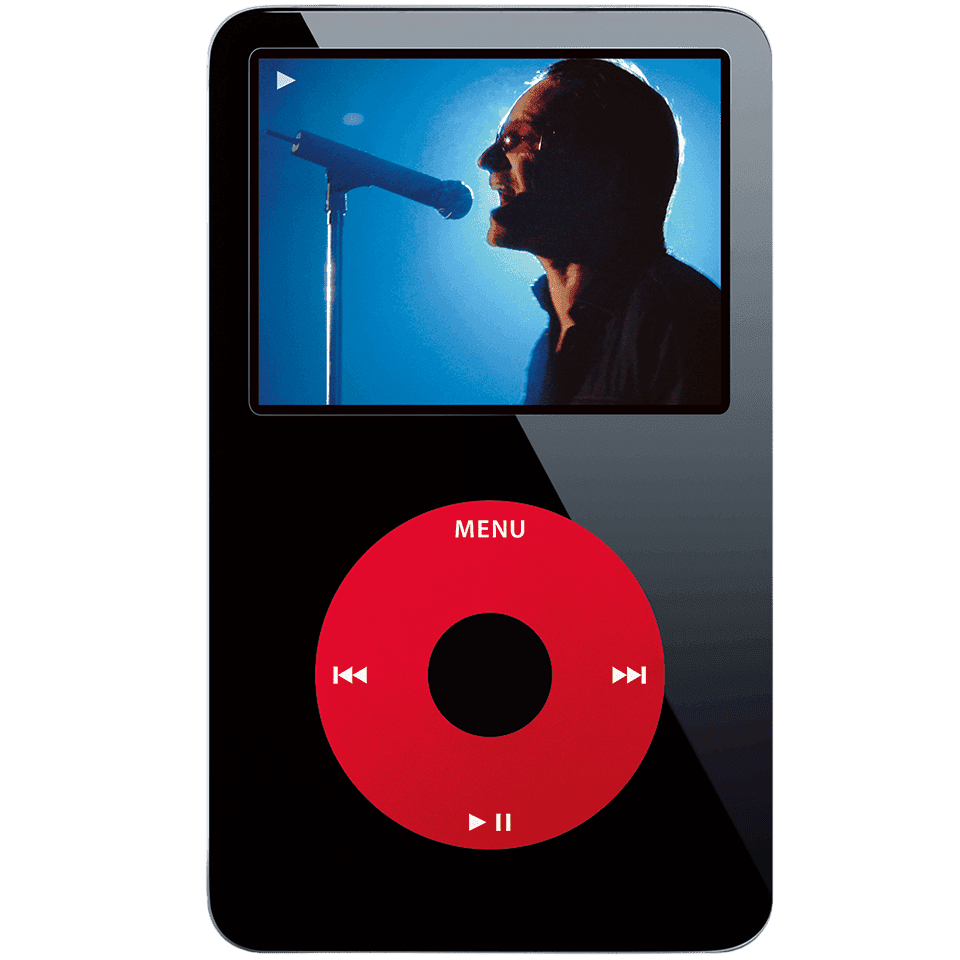

iPod (第5代 U2特别版)
Preview
Preview
iPod (第5代 U2特别版)
Release Date
2006.09
Discontinued
2007.09
Color
Storage:
30GB
Height: 103.5mm
Width: 61.8mm
Thickness: 11mm
Weight: 136g
2.5"
Color LCD with LED backlight
Resolution:
320 x 240
30-pin dock connector:
1
Stereo mini jack:
1
Charging:
FireWire, 30-pin connector
Bluetooth:
None
AAC
MP3
MP3 VBR
Audible
Apple Lossless
AIFF
WAV
H.264 video (up to 1.5 Mbps, 640 by 480 pixels, 30 fps)
H.264 Baseline Low-Complexity Profile with AAC-LC audio (up to 160 Kbps, 48kHz, stereo)
H.264 Baseline Profile with AAC-LC audio (up to 768 Kbps, 320 by 240 pixels, 30 fps)
MPEG-4 video (up to 2.5 Mbps, 640 by 480 pixels, 30 fps)
.m4v, .mp4, and .mov file formats
Video: Up to 3.5 hoursAudio: Up to 14 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1136
MA664LL/ABlack
In June 2006, Apple released the iPod U2 Special Edition (with video), bringing the iconic red wheel back to the iPod lineup. Aside from the color and pricing, it was identical to the 30GB iPod (with video). It launched at $329 and included a coupon for 30 minutes of exclusive U2 video content from the iTunes Store. In September 2006, the price was reduced to $279.

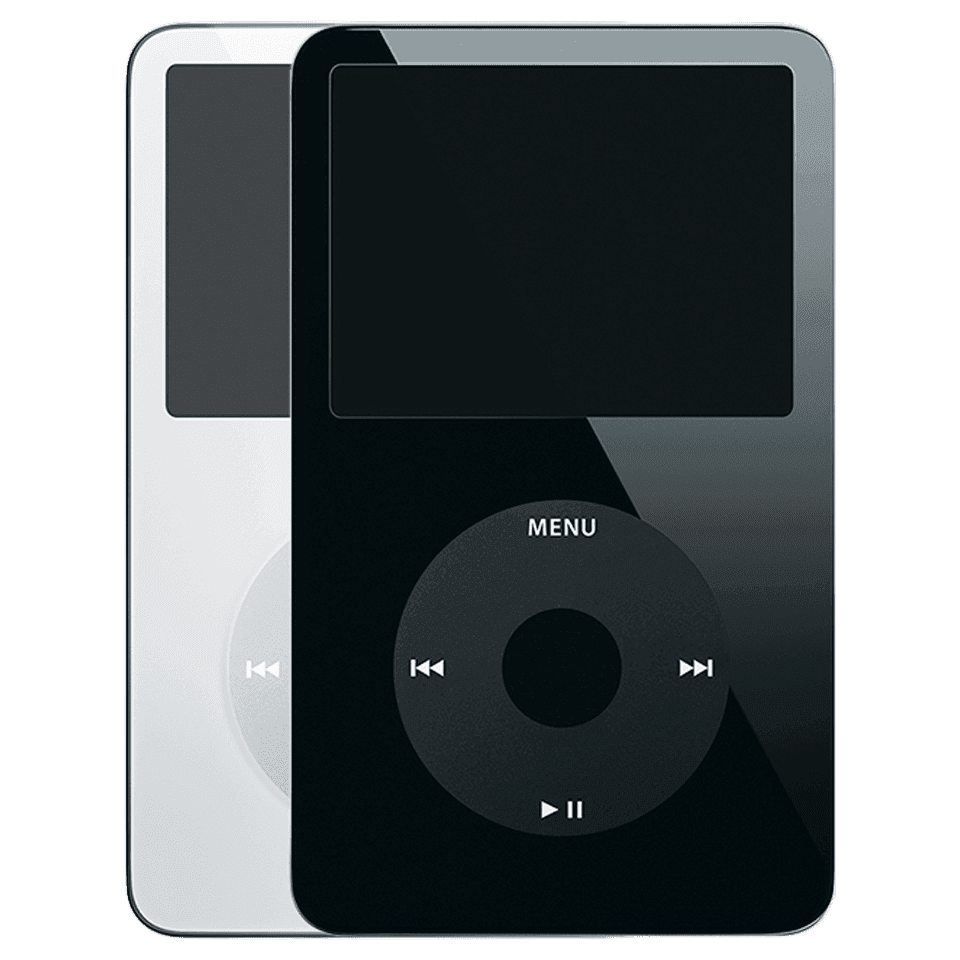

iPod (第5代)(Late 2006)
Preview
Preview
iPod (第5代)
(Late 2006)
Release Date
2006.09
Discontinued
2007.09
Color
Storage:
30GB80GB
Height: 103.5mm
Width: 61.8mm
Thickness: 11mm
Weight: 136-157g
2.5"
Color LCD with LED backlight
Resolution:
320 x 240
30-pin dock connector:
1
Stereo mini jack:
1
Charging:
FireWire, 30-pin connector
Bluetooth:
None
AAC
MP3
MP3 VBR
Audible
Apple Lossless
AIFF
WAV
H.264 video (up to 1.5 Mbps, 640 by 480 pixels, 30 fps)
H.264 Baseline Low-Complexity Profile with AAC-LC audio (up to 160 Kbps, 48kHz, stereo)
H.264 Baseline Profile with AAC-LC audio (up to 768 Kbps, 320 by 240 pixels, 30 fps)
MPEG-4 video (up to 2.5 Mbps, 640 by 480 pixels, 30 fps)
.m4v, .mp4, and .mov file formats
Video: Up to 3.5-6.5 hoursAudio: Up to 14-20 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1136
MA444LL/AWhite 30GB
MA446LL/ABlack 30GB
MA448LL/AWhite 80GB
MA450LL/ABlack 80GB
Apple refreshed the fifth-generation iPod on September 12, 2006, featuring a brighter screen, longer video playback, newly designed earphones, and a new search feature. It was the first model not to include an iTunes installation CD, directing users to download iTunes from Apple's website. The 60GB model was replaced by an 80GB version, and prices for the 30GB and 80GB models were reduced by $50 to $249 and $349 respectively.
iPod (第5代)
Preview
Preview
iPod (第5代)
Release Date
2005.10
Discontinued
2006.09
Color
Storage:
30GB60GB
Height: 103.5mm
Width: 61.8mm
Thickness: 11mm
Weight: 136-157g
2.5"
Color LCD with LED backlight
Resolution:
320 x 240
30-pin dock connector:
1
Stereo mini jack:
1
Charging:
FireWire, 30-pin connector
Bluetooth:
None
AAC
MP3
MP3 VBR
Audible
Apple Lossless
AIFF
WAV
H.264 video (up to 768 Kbps, 320 by 240 pixels, 30 fps)
H.264 Baseline Profile up to Level 1.3 with AAC-LC audio (up to 160 Kbps, 48kHz, stereo)
MPEG-4 video (up to 2.5 Mbps, 480 by 480 pixels, 30 fps)
.m4v, .mp4, and .mov file formats
Video: Up to 2-3 hoursAudio: Up to 14-20 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1136
MA002LL/AWhite 30GB
MA146LL/ABlack 30GB
MA003LL/AWhite 60GB
MA147LL/ABlack 60GB
At the "One more thing..." event on October 12, 2005, Apple announced the fifth-generation iPod, the first to support video playback (MPEG-4 and H.264 at resolutions up to 640x480 and 320x240 respectively). Available in 30GB ($299) and 60GB ($399) capacities, it featured a 2.5-inch 65,536-color (16-bit) screen and could output video to an external TV via an AV cable.
iPod (U2 特别版 彩屏版)
Preview
Preview
iPod (U2 特别版 彩屏版)
Release Date
2005.06
Discontinued
2005.10
Color
Storage:
20GB
Height: 104mm
Width: 61mm
Thickness: 16mm
Weight: 167g
2"
65,536-color LCD with LED backlight
Resolution:
220 x 176
30-pin dock connector:
1
3.5 mm headphone jack:
1
Charging:
FireWire, 30-pin connector
Bluetooth:
None
AAC
MP3
MP3 VBR
Audible
Apple Lossless
AIFF
WAV
Video playback not supported
Audio: Up to 15 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1099
MA127LL/ABlack
On June 28, 2005, Apple released the iPod U2 Special Edition with Color Display as it merged the standard iPod and iPod photo lines. This model featured a color screen and photo capabilities at a reduced price of $329. It was discontinued on October 12, 2005, with the launch of the fifth-generation iPod.
-
iPod (彩屏版)(4th Generation)
Preview
Preview
iPod (彩屏版)
(4th Generation)
Release Date
2005.06
Discontinued
2005.10
Color
Storage:
20GB60GB
Height: 104mm
Width: 61mm
Thickness: 16mm
Weight: 167-181g
2"
65,536-color LCD with LED backlight
Resolution:
220 x 176
30-pin dock connector:
1
3.5 mm headphone jack:
1
Charging:
FireWire, 30-pin connector
Bluetooth:
None
AAC
MP3
MP3 VBR
Audible
Apple Lossless
AIFF
WAV
Video playback not supported
Audio: Up to 15 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1099
MA079LL/AWhite 20GB
M9830LL/AWhite 60GB
On June 28, 2005, Apple merged the iPod and iPod photo product lines, bringing all photo features to the standard iPod series and discontinuing all grayscale models. The 20GB model remained at $299, while the 60GB model was reduced from $449 to $399. The $349 30GB iPod photo was also discontinued. Apple also released iTunes 4.9 at this time, adding support for podcasts.
iPod photo
Preview
Preview
iPod photo
Release Date
2004.10
Discontinued
2005.06
Color
Storage:
30GB40GB60GB
Height: 104mm
Width: 61mm
Thickness: 16mm
Weight: 167-181g
2"
65,536-color LCD with LED backlight
Resolution:
220 x 176
30-pin dock connector:
1
3.5 mm headphone jack:
1
Charging:
FireWire, 30-pin connector
Bluetooth:
None
AAC
MP3
MP3 VBR
Audible
Apple Lossless
AIFF
WAV
Video playback not supported
Audio: Up to 15 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1099
M9829LL/AWhite 30GB
M9585LL/AWhite 40GB
M9586LL/AWhite 60GB
Apple announced iPod photo (originally iPod Photo) on October 26, 2004, featuring a 220x176 pixel screen displaying 65,536 colors. It could store and display JPEG, BMP, GIF, TIFF, and PNG images. It was 1 mm thicker than the standard fourth-generation iPod and offered up to 15 hours of battery life. Initially available in 40GB ($499) and 60GB ($599) versions, a 30GB model was introduced on February 23, 2005, while the 40GB model was retired and the price of the 60GB model was reduced.
iPod U2 特别版(3rd Generation)
Preview
Preview
iPod U2 特别版
(3rd Generation)
Release Date
2004.10
Discontinued
2005.06
Color
Storage:
20GB
Height: 104mm
Width: 61mm
Thickness: 15.7mm
Weight: 158g
2"
LCD with blue-white LED backlight
Resolution:
160 x 128
30-pin dock connector:
1
3.5 mm headphone jack:
1
Charging:
FireWire, 30-pin connector
Bluetooth:
None
AAC
MP3
MP3 VBR
Audible
Apple Lossless
AIFF
WAV
Video playback not supported
Audio: Up to 12 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1059
M9787LL/ABlack
On October 26, 2004, Apple announced the iPod U2 Special Edition in a black-and-red design, featuring a black front panel and a red Click Wheel (matching U2's "How to Dismantle an Atomic Bomb" album) with the signatures of U2 band members engraved on the back. It offered 20GB of storage for $349 and included a $50 iTunes Store coupon toward the purchase of "The Complete U2" digital box set containing over 400 U2 songs.
iPod (点按式转盘)
Preview
Preview
iPod (点按式转盘)
Release Date
2004.07
Discontinued
2005.06
Color
Storage:
20GB40GB
Height: 104mm
Width: 61mm
Thickness: 15.7mm
Weight: 158-176g
2"
LCD with blue-white LED backlight
Resolution:
160 x 128
30-pin dock connector:
1
3.5 mm headphone jack:
1
Charging:
FireWire, 30-pin connector
Bluetooth:
None
AAC
MP3
MP3 VBR
Audible
Apple Lossless
AIFF
WAV
Video playback not supported
Audio: Up to 12 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1059
M9282LL/AWhite 20GB
M9268LL/AWhite 40GB
Apple released the fourth-generation iPod on July 19, 2004. Slightly thinner than its predecessor, it was available in 20GB and 40GB capacities with up to 12 hours of battery life. It was the first full-sized iPod to feature the Apple Click Wheel from the iPod mini. The entry price was reduced to $299, with the 40GB model priced at $399.
iPod (基座接口)
Preview
Preview
iPod (基座接口)
Release Date
2003.04
Discontinued
2004.07
Color
Storage:
10GB15GB20GB30GB40GB
Height: 104mm
Width: 61mm
Thickness: 15.7mm
Weight: 158-176g
2"
LCD with white LED backlight
Resolution:
160 x 128
30-pin dock connector:
1
3.5 mm headphone jack:
1
Battery:
630mAh
Charging:
FireWire or Power Adapter
Bluetooth:
None
AAC
MP3
MP3 VBR
Audible
Apple Lossless
AIFF
WAV
Video playback not supported
Audio: Up to 8 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1040
M8976LL/AWhite 10GB
M8946LL/AWhite 15GB
M9460LL/AWhite 15GB
M9244LL/AWhite 20GB
M9245LL/AWhite 30GB
M8948LL/AWhite 40GB
The iPod (Dock Connector) featured a new design and features, being thinner and lighter than previous models. It replaced the dedicated FireWire port with a "dock connector," supporting connections to both Mac and PC via FireWire or USB 2.0. The body was more rounded, and the four buttons were moved above the wheel in a solid-state backlit design. Apple also added several software enhancements to the series that were not made available for older models.
-
iPod (触控式转盘)
Preview
Preview
iPod (触控式转盘)
Release Date
2002.07
Discontinued
2003.04
Color
Storage:
10GB20GB
Height: 101.6mm
Width: 61.8mm
Thickness: 18.9mm
Weight: 185-204g
2"
LCD with white LED backlight
Resolution:
160 x 128
Firewire:
1
3.5 mm stereo headphone jack:
1
Battery:
1200mAh
Charging:
6-pin FireWire or Power Adapter
Bluetooth:
None
AAC
MP3
MP3 VBR
Audible
Apple Lossless
AIFF
WAV
Video playback not supported
Audio: Up to 10 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
A1019
M8737LL/AWhite 10GB Mac
M8740LL/AWhite 10GB PC
M8738LL/AWhite 20GB Mac
M8741LL/AWhite 20GB PC
The iPod was a hard drive-based digital music player smaller than most portable cassette players. By using a 1.8-inch hard drive, Apple ensured the iPod was smaller than most other hard drive MP3 players while offering far more storage than flash-based players. The initial 5GB model debuted at $399. A 10GB model was added in March 2002 for $499. In July 2002, Apple replaced the mechanical scroll wheel with the solid-state Touch Wheel and added a 20GB model for $499, while reducing the prices of the 5GB and 10GB models to $299 and $399 respectively (the 5GB model retained the scroll wheel for a time). Additionally, Apple made the iPod available to Windows users for the first time.
-
iPod (滚动式转盘)
Preview
Preview
iPod (滚动式转盘)
Release Date
2001.10
Discontinued
2003.04
Color
Storage:
5GB
Height: 101.6mm
Width: 61.8mm
Thickness: 19.9mm
Weight: 184.2g
2"
LCD with white LED backlight
Resolution:
160 x 128
Firewire:
1
3.5 mm stereo headphone jack:
1
Battery:
1200mAh
Charging:
6-pin FireWire or Power Adapter
Bluetooth:
None
AAC
MP3
MP3 VBR
Audible
WAV
AIFF
Video playback not supported
Audio: Up to 10 hours
Operating Temp: 32° to 95° F (0° to 35° C)
Non-operating Temp: -4° to 113° F (-20° to 45° C)
Relative Humidity: 5% to 95% noncondensing
Max Altitude: 10,000 feet (3000 m)
M8541
M8513LL/AWhite 5GB Mac
M8513LL/BWhite 5GB Mac (2002年7月)
M8697LL/AWhite 5GB PC (2002年7月)
The iPod was a hard drive-based digital music player smaller than most portable cassette players. By using a 1.8-inch hard drive, Apple made the iPod smaller than most other hard drive MP3 players while offering significantly more storage than flash players. The initial 5GB model launched at $399. A 10GB model was added in March 2002 for $499, and a 20GB model followed in July 2002, along with the first Windows support.
