Magic Keyboard Specs History

Horizontal Scroll: Shift + Mouse Wheel
Updated: 2026/01/03
Device Count: 15
Compare
Fullscreen
Zoom(100%)
Dark Mode
中文站点
ModelBasicDevice InfoOther
Basic Info
System Requirements
Key Count
Connector
Power Supply
Description
Model Numbers
Size & Weight

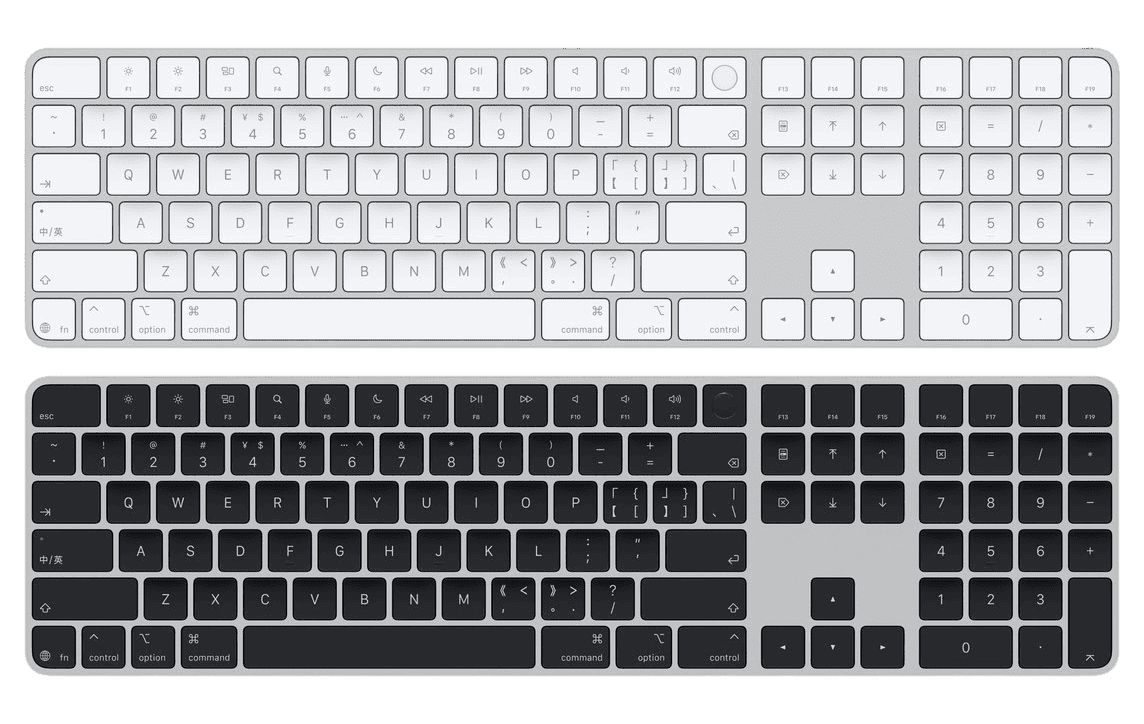

Magic Keyboard(with Touch ID and Numeric Keypad) (USB-C)
Preview
Preview
Magic Keyboard
(with Touch ID and Numeric Keypad) (USB-C)
Release Date
2024.10
Key Color
Case Color
Mac with Apple silicon running macOS 15.1 or later
Total Keys: 109
Alphanumeric Keys: 47
Special Keys:
Touch ID:1
功能键:19
Bluetooth / USB-C
Built-in battery, lasts about a month or more
Magic Keyboard with Touch ID and Numeric Keypad was initially available only in silver with white keys. In March 2022, a black-key version, initially bundled with Mac Pro, was updated to the new design and made available as a standalone purchase. The charging port was updated to USB-C in October 2024.
A3119
Height: 11.49mm
Width: 41.87mm
Thickness: 0.41-1.09mm
Weight: 0.369 kg

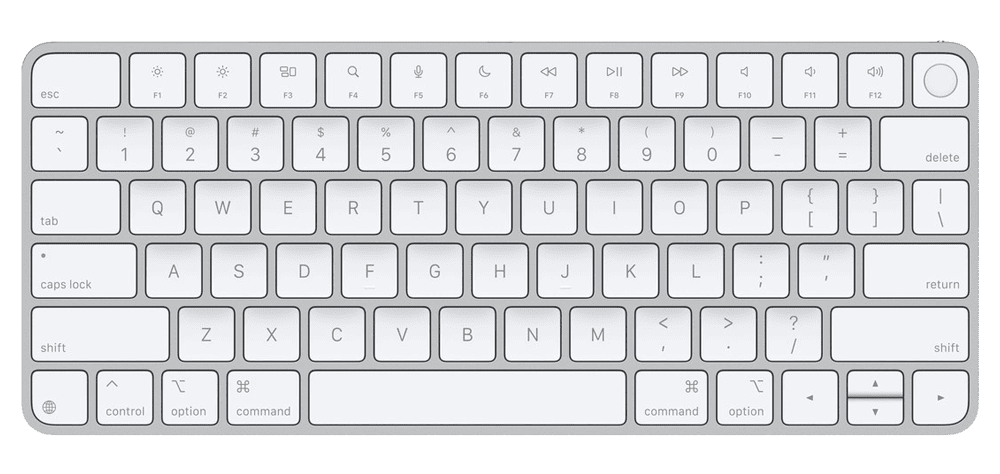

Magic Keyboard(with Touch ID) (USB-C)
Preview
Preview
Magic Keyboard
(with Touch ID) (USB-C)
Release Date
2024.10
Key Color
Case Color
Mac with Apple silicon running macOS 15.1 or later
Total Keys: 78
Alphanumeric Keys: 47
Special Keys:
Touch ID:1
功能键:12
Bluetooth / USB-C
Built-in battery, lasts about a month or more
The new Magic Keyboard design introduced in 2021 features an aluminum enclosure, keys with asymmetric rounded corners, the eject key reassigned to sleep, the fn key reassigned to input source switching, and F4–F6 keys reassigned to Spotlight, Dictation/Siri, and Do Not Disturb. Models with this design also include a Touch ID sensor (replacing the eject key). The Touch ID sensor scans fingerprints to unlock Mac models with Apple M-series chips. Keyboards bundled with the M1 iMac also feature color-matched aluminum finishes. The charging port was updated to USB-C in October 2024.
A3118
Height: 11.49mm
Width: 27.89mm
Thickness: 0.41-1.09mm
Weight: 0.243 kg

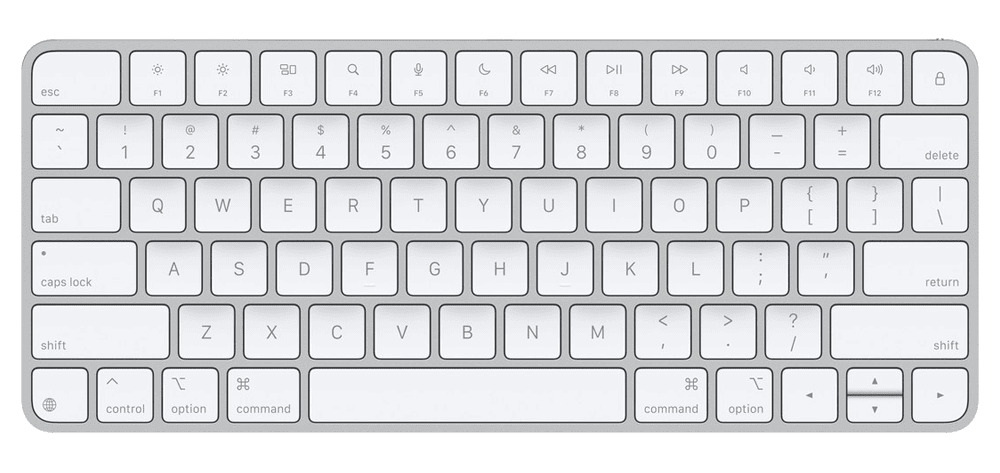

Magic Keyboard(with Lock Key) (USB-C)
Preview
Preview
Magic Keyboard
(with Lock Key) (USB-C)
Release Date
2024.10
Key Color
Case Color
Mac running macOS 15.1 or later
iPad running iPadOS 14.5 or later
iPhone running iOS 14.5 or later
Apple Vision Pro running visionOS 2.1 or later
Total Keys: 78
Alphanumeric Keys: 47
Special Keys:
Lock键:1
功能键:12
Bluetooth / USB-C
Built-in battery, lasts about a month or more
The new Magic Keyboard design introduced in 2021 features an aluminum enclosure, keys with asymmetric rounded corners, the eject key reassigned to sleep, the fn key reassigned to input source switching, and F4–F6 keys reassigned to Spotlight, Dictation/Siri, and Do Not Disturb. The charging port was updated to USB-C in October 2024.
A3203
Height: 11.49mm
Width: 27.9mm
Thickness: 0.41-1.09mm
Weight: 0.239 kg
Magic Keyboard(with Touch ID and Numeric Keypad)
Preview
Preview
Magic Keyboard
(with Touch ID and Numeric Keypad)
Release Date
2021.05
Key Color
Case Color
Mac with Apple silicon running macOS 11.4 or later
Total Keys: 109
Alphanumeric Keys: 47
Special Keys:
Touch ID:1
功能键:19
Bluetooth / Lightning
Built-in battery, lasts about a month or more
The new Magic Keyboard design introduced in 2021 features an aluminum enclosure, keys with asymmetric rounded corners, the eject key reassigned to sleep, the fn key reassigned to input source switching, and F4–F6 keys reassigned to Spotlight, Dictation/Siri, and Do Not Disturb. Models with this design also include a Touch ID sensor (replacing the eject key). The Touch ID sensor scans fingerprints to unlock modern Mac models with Apple silicon. Keyboards bundled with the colorful M1 iMac also feature color-matched aluminum finishes. Magic Keyboard with Touch ID and Numeric Keypad was initially available only in silver with white keys. In March 2022, a black-key version, initially bundled with Mac Pro, was updated to the new design and made available as a standalone purchase.
A2520
Height: 11.49mm
Width: 41.87mm
Thickness: 0.41-1.09mm
Weight: 0.369 kg
Magic Keyboard(with Touch ID)
Preview
Preview
Magic Keyboard
(with Touch ID)
Release Date
2021.05
Key Color
Case Color
Mac with Apple silicon running macOS 11.4 or later
Total Keys: 78
Alphanumeric Keys: 47
Special Keys:
Touch ID:1
功能键:12
Bluetooth / Lightning
Built-in battery, lasts about a month or more
The new Magic Keyboard design introduced in 2021 features an aluminum enclosure, keys with asymmetric rounded corners, the eject key reassigned to sleep, the fn key reassigned to input source switching, and F4–F6 keys reassigned to Spotlight, Dictation/Siri, and Do Not Disturb. Models with this design also include a Touch ID sensor (replacing the eject key). The Touch ID sensor scans fingerprints to unlock modern Mac models with Apple silicon. Keyboards bundled with the colorful M1 iMac also feature color-matched aluminum finishes.
A2449
Height: 11.49mm
Width: 27.89mm
Thickness: 0.41-1.09mm
Weight: 0.243 kg
Magic Keyboard(with Lock Key)
Preview
Preview
Magic Keyboard
(with Lock Key)
Release Date
2021.05
Key Color
Case Color
Mac running macOS 11.3 or later
iPad running iPadOS 14.5 or later
iPhone and iPod touch running iOS 14.5 or later
Total Keys: 78
Alphanumeric Keys: 47
Special Keys:
Lock键:1
功能键:12
Bluetooth / Lightning
Built-in battery, lasts about a month or more
The new Magic Keyboard design introduced in 2021 features an aluminum enclosure, keys with asymmetric rounded corners, the eject key reassigned to sleep, the fn key reassigned to input source switching, and F4–F6 keys reassigned to Spotlight, Dictation/Siri, and Do Not Disturb. This update also discontinued the Space Gray Magic Keyboard with Numeric Keypad.
A2450
Height: 11.49mm
Width: 27.9mm
Thickness: 0.41-1.09mm
Weight: 0.239 kg
Magic Keyboard(with Numeric Keypad)
Preview
Preview
Magic Keyboard
(with Numeric Keypad)
Release Date
2017.06
Key Color
Case Color
Bluetoothenabled Mac running macOS 10.12.4 or later
iOS device running iOS 10.3 or later
Total Keys: 109
Alphanumeric Keys: 47
Special Keys:
Eject键:1
功能键:19
Bluetooth / Lightning
Built-in battery, lasts about a month or more
On June 5, 2017, the Magic Keyboard received a minor visual update with changes to the Control and Option key symbols. A new version, Magic Keyboard with Numeric Keypad, was also introduced to replace the discontinued wired Apple Keyboard. It features a longer layout with a numeric keypad and a different arrow key arrangement. The Space Gray Magic Keyboard with Numeric Keypad (with black keys) was initially bundled with iMac Pro and later sold separately. A silver version with black keys was bundled with the 2019 Mac Pro. The Space Gray option was discontinued in May 2021.
A1843
Height: 11.49mm
Width: 41.87mm
Thickness: 0.41-1.09mm
Weight: 0.39 kg
Magic Keyboard
Preview
Preview
Magic Keyboard
Release Date
2015.10
Key Color
Case Color
Bluetoothenabled Mac running OS X v10.11 or later
Total Keys: 78
Alphanumeric Keys: 47
Special Keys:
Eject键:1
功能键:12
Bluetooth / Lightning
Built-in battery, lasts about a month or more
On October 13, 2015, Apple released an updated wireless keyboard that was 13% smaller than its predecessor, featured a built-in rechargeable battery charged via Lightning, and added a new power switch.
A1644
Height: 11.49mm
Width: 27.9mm
Thickness: 0.41-1.09mm
Weight: 0.231 kg
Apple Keyboard(Aluminum)
Preview
Preview
Apple Keyboard
(Aluminum)
Release Date
2009.03
Key Color
Case Color
Mac with USB 1.1 or 2.0 port running Mac OS X v10.5.6
Total Keys: 78
Special Keys:
Eject键:1
功能键:12
USB 1.1 or 2.0
Bus powered via USB
Introduced with the early 2009 iMac models, this was a new wired version of the keyboard that, like its wireless counterpart, omitted the numeric keypad. The full version with the numeric keypad remained available as an option or standalone purchase.
A1242
Apple Wireless Keyboard(Aluminum)
Preview
Preview
Apple Wireless Keyboard
(Aluminum)
Release Date
2007.08
Key Color
Case Color
Bluetoothenabled Mac running Mac OS X v10.4.10 (A1255) or v10.5.8 (A1314)
Total Keys: 78
Alphanumeric Keys: 47
Special Keys:
Eject键:1
功能键:12
Bluetooth
Three AA batteries (A1255) / Two AA batteries (A1314)
On August 7, 2007, Apple released a redesigned Apple Wireless Keyboard, similar to the wired Apple Keyboard, featuring a thinner aluminum enclosure. It added media controls on function keys and Dashboard controls. The layout mirrored the MacBook, omitting the numeric keypad. A minor update was released in October 2009, requiring only two AA batteries and featuring slight visual tweaks.
A1255 / A1314
Apple Keyboard(with Numeric Keypad)
Preview
Preview
Apple Keyboard
(with Numeric Keypad)
Release Date
2007.08
Key Color
Case Color
Mac with USB 1.1 or 2.0 port running Mac OS X v10.6.8
Total Keys: 109
Alphanumeric Keys: 47
Special Keys:
Eject键:1
功能键:19
USB 1.1 or 2.0
Bus powered via USB
The Apple Keyboard introduced in 2007 featured a solid aluminum enclosure, similar to the companion wireless model. It was the first model to omit the long-standing Apple logo (solid or open). After the release of the A1242 model in March 2009, it was renamed 'Apple Keyboard with Numeric Keypad'. It featured a downstream USB 2.0 port on each end. Discontinued in June 2017, it was the last wired keyboard produced by Apple.
A1243
Apple Wireless Keyboard(2003)
Preview
Preview
Apple Wireless Keyboard
(2003)
Release Date
2003.09
Key Color
Case Color
Bluetoothenabled Mac running Mac OS X v10.2.6 or later
Total Keys: 109
Alphanumeric Keys: 47
Special Keys:
音量键:3
Eject键:1
功能键:16
Bluetooth 1.1
Four AA alkaline batteries
In September 2003, Apple released its first wireless keyboard. Based on Bluetooth technology, it shipped alongside the Apple Wireless Mouse. The keyboard's appearance was similar to the Apple Keyboard released four months earlier, with white keys in a clear enclosure, but without USB ports on the back. It was powered by four AA batteries with a claimed battery life of nine months. It was discontinued in August 2007.
A1016
Apple Keyboard
Preview
Preview
Apple Keyboard
Release Date
2003.05
Key Color
Case Color
Mac with USB port running Mac OS 9.0.4 or later
Total Keys: 109
Alphanumeric Keys: 47
Special Keys:
音量键:3
Eject 键:1
功能键:16
USB
Bus powered via USB
On May 6, 2003, Apple released the Apple Keyboard alongside the new eMac (ATI Graphics). The enclosure was similar to the white Apple Pro Keyboard, but the USB ports were moved to the back and the adjustable support was replaced by fixed feet. It was discontinued in August 2007.
A1048
Apple Pro Keyboard
Preview
Preview
Apple Pro Keyboard
Release Date
2000.07
Key Color
Case Color
Mac with USB port running Mac OS 9.0.4 or later
Total Keys: 108
Alphanumeric Keys: 47
Special Keys:
音量键:3
Eject 键:1
功能键:15
USB
Bus powered via USB
The Apple Pro Keyboard was released in July 2000, replacing the Apple USB Keyboard. It restored standard keyboard dimensions, featured an iconic acrylic enclosure, and included two built-in USB ports. It was available in black and white and was discontinued in June 2003.
M7803
Apple USB Keyboard
Preview
Preview
Apple USB Keyboard
Release Date
1998.08
Key Color
Case Color
Macintosh with USB port running Mac OS 8.1 or later
Total Keys: 98
Alphanumeric Keys: 47
Special Keys:
电源键:1
功能键:12
USB
Bus powered via USB
The Apple USB Keyboard was released in August 1998 with the first iMac. It was the first Apple keyboard to use USB, replacing the Apple Desktop Bus. Featuring a translucent enclosure, it was initially available in Bondi Blue and later expanded to five fruit colors (Blueberry, Grape, Strawberry, Tangerine, and Lime) and Graphite to match different iMac models. It was the last Apple keyboard to feature a power button and was discontinued in July 2000.
M2452
