Mac mini(2026)
Preview
Mac mini
(2026)
Release Date
2026.08.25
OS Support
macOS 27→Latest
Color
M6
Super Core?:
4.8GHz × 2
Performance Cores:
4.5GHz × 4
Efficiency Cores:
3.2GHz × 6
GPU:
Apple G18G × 12
RAM:
16GB
24GB
32GB
M5 Pro (15-core/18-core)
Super Core?:
4.60GHz × 5/6
Performance Cores:
4.38GHz × 10/12
GPU:
Apple G17S × 16/20
RAM:
24GB
48GB
64GB
Unified Memory:
16GB24GB32GB48GB64GB
Memory type:
LPDDR5X (9600/10667 MT/s, 10667 on M6 24GB and up)
Storage:
256GB512GB1TB2TB4TB8TB
Memory Bandwidth:
153 GB/s (16GB) / 170 GB/s (24GB/32GB) (M6) 307 GB/s (M5 Pro)
M6
Config 13
6K 60Hz or 4K 165Hz (Thunderbolt)×2
5K 60Hz (Thunderbolt) or 4K 60Hz (HDMI)×1
Config 22
8K 60Hz or 5K 120Hz or 4K 240Hz×1
5K 60Hz (Thunderbolt) or 4K 60Hz (HDMI)×1
M5 Pro
Config 13
6K 60Hz or 4K 165Hz (Thunderbolt or HDMI)×3
Config 22
8K 60Hz or 5K 120Hz or 4K 240Hz×1
5K 120Hz or 4K 200Hz×1
Up to 8K (60Hz) or 4K (240Hz)
USB-C：
2 (front)(10Gbps)
Thunderbolt 4：
3 (M6)(40Gb/s)
Thunderbolt 5：
3 (M5 Pro)(120Gb/s)
2.5Gb Ethernet (10Gb optional)：
1
HDMI 2.1：
1
3.5 mm headphone jack (high-impedance support)：
1
Wi-Fi:
Apple N1, 802.11be Wi-Fi 7, Thread
Bluetooth:
Bluetooth 6.0
Power:
155W
Firmware Support: Apple iBoot
Drive Interface: Apple Fabric
Expansion Slots: None
Media Drives: No built-in optical drive
Power: 155W
Backup Battery: 3V BR1632 lithium battery
Line Voltage: 100-240 V AC
Power Consumption: Max continuous power 155 W
Process:
TSMC N2·M6
TSMC N3P·M5 Pro
Neural Engine:
Dual 16-core 76 TOPS (M6) / 16-core 38 TOPS (M5 Pro)
Height: 4.97cm
Width: 12.7cm
Thickness: 12.7cm
Weight: 0.67kg (M6)/0.73kg (M5 Pro)
A3534 (M6)
A3535 (M5 Pro)
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 90% (noncondensing)
Max Altitude: 5000 m
Mac18,5 (M6)
Mac17,16 (M5 Pro)
2 FCC IDs
Tech Specs

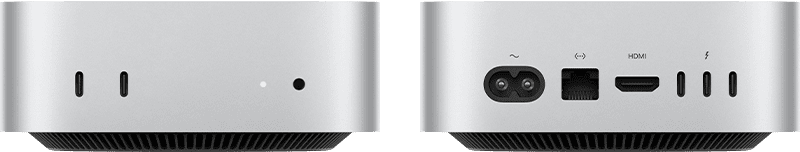

Mac mini(2024)
Preview
Mac mini
(2024)
Release Date
2024.10.29
OS Support
macOS 15→Latest
Color
M4
Performance Cores:
4.46G × 3
Efficiency Cores:
3.04G × 6
GPU:
Apple G17G × 10
RAM:
16GB
24GB
32GB
M4 Pro
Performance Cores:
4.51GHz × 8/10
Efficiency Cores:
2.59GHz × 4
GPU:
Apple G16S × 16/20
RAM:
24GB
48GB
64GB
Unified Memory:
16GB24GB32GB48GB64GB
Memory type:
LPDDR5X (7500/8533 MT/s)
Storage:
256GB512GB1TB2TB4TB8TB
Memory Bandwidth:
120 GB/s (M4) 273 GB/s (M4 Pro)
M4
Config 14
6K at 60Hz (Thunderbolt port)×2
5K at 60Hz (Thunderbolt port)×1
4K 60Hz(HDMI port)×1
M4 Pro
Config 13
6K 60Hz(Thunderbolt or HDMI port)×3
Config 22
6K at 60Hz (Thunderbolt port)×1
8K 60Hz(Thunderbolt or HDMI port)×1
Supports up to 7680 × 4320 resolution @ 60Hz
USB-C：
2 (10Gbps)
Thunderbolt 4：
3 (M4)(40Gb/s)
Thunderbolt 5：
3 (M4 Pro)(120Gb/s)
Gigabit Ethernet (Optional 10Gb)：
1
HDMI 2.1：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
Power:
155W
Firmware Support: Apple iBoot
DFU Port: The USB-C port in the middle of the back of the Mac
Drive Interface: Apple Fabric
Expansion Slots: None
Media Drives: No built-in optical drive
Power: 155W
Backup Battery: 3V BR2032 lithium battery
Line Voltage: 100-240 V AC
Power Consumption: 4 W (Idle) 65 W (Maximum) (M4)
5 W (Idle) 140 W (Maximum) (M4 Pro)
Process:
TSMC N3E
Neural Engine:
16-core 38 TOPS
Height: 4.97cm
Width: 12.7cm
Thickness: 12.7cm
Weight: 0.67/0.73kg
A3238 (M4)
A3239 (M4 Pro)
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 5000 m
Mac16,10
Mac16,11
2 FCC IDs
Tech SpecsRepair Manual

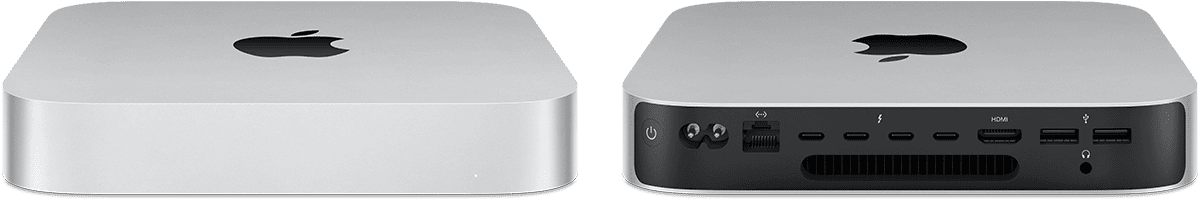

Mac mini(2023)
Preview
Mac mini
(2023)
Release Date
2023.01.18
OS Support
macOS 13→Latest
Color
M2
Performance Cores:
3.5GHz × 4
Efficiency Cores:
2.4GHz × 4
GPU:
Apple G14G × 10
RAM:
8GB
16GB
24GB
M2 Pro
Performance Cores:
3.5GHz × 6/8
Efficiency Cores:
2.4GHz × 4
GPU:
Apple G14S × 16/19
RAM:
16GB
32GB
Unified Memory:
8GB16GB24GB32GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
256GB512GB1TB2TB4TB8TB
Memory Bandwidth:
100 GB/s (M2) 200 GB/s (M2 Pro)
M2
Config 13
6K at 60Hz (Thunderbolt port)×1
5K at 60Hz (Thunderbolt port)×1
4K 60Hz(HDMI port)×1
M2 Pro
Config 13
6K at 60Hz (Thunderbolt port)×2
4K 60Hz(HDMI port)×1
Config 21
8K 60Hz(HDMI port)×1
Config 31
4K 240Hz(HDMI port)×1
Up to 4096 × 2160 pixels, 60Hz(HDMI, with M2 chip)Up to 7680 × 4320 pixels, 60Hz(HDMI, with M2 Pro chip)Up to 6016 × 3384 pixels, 60Hz(Thunderbolt port)
USB-A：
2 (5Gbps)
Thunderbolt 4：
2 (M2)(40Gb/s)
Thunderbolt 4：
4 (M2 Pro)(40Gb/s)
Gigabit Ethernet (Optional 10Gb)：
1
HDMI 2.1：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
Power:
185W
Firmware Support: Apple iBoot
DFU Port: The USB-C port on the far left of the back of the Mac
Drive Interface: Apple Fabric
Expansion Slots: None
Media Drives: No built-in optical drive
Power: 185W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 6 W (Idle) 85 W (CPU Max) 185 W (Maximum) (M2)
7 W (Idle) 94 W (CPU Max) 185 W (Maximum) (M2 Pro)
Process:
TSMC N5P
Neural Engine:
16-core 15.8 TOPS
Height: 3.58cm
Width: 19.7cm
Thickness: 19.7cm
Weight: 1.18/1.28kg
A2686 (M2)
A2816 (M2 Pro)
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 90% (noncondensing)
Max Altitude: 5000 m
Mac14,3
Mac14,12
2 FCC IDs
Tech SpecsRepair Manual

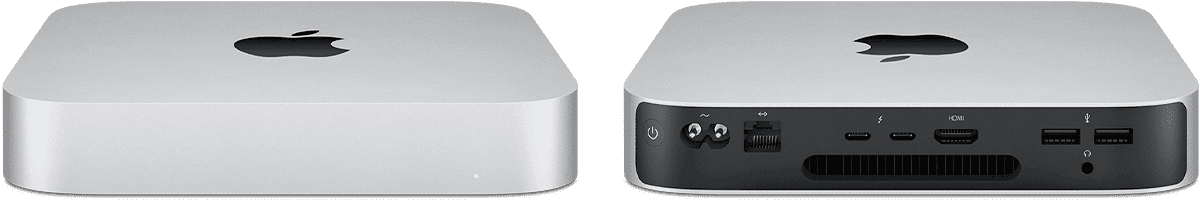

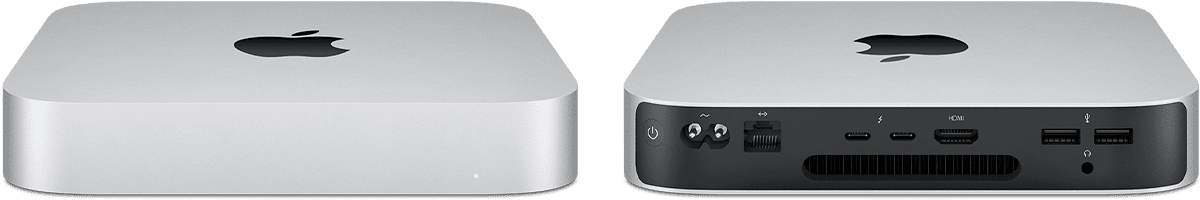

Mac mini(M1, 2020)
Preview
Mac mini
(M1, 2020)
Release Date
2020.11.11
OS Support
macOS 11→Latest
Color
M1
Performance Cores:
3.20GHz × 4
Efficiency Cores:
2.06GHz × 4
GPU:
Apple G13G × 8
RAM:
8GB
16GB
Unified Memory:
8GB16GB
Memory type:
LPDDR4X (4266 MT/s)
Storage:
256GB512GB1TB2TB
Memory Bandwidth:
68.25 GB/s
Display Support
Config 12
6K at 60Hz (Thunderbolt port)×1
4K at 60Hz (HDMI port)×1
Displays support
Config 10
Up to 6016 × 3384 pixels, 60Hz(Thunderbolt port)；Up to 4096 × 2160 pixels, 60Hz(HDMI port)。
USB-A：
2 (5Gbps)
Thunderbolt 3：
2 (40Gb/s)
Gigabit Ethernet (Optional 10Gb)：
1
HDMI 2.0：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ax Wi-Fi 6
Bluetooth:
Bluetooth 5.0
Power:
150W
Firmware Support: Apple iBoot
DFU Port: The USB-C port on the far right of the back of the Mac
Drive Interface: Apple Fabric
Expansion Slots: None
Media Drives: No built-in optical drive
Power: 150W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 6.8 W (Idle) 39 W (CPU Max) 150 W (Maximum)
Process:
TSMC N5
Neural Engine:
16-core 11 TOPS
Height: 3.6cm
Width: 19.7cm
Thickness: 19.7cm
Weight: 1.2kg
A2348
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 90% (noncondensing)
Max Altitude: 5000 m
Macmini9,1
Tech SpecsRepair Manual

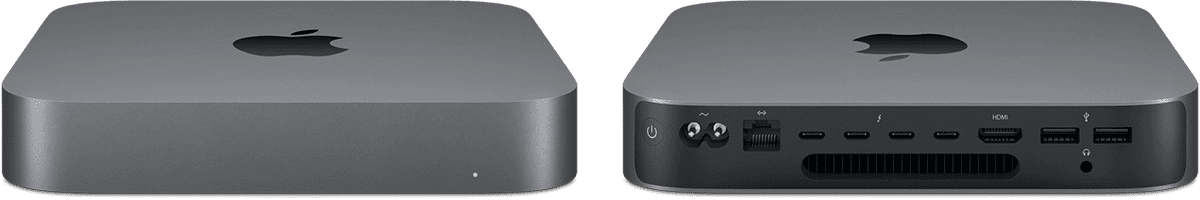

Mac mini(2018)
Preview
Mac mini
(2018)
Release Date
2018.10.31
OS Support
macOS 10.14→macOS 15
Color
Intel 4-Core i3
i3-8100B
Intel 6-Core i5
i5-8500B
Intel 6-Core i7
i7-8700B
Graphics:
Intel UHD Graphics 630
RAM:
8GB16GB32GB64GB
Memory type:
DDR4 (2666 MHz)
Storage:
128GB256GB512GB1TB2TB
Display Support
Config 13
5K at 60Hz (Thunderbolt port)×3
Config 23
4K at 60Hz (Thunderbolt port)×2
4K at 60Hz (HDMI port)×1
Config 33
5K at 60Hz (Thunderbolt port)×1
4K at 60Hz (Thunderbolt port)×1
4K at 30Hz (HDMI port)×1
Displays support
Config 20
Config 30
Up to5120 × 2880pixels, 60Hz(Thunderbolt port)；Up to4096 × 2160pixels, 60Hz(HDMI port)。
USB-A：
2 (5Gbps)
Thunderbolt 3：
4 (40Gb/s)
Gigabit Ethernet (Optional 10Gb)：
1
HDMI 2.0：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 5.0
Power:
150W
Firmware Support: Apple iBoot
DFU Port: The USB-C port on the far right of the back of the Mac
Drive Interface: Apple Fabric
Expansion Slots: None
Media Drives: No built-in optical drive
Power: 150W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 6 W (Idle) 20 W (CPU Max) 122 W (Maximum)
Process:
Intel 14nm (Coffee Lake)
Height: 3.6cm
Width: 19.7cm
Thickness: 19.7cm
Weight: 1.3kg
A1993
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 90% (noncondensing)
Max Altitude: 5000 m
Macmini8,1
Tech Specs

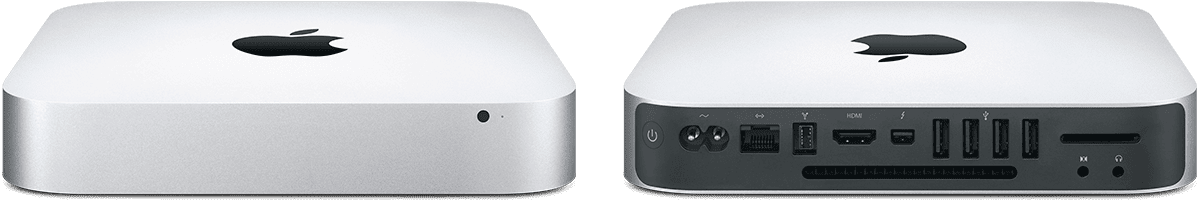

Mac mini(Late 2014)
Preview
Mac mini
(Late 2014)
Release Date
2014.10.17
OS Support
macOS 10.10→macOS 12
Color
Intel 2-Core i5
i5-4260U
Intel 2-Core i5
i5-4278U
Intel 2-Core i5
i5-4308U
Intel 2-Core i7
i7-4578U
Graphics:
Intel HD Graphics 5000 (1.4GHz)Intel Iris Graphics 5100 (2.6/2.8GHz)Intel Iris Graphics 5100
RAM:
4GB8GB16GB
Memory type:
LPDDR3 (1600 MHz)
Storage:
500GB1TB2TB256GB SSD512GB SSD1TB SSD1TB Fusion Drive2TB Fusion Drive3TB Fusion Drive
Display Support
Config 12
2560x1600 (Thunderbolt port)×2
Config 21
3840x2160 at 30Hz (HDMI port)×1
Displays support
Config 20
Up to3840 × 2160pixels, 30Hz(HDMI port)；Up to2560 × 1600pixels, 60Hz(Thunderbolt port)。
USB-A：
4 (5Gbps)
Thunderbolt 2：
2 (20Gb/s)
Gigabit Ethernet：
1
HDMI 1.4：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
Power:
150W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 6 Gbps Serial ATA (SATA) or PCIe
Expansion Slots: 1 - SDXC
Media Drives: No built-in optical drive (optional Apple USB SuperDrive)
Power: 150W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 6 W (Idle) 13 W (CPU Max) 85 W (Maximum)
Process:
Intel 22nm (Haswell)
Height: 3.6cm
Width: 19.7cm
Thickness: 19.7cm
Weight: 1.2kg
A1993
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
Macmini7,1
Tech Specs
Mac mini Server(Late 2012)
Preview
Mac mini Server
(Late 2012)
Release Date
2012.10.24
OS Support
OS X 10.8→macOS 10.15
Color
Intel 4-Core i7
i7-3615QM
Intel 4-Core i7
i7-3720QM
Graphics:
Intel HD Graphics 4000
RAM:
4GB8GB16GB
Memory type:
DDR3 (1600 MHz)
Storage:
256GB SSD512GB SSD2TB
Display Support
Config 12
2560x1600 (Thunderbolt port)×2
Config 21
1920x1200 (HDMI port)×1
Displays support
Config 20
Up to2560 × 1600(Thunderbolt port)or1920 × 1200(HDMI port)。
USB-A：
4 (5Gbps)
Thunderbolt：
1 (10 Gbps)
Firewire 800：
1 (8Gb/s)
Gigabit Ethernet：
1
HDMI：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 4.0
Power:
85W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 6.0 Gbps Serial ATA (SATA)
System Bus: Intel Direct Media Interface (DMI)
Expansion Slots: 1 - Secure Digital (SDXC)
Media Drives: No built-in optical drive (optional Apple USB SuperDrive)
Power: 85W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 11 W (Idle) 85 W (Maximum)
Process:
Intel 22nm (Ivy Bridge)
Height: 3.6cm
Width: 19.7cm
Thickness: 19.7cm
Weight: 1.3kg
A1347
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5 percent to 95 percent noncondensing
Max Altitude: 3,000 m
Macmini6,2
Not recorded
Tech Specs
Mac mini(Late 2012)
Preview
Mac mini
(Late 2012)
Release Date
2012.10.24
OS Support
macOS 10.8→macOS 10.15
Color
Intel 2-Core i5
i5-3210M
Intel 4-Core i7
i7-3615QM
Graphics:
Intel HD Graphics 4000
RAM:
4GB8GB16GB
Memory type:
DDR3 (1600 MHz)
Storage:
500GB1TB256GB SSD1TB Fusion Drive2TB Fusion Drive
Display Support
Config 12
2560x1600 (Thunderbolt port)×1
1920x1200 (HDMI port)×1
Displays support
Config 10
Up to2560 × 1600pixels(Thunderbolt port)or1920 × 1200pixels(HDMI port)。
USB-A：
4 (5Gbps)
Thunderbolt：
1 (10Gbps)
Firewire 800：
1 (8Gb/s)
Gigabit Ethernet：
1
HDMI：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11n Wi-Fi
Bluetooth:
Bluetooth 4.0
Power:
85W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 6 Gbps Serial ATA (SATA)
Expansion Slots: 1 - SDXC
Media Drives: No built-in optical drive (optional Apple USB SuperDrive)
Power: 85W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 11 W (Idle) 85 W (Maximum)
Process:
Intel 22nm (Ivy Bridge)
Height: 3.6cm
Width: 19.7cm
Thickness: 19.7cm
Weight: 1.22kg
A1347
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
Macmini6,1
Macmini6,2
Not recorded
Tech Specs
Mac mini Server(Mid 2011)
Preview
Mac mini Server
(Mid 2011)
Release Date
2011.07.21
OS Support
OS X 10.7→macOS 10.13
Color
Intel 4-Core i7
i7-2635QM
Graphics:
Intel HD Graphics 3000
RAM:
4GB8GB
Memory type:
DDR3 (1333 MHz)
Storage:
256GB512GB1TB1.5TB
Display Support
Config 12
2560x1600 (Thunderbolt port)×1
1920x1200 (HDMI port)×1
Displays support
Config 10
Up to2560 × 1600pixels(Thunderbolt port)or1920 × 1200pixels(HDMI port)。
USB-A：
4 (480Mbps)
Thunderbolt：
1 (10Gbps)
Firewire 800：
1 (8Gb/s)
Gigabit Ethernet：
1
HDMI：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 4.0
Power:
85W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 6.0 Gbps Serial ATA (SATA)
System Bus: Intel Direct Media Interface (DMI)
Expansion Slots: 1 - Secure Digital (SDXC)
Media Drives: No built-in optical drive (optional MacBook Air SuperDrive (MB397G/A))
Power: 85W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 12 W (Idle) 85 W (Maximum)
Process:
Intel 32nm (Sandy Bridge)
Height: 3.6cm
Width: 19.7cm
Thickness: 19.7cm
Weight: 1.37kg
A1347
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5 percent to 95 percent noncondensing
Max Altitude: 3,000 m
Macmini5,3
Not recorded
Tech Specs
Mac mini(Mid 2011)
Preview
Mac mini
(Mid 2011)
Release Date
2011.07.21
OS Support
macOS 10.7→macOS 10.13
Color
Intel 2-Core i5
i5-2415M
Intel 2-Core i5
i5-2520M
Intel 2-Core i7
i7-2620M
Graphics:
Intel HD Graphics 3000AMD Radeon HD 6630M
RAM:
2GB4GB8GB16GB
Memory type:
DDR3 (1333 MHz)
Storage:
500GB750GB256GB SSD512GB SSD1TB Fusion Drive
Display Support
Config 12
2560x1600 (Thunderbolt port)×1
1920x1200 (HDMI port)×1
Displays support
Config 10
Up to2560 × 1600pixels(Thunderbolt port)or1920 × 1200pixels(HDMI port)。
USB-A：
4 (5Gbps)
Thunderbolt：
1 (10Gbps)
Firewire 800：
1 (8Gb/s)
Gigabit Ethernet：
1
HDMI：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11n Wi-Fi
Bluetooth:
Bluetooth 4.0
Power:
85W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 6 Gbps Serial ATA (SATA)
Expansion Slots: 1 - SDXC
Media Drives: No built-in optical drive (optional external USB MacBook Air SuperDrive)
Power: 85W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 13 W (Idle) 85 W (Maximum)
Process:
Intel 32nm (Sandy Bridge)
Height: 3.6cm
Width: 19.7cm
Thickness: 19.7cm
Weight: 1.22kg
A1347
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
Macmini5,1
Macmini5,2
Macmini5,3
Not recorded
Tech Specs
Mac mini Server(Mid 2010)
Preview
Mac mini Server
(Mid 2010)
Release Date
2010.06.15
OS Support
OS X 10.6→macOS 10.13
Color
2-Core Core
Core 2 Duo P8800
Graphics:
NVIDIA GeForce 320M
RAM:
4GB8GB
Memory type:
DDR3 (1066 MHz)
Storage:
Dual 500GB
Display Support
Config 12
2560x1600(Mini DisplayPort)×1
1920x1200 (HDMI port)×1
Displays support
Config 10
Up to2560 × 1600pixels(Mini DisplayPortport)or1920 × 1200pixels(HDMI port)。
USB-A：
4 (480Mbps)
Firewire 800：
1 (800 MBit/s)
Gigabit Ethernet：
1
HDMI：
1
Mini DisplayPort：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1
Power:
85W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 3.0 Gbps Serial ATA (SATA)
System Bus: 1066 MHz
Expansion Slots: 1 - Secure Digital (SD)
Media Drives: No built-in optical drive (optional MacBook Air SuperDrive (MB397G/A))
Power: 85W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 10 W (Idle) 85 W (Maximum)
Process:
Intel 45nm (Penryn)
Height: 3.6cm
Width: 19.7cm
Thickness: 19.7cm
Weight: 1.29kg
A1347
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5 percent to 95 percent noncondensing
Max Altitude: 3,000 m
Macmini4,1
Not recorded
Tech Specs
Mac mini(Mid 2010)
Preview
Mac mini
(Mid 2010)
Release Date
2010.06.15
OS Support
OS X 10.6→macOS 10.13
Color
2-Core Core
Core 2 Duo P8600
2-Core Core
Core 2 Duo P8800
Graphics:
NVIDIA GeForce 320M
RAM:
2GB4GB8GB
Memory type:
DDR3 (1066 MHz)
Storage:
320GB500GB
Display Support
Config 12
2560x1600(Mini DP)×1
1920x1200 (HDMI port)×1
Displays support
Config 10
Up to2560 × 1600pixels(Mini DisplayPortport)or1920 × 1200pixels(HDMI port)。
USB-A：
4 (480Mbps)
Firewire 800：
1 (8Gb/s)
Gigabit Ethernet：
1
HDMI：
1
Mini DP：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1
Power:
85W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 3 Gbps Serial ATA (SATA)
Expansion Slots: 1 - SDXC
Media Drives: 8x Slot-loading SuperDrive (DVD±R DL/DVD±RW/CD-RW)
Power: 85W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 13 W (Idle) 85 W (Maximum)
Process:
Intel 45nm (Penryn)
Height: 3.6cm
Width: 19.7cm
Thickness: 19.7cm
Weight: 1.37kg
A1347
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
Macmini4,1
Not recorded
Tech Specs
Mac mini Server(Late 2009)
Preview
Mac mini Server
(Late 2009)
Release Date
2009.10.21
OS Support
OS X 10.6→OS X 10.11
Color
2-Core Core
Core 2 Duo P8700
Graphics:
NVIDIA GeForce 9400M
RAM:
4GB
Memory type:
DDR3 (1066 MHz)
Storage:
Dual 500GB
Display Support
Config 12
2560x1600(Mini DP)×1
1920x1200 (Mini-DVI port)×1
Displays support
Config 10
Up to2560 × 1600pixels(Mini DisplayPort)or1920 × 1200pixels(Mini-DVI port)。
USB-A：
5 (480Mbps)
Firewire 800：
1 (8Gb/s)
Gigabit Ethernet：
1
Mini DP：
1
Mini-DVI：
1
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1
Power:
110W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 3 Gbps Serial ATA (SATA)
Expansion Slots: None
Media Drives: No built-in optical drive (optional MacBook Air SuperDrive (MB397G/A))
Power: 110W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 14 W (Idle) 110 W (Maximum)
Process:
Intel 45nm (Penryn)
Height: 5.08cm
Width: 16.51cm
Thickness: 16.51cm
Weight: 1.31kg
A1283
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
Macmini3,1
Not recorded
Tech Specs
Mac mini(Late 2009)
Preview
Mac mini
(Late 2009)
Release Date
2009.10.21
OS Support
OS X 10.6→OS X 10.11
Color
2-Core Core
Core 2 Duo P7550
2-Core Core
Core 2 Duo P8700
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB4GB
Memory type:
DDR3 (1066 MHz)
Storage:
160GB320GB
Display Support
Config 12
2560x1600(Mini DP)×1
1920x1200 (Mini-DVI port)×1
Displays support
Config 10
Up to2560 × 1600pixels(Mini DisplayPort)or1920 × 1200pixels(Mini-DVI port)。
USB-A：
5 (480Mbps)
Firewire 800：
1 (8Gb/s)
Gigabit Ethernet：
1
Mini DP：
1
Mini-DVI：
1
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1
Power:
110W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 3 Gbps Serial ATA (SATA)
Expansion Slots: None
Media Drives: 8x Slot-loading SuperDrive (DVD±R DL/DVD±RW/CD-RW)
Power: 110W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 14 W (Idle) 110 W (Maximum)
Process:
Intel 45nm (Penryn)
Height: 5.08cm
Width: 16.51cm
Thickness: 16.51cm
Weight: 1.31kg
A1283
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
Macmini3,1
Not recorded
Tech Specs
Mac mini(Early 2009)
Preview
Mac mini
(Early 2009)
Release Date
2009.03.04
OS Support
OS X 10.6→OS X 10.11
Color
2-Core Core
Core 2 Duo P7350
2-Core Core
Core 2 Duo P8400
Graphics:
NVIDIA GeForce 9400M
RAM:
1GB2GB4GB
Memory type:
DDR3 (1066 MHz)
Storage:
120GB320GB
Display Support
Config 12
2560x1600(Mini DP)×1
1920x1200 (Mini-DVI port)×1
Displays support
Config 10
Up to2560 × 1600pixels(Mini DisplayPort)or1920 × 1200pixels(Mini-DVI port)。
USB-A：
5 (480Mbps)
Firewire 800：
1 (8Gb/s)
Gigabit Ethernet：
1
Mini DP：
1
Mini-DVI：
1
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1
Power:
110W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 3 Gbps Serial ATA (SATA)
Expansion Slots: None
Media Drives: 8x Slot-loading SuperDrive (DVD±R DL/DVD±RW/CD-RW)
Power: 110W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 13 W (Idle) 110 W (Maximum)
Process:
Intel 45nm (Penryn)
Height: 5.08cm
Width: 16.51cm
Thickness: 16.51cm
Weight: 1.31kg
A1283
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
Macmini3,1
Not recorded
Tech Specs
Mac mini(Mid 2007)
Preview
Mac mini
(Mid 2007)
Release Date
2007.08.08
OS Support
OS X 10.4→OS X 10.7
Color
2-Core Core
Core 2 Duo T5600
2-Core Core
Core 2 Duo T7200
Graphics:
Intel GMA 950
RAM:
1GB2GB
Memory type:
DDR2 (667 MHz)
Storage:
80GB120GB160GB
Display Support
Config 11
1920x1200 (DVI port)×1
Displays support
Config 10
Up to1920 × 1200pixels(DVI port)。
USB-A：
4 (480Mbps)
Firewire 400：
1 (4Gb/s)
Gigabit Ethernet：
1
DVI：
1
Wi-Fi:
802.11a/b/g
Bluetooth:
Bluetooth 2.0
Power:
110W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 1.5 Gbps Serial ATA (SATA)
Expansion Slots: None
Media Drives: Slot-loading Combo drive (DVD-ROM/CD-RW) or Slot-loading SuperDrive (DVD±R DL/DVD±RW/CD-RW)
Power: 110W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 23 W (Idle) 110 W (Maximum)
Process:
Intel 65nm (Merom)
Height: 5.08cm
Width: 16.51cm
Thickness: 16.51cm
Weight: 1.31kg
A1176
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
Macmini2,1
Not recorded
Tech Specs
Mac mini(Late 2006)
Preview
Mac mini
(Late 2006)
Release Date
2006.09
OS Support
OS X 10.4→OS X 10.6
Color
2-Core Core
Core Duo T2300
2-Core Core
Core Duo T2400
Graphics:
Intel GMA 950
RAM:
512MB1GB2GB
Memory type:
DDR2 (667 MHz)
Storage:
60GB80GB120GB160GB
Display Support
Config 11
1920x1200 (DVI port)×1
Displays support
Config 10
Up to1920 × 1200pixels(DVI port)or1920 × 1080pixels(VGAport)。
USB-A：
4 (480Mbps)
Firewire 400：
1 (4Gb/s)
Gigabit Ethernet：
1
DVI：
1
Wi-Fi:
802.11a/b/g
Bluetooth:
Bluetooth 2.0
Power:
110W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 1.5 Gbps Serial ATA (SATA)
Expansion Slots: None
Media Drives: 8x24x16x24x DVD/CD-RW Combo or 8x SuperDrive (DVD+R DL/DVD±RW/CD-RW)
Power: 110W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 23 W (Idle) 110 W (Maximum)
Process:
Intel 65nm (Yonah)
Height: 5.08cm
Width: 16.51cm
Thickness: 16.51cm
Weight: 1.31kg
A1176
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
Macmini1,1
Not recorded
-
Mac mini(Early 2006)
Preview
Mac mini
(Early 2006)
Release Date
2006.02.28
OS Support
OS X 10.4→OS X 10.7
Color
1-Core Core
Core Solo T1200
2-Core Core
Core Duo T2300
2-Core Core
Core Duo T2300E
2-Core Core
Core Duo T2400
2-Core Core
Core Duo T2500
2-Core Core
Core Duo T2600
Graphics:
Intel GMA 950
RAM:
512MB1GB2GB
Memory type:
DDR2 (667 MHz)
Storage:
60GB80GB100GB120GB
Display Support
Config 11
1920x1200 (DVI port)×1
Displays support
Config 10
Up to1920 × 1200pixels(DVI port)or1920 × 1080pixels(VGAport)。
USB-A：
4 (480Mbps)
Firewire 400：
1 (4Gb/s)
Gigabit Ethernet：
1
DVI：
1
Wi-Fi:
802.11a/b/g
Bluetooth:
Bluetooth 2.0
Power:
110W
Firmware Support: Intel Extensible Firmware Interface (EFI)
Drive Interface: 1.5 Gbps Serial ATA (SATA)
Expansion Slots: None
Media Drives: 8x24x16x24x DVD/CD-RW Combo or 8x SuperDrive (DVD+R DL/DVD±RW/CD-RW)
Power: 110W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 23 W (Idle) 110 W (Maximum)
Process:
Intel 65nm (Yonah)
Height: 5.08cm
Width: 16.51cm
Thickness: 16.51cm
Weight: 1.31kg
A1176
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
Macmini1,1
Not recorded
Tech Specs
Mac mini(Late 2005)
Preview
Mac mini
(Late 2005)
Release Date
2005.09
OS Support
OS X 10.4→OS X 10.5
Color
1-Core PowerPC
PowerPC G4 (7447A)
Graphics:
ATI Radeon 9200
RAM:
512MB
Memory type:
PC2700 DDR SDRAM (333 MHz)
Storage:
40GB80GB
Display Support
Config 11
1920x1200 (DVI port)×1
Displays support
Config 10
Up to1920 × 1200pixels(DVI port)or1920 × 1080pixels(VGAport)。
USB-A：
2 (480Mbps)
Firewire 400：
1 (4Gb/s)
10/100BASE-T：
1
DVI：
1
modem：
optional(56k v92)
3.5 mm headphone jack：
1
Wi-Fi:
AirPort Extreme card (802.11b/g)
Bluetooth:
Bluetooth 2.0 + EDR
Power:
85W
Firmware Support: Open Firmware
Drive Interface: Ultra ATA/100 (ATA-6)
Expansion Slots: None
Media Drives: 32x DVD/CD-RW Combo or 8x DVD±RW/CD-RW SuperDrive
Power: 85W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 32 W (Idle) 85 W (Maximum)
Process:
130 nm
Height: 5.08cm
Width: 16.51cm
Thickness: 16.51cm
Weight: 1.32kg
A1103
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
PowerMac10,2
-
-
Mac mini
Preview
Mac mini
Release Date
2005.01
OS Support
OS X 10.3→OS X 10.5
Color
1-Core PowerPC
PowerPC G4 (7447A)
Graphics:
ATI Radeon 9200
RAM:
256MB512MB1GB
Memory type:
PC2700 DDR SDRAM (333 MHz)
Storage:
40GB80GB
Display Support
Config 11
1920x1200 (DVI port)×1
Displays support
Config 10
Up to1920 × 1200pixels(DVI port)or1920 × 1080pixels(VGAport)。
USB-A：
2 (480Mbps)
Firewire 400：
1 (4Gb/s)
10/100BASE-T：
1
DVI：
1
modem：
Built-in(56k v92)
3.5 mm headphone jack：
1
Wi-Fi:
AirPort Extreme card (802.11b/g)
Bluetooth:
Bluetooth 1.1
Power:
85W
Firmware Support: Open Firmware
Drive Interface: Ultra ATA/100 (ATA-6)
Expansion Slots: None
Media Drives: 8x24x16x24x DVD/CD-RW Combo or optional 4x8x16x8x24x SuperDrive (DVD±RW/CD-RW)
Power: 85W
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 32 W (Idle) 85 W (Maximum)
Process:
130 nm
Height: 5.08cm
Width: 16.51cm
Thickness: 16.51cm
Weight: 1.32kg
A1103
Operating Temp: 10° to 35° C
Non-operating Temp: -40° to 47° C
Relative Humidity: 5% to 95% (noncondensing)
Max Altitude: 3000 m
PowerMac10,1
-
-
