Mac mini Server
(Late 2012)Mac mini Server Specs History
Horizontal Scroll: Shift + Mouse Wheel
Updated: 2026/03/12
Device Count: 3
Compare
Fullscreen
Zoom(100%)
Dark Mode
中文站点
| Model | Basic | Display | Connectivity | Firmware / Power | Other | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Basic Info | Chip / Memory / GPU | Max Display Support | External Resolution | Ports | Connectivity | Firmware | Power | Process / Neural Engine | Size & Weight | Model Numbers | Environment | Model ID | Docs | |

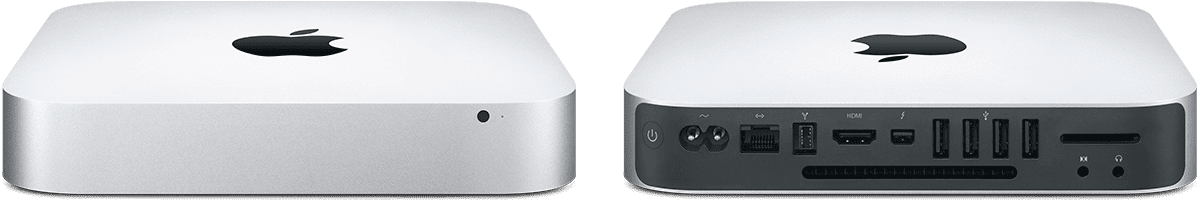

 Preview | Release Date 2012.10.24 OS Support OS X 10.8→macOS 10.15 Color | Intel 4-Core i7 i7-3615QM Intel 4-Core i7 i7-3720QM Graphics: Intel HD Graphics 4000 RAM: 4GB8GB16GB Storage: 256GB512GB2TB | Display Support Config 12 2560x1600 (Thunderbolt port)×2 Config 21 1920x1200 (HDMI port)×1 | Up to2560 × 1600(Thunderbolt port)or1920 × 1200(HDMI port)。 | USB-A： 4 (5Gbps) Thunderbolt： 1 (10 Gbps) Firewire 800： 1 (8Gb/s) Gigabit Ethernet： 1 HDMI： 1 SDXC card slot： 1 3.5 mm headphone jack： 1 | Wi-Fi: 802.11a/b/g/n Bluetooth: Bluetooth 4.0 Power: 85W | Firmware Support: Intel Extensible Firmware Interface (EFI) Drive Interface: 6.0 Gbps Serial ATA (SATA) System Bus: Intel Direct Media Interface (DMI) Expansion Slots: 1 - Secure Digital (SDXC) | Power: 85W Backup Battery: 3 V CR2032 Lithium battery Line Voltage: 100-240V AC Power Consumption: 11 W (Idle) 85 W (Maximum) | Process: Intel 22nm (Ivy Bridge) | Height: 3.6cm Width: 19.7cm Thickness: 19.7cm Weight: 1.3kg | A1347 | Operating Temp: 10° to 35° C Non-operating Temp: -40° to 47° C Relative Humidity: 5 percent to 95 percent noncondensing Max Altitude: 3,000 m | Macmini6,2 | |
 Preview Mac mini Server (Mid 2011) | Release Date 2011.07.21 OS Support OS X 10.7→macOS 10.13 Color | Intel 4-Core i7 i7-2635QM Graphics: Intel HD Graphics 3000 RAM: 4GB8GB Storage: 256GB512GB1TB1.5TB | Display Support Config 12 2560x1600 (Thunderbolt port)×1 1920x1200 (HDMI port)×1 | Up to2560 × 1600pixels(Thunderbolt port)or1920 × 1200pixels(HDMI port)。 | USB-A： 4 (480Mbps) Thunderbolt： 1 (10Gbps) Firewire 800： 1 (8Gb/s) Gigabit Ethernet： 1 HDMI： 1 SDXC card slot： 1 3.5 mm headphone jack： 1 | Wi-Fi: 802.11a/b/g/n Bluetooth: Bluetooth 4.0 Power: 85W | Firmware Support: Intel Extensible Firmware Interface (EFI) Drive Interface: 6.0 Gbps Serial ATA (SATA) System Bus: Intel Direct Media Interface (DMI) Expansion Slots: 1 - Secure Digital (SDXC) | Power: 85W Backup Battery: 3 V CR2032 Lithium battery Line Voltage: 100-240V AC Power Consumption: 12 W (Idle) 85 W (Maximum) | Process: Intel 32nm (Sandy Bridge) | Height: 3.6cm Width: 19.7cm Thickness: 19.7cm Weight: 1.37kg | A1347 | Operating Temp: 10° to 35° C Non-operating Temp: -40° to 47° C Relative Humidity: 5 percent to 95 percent noncondensing Max Altitude: 3,000 m | Macmini5,3 | |

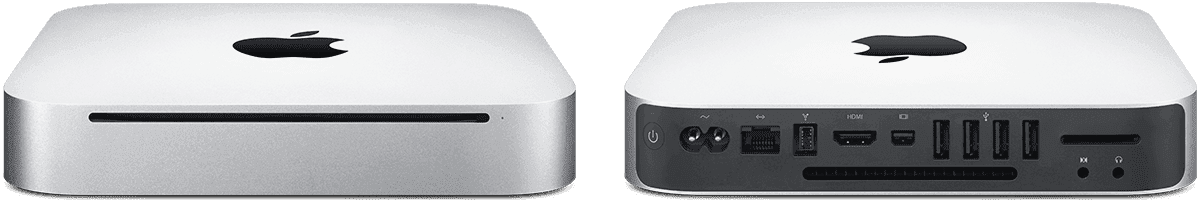

 Preview Mac mini Server (Mid 2010) | Release Date 2010.06.15 OS Support OS X 10.6→macOS 10.13 Color | 2-Core Core Core 2 Duo P8800 Graphics: NVIDIA GeForce 320M RAM: 4GB8GB Storage: Dual 500GB | Display Support Config 12 2560x1600(Mini DisplayPort)×1 1920x1200 (HDMI port)×1 | Up to2560 × 1600pixels(Mini DisplayPortport)or1920 × 1200pixels(HDMI port)。 | USB-A： 4 (480Mbps) Firewire 800： 1 (800 MBit/s) Gigabit Ethernet： 1 HDMI： 1 Mini DisplayPort： 1 SDXC card slot： 1 3.5 mm headphone jack： 1 | Wi-Fi: 802.11a/b/g/n Bluetooth: Bluetooth 2.1 Power: 85W | Firmware Support: Intel Extensible Firmware Interface (EFI) Drive Interface: 3.0 Gbps Serial ATA (SATA) System Bus: 1066 MHz Expansion Slots: 1 - Secure Digital (SD) | Power: 85W Backup Battery: 3 V CR2032 Lithium battery Line Voltage: 100-240V AC Power Consumption: 10 W (Idle) 85 W (Maximum) | Process: Intel 45nm (Penryn) | Height: 3.6cm Width: 19.7cm Thickness: 19.7cm Weight: 1.29kg | A1347 | Operating Temp: 10° to 35° C Non-operating Temp: -40° to 47° C Relative Humidity: 5 percent to 95 percent noncondensing Max Altitude: 3,000 m | Macmini4,1 |
