ModelBasicConnectivityFirmware / PowerOther
Basic Info
Chip / Memory / GPU
Ports
A/V I/O
Firmware
Expansion
Power
Size & Weight
Description
Model ID

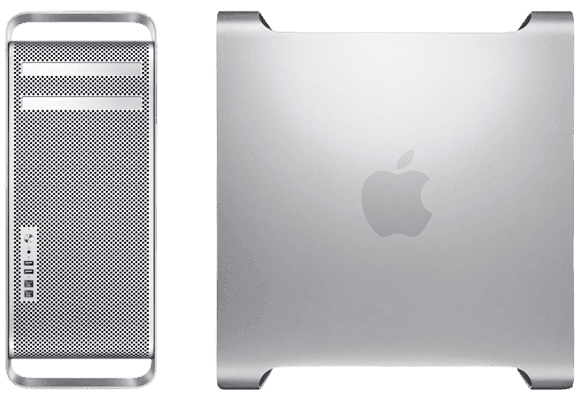

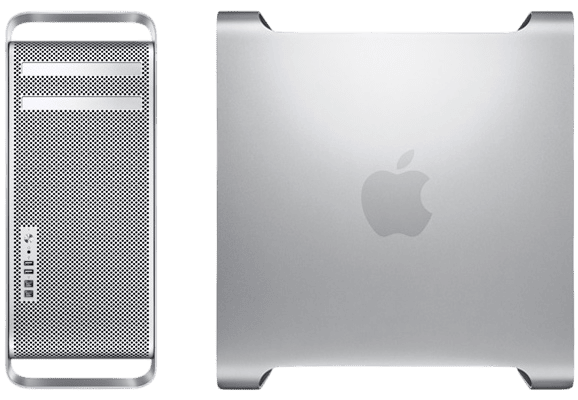

Mac Pro Server(Mid 2010)Preview
Mac Pro Server
(Mid 2010)
Release Date
2010.11
Discontinued
2012.06
OS Support
Mac OS X Server 10.6.4→macOS 10.14.6
Color
4/6/8/12-Core Intel
Intel Xeon "Bloomfield / Gulftown / Westmere"
RAM:
None built-inUp to 128 GB (8/12-Core actual), 64 GB (4-Core actual)
Storage:
1 or 2 TB 7200 rpm SATA or 512 GB SSD
Ethernet：
2 10/100/1000BASE-T (support for jumbo frames)
USB：
5 USB 2.0 (480 Mbps)
FireWire：
4 FireWire 800 (800 Mbps)
Fibre Channel：
Optional Dual/Quad-Channel 4 Gb Fibre Channel card
Display port：
2 Mini DisplayPort and 1 dual-link DVI
Audio input：
1 3.5 mm analog and 1 optical S/PDIF (Toslink) (24-bit 44.1 kHz)
Audio output：
2 3.5 mm analog and 1 optical S/PDIF (Toslink), 1 built-in speaker
Audio input：1 3.5 mm analog and 1 optical S/PDIF (Toslink) (24-bit 44.1 kHz)
Audio output：2 3.5 mm analog and 1 optical S/PDIF (Toslink), 1 built-in speaker
Firmware Support: Intel EFI
Drive Interface: 4 3.0 Gbps SATA controllers
System Bus: Intel QuickPath Interconnect (QPI) 4.8–6.4 GT/s
Memory Slots: 8 240-pin PC3-10600 (1333 MHz) DDR3 ECC SDRAM (1066 MHz in some configurations)
Memory Speed: 1066/1333 MHz
Expansion Slots: 2 16-lane PCIe 2.0 and 2 4-lane PCIe 2.0
Internal Bays: 4 3.5-inch SATA drive bays, 2 optical drive bays
Media Drives: 18x SuperDrive (DVD±R DL/DVD±RW/CD-RW)
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-120V or 200-240V AC
Power Consumption: 125 W (4-Core idle) ~ 285 W (12-Core CPU max)
Height: 51.1cm
Width: 20.6cm
Thickness: 47.5cm
Weight: 18.1 kg (4-Core) / 18.7 kg (8/12-Core)
The Mac Pro Server (Mid 2010) was the server variant of the Mac Pro tower, powered by Intel Xeon "Westmere" / "Bloomfield" / "Gulftown" processors, available in 4-Core, 8-Core, and 12-Core configurations. Introduced in November 2010 as a replacement for the discontinued Xserve, it included an unlimited-client license for Mac OS X Server. It featured no built-in memory and supported up to 128 GB of DDR3 ECC RAM (actual performance on 8/12-Core models). Graphics were handled by an ATI Radeon HD 5770 with 1 GB GDDR5 memory, featuring two Mini DisplayPorts and one dual-link DVI port. Storage options included 1–2 TB SATA drives or a 512 GB SSD. It also came with built-in AirPort Extreme Wi-Fi and dual Gigabit Ethernet. It was discontinued in June 2012.
MacPro5,1
Mac Pro Server(Mid 2012)Preview
Mac Pro Server
(Mid 2012)
Release Date
2012.06
Discontinued
2013.10
OS Support
Mac OS X Server 10.7.3→macOS 10.14.6
Color
6/12-Core Intel Xeon "Westmere
Intel Xeon "Westmere-EP"
RAM:
None built-inUp to 128 GB (12-Core actual), 64 GB (6-Core actual)
Storage:
1 or 2 TB 7200 rpm SATA or 512 GB SSD
Ethernet：
2 10/100/1000BASE-T (support for jumbo frames)
USB：
5 USB 2.0 (480 Mbps)
FireWire：
4 FireWire 800 (800 Mbps)
Fibre Channel：
Optional Dual/Quad-Channel 4 Gb Fibre Channel card
Display port：
2 Mini DisplayPort and 1 dual-link DVI
Audio input：
1 3.5 mm analog and 1 optical S/PDIF (Toslink)
Audio output：
2 3.5 mm analog and 1 optical S/PDIF (Toslink), 1 built-in speaker
Audio input：1 3.5 mm analog and 1 optical S/PDIF (Toslink)
Audio output：2 3.5 mm analog and 1 optical S/PDIF (Toslink), 1 built-in speaker
Firmware Support: Intel EFI
Drive Interface: 4 3.0 Gbps SATA controllers
System Bus: Intel QuickPath Interconnect (QPI) 4.8–6.4 GT/s
Memory Slots: 8 240-pin PC3-10600 (1333 MHz) DDR3 ECC SDRAM (1066 MHz in some configurations)
Memory Speed: 1066/1333 MHz
Expansion Slots: 2 16-lane PCIe 2.0 and 2 4-lane PCIe 2.0
Internal Bays: 4 3.5-inch SATA drive bays, 2 optical drive bays
Media Drives: 18x SuperDrive (DVD±R DL/DVD±RW/CD-RW)
Backup Battery: 3 V CR2032 Lithium battery
Line Voltage: 100-240V AC
Power Consumption: 162 W (6-Core idle) ~ 285 W (12-Core CPU max)
Height: 51.1cm
Width: 20.6cm
Thickness: 47.5cm
Weight: 18.1 kg (6-Core) / 18.7 kg (12-Core)
The Mac Pro Server (Mid 2012) was an updated version of the server variant of the Mac Pro tower, featuring faster Intel Xeon "Westmere-EP" processors in 6-Core and 12-Core configurations. Released in June 2012 as a performance boost over the Mid 2010 model, it continued to include an unlimited-client license for Mac OS X Server. It featured no built-in memory and supported up to 128 GB of DDR3 ECC RAM (actual performance on 12-Core models). The system was equipped with an ATI Radeon HD 5770 with 1 GB GDDR5 graphics memory, offering two Mini DisplayPorts and one dual-link DVI connector. Storage supported 1–2 TB SATA or 512 GB SSD options, with built-in 802.11n Wi-Fi and dual Gigabit Ethernet. It was discontinued in October 2013.
MacPro5,1
