How to compare different Mac models?

You can use MacDB's comprehensive comparison table to see differences in chip performance, battery life, and display specs across all Mac generations.

What is the latest Mac model parameter?

Detailed specifications comparison for Mac Studio, covering M1 Max and M1 Ultra variants. Compare chip performance differences, thermal system design, ports richness (Thunderbolt 4, USB-A, HDMI, Ethernet, SD card), silent thermal performance, expandability, pro software optimization, and multi-display connectivity for professional creators.

Mac Studio Specs History

Horizontal Scroll: Shift + Mouse Wheel

Updated: 2026/09/01

Device Count: 4

Search devices...CtrlK

Diff

Diff Only

Compare

Fullscreen

Zoom

Dark Mode

中文站点

Model	Basic		Display		Connectivity		Firmware / Power		Other
Model	Basic Info	Chip / Memory / GPU	Max Display Support	External Resolution	Ports	Connectivity	Firmware	Power	Process / Neural Engine	Size & Weight	Model Numbers	Environment	Model ID	Docs

Preview

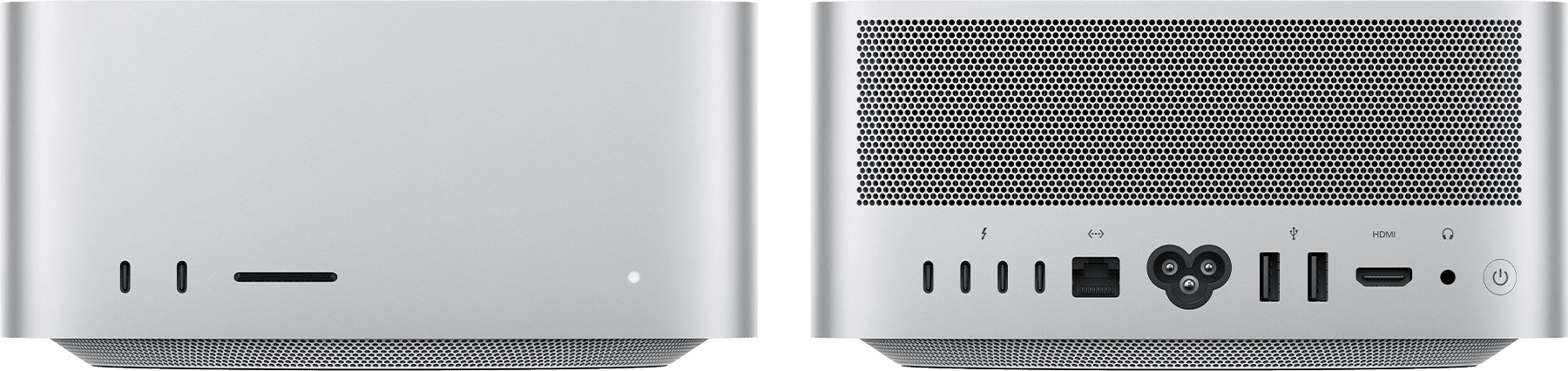

Mac Studio

(2026)

Release Date

2026.08.25

OS Support

macOS 27→Latest

Color

M5 Max (18核)

S-Core?:

4.60GHz × 6

Performance Cores:

4.38GHz × 12

Efficiency Cores:

- × 0

GPU:

Apple G17C × 32/40

RAM:

36GB (32核GPU)

48GB/64GB/128GB (40核GPU)

M5 Ultra

S-Core?:

4.60GHz × 10/12

Performance Cores:

4.38GHz × 20/24

Efficiency Cores:

- × 0

GPU:

Apple G17D × 64/80

RAM:

96GB (64核GPU)

256GB/512GB (80核GPU)

Unified Memory:

36GB48GB64GB96GB128GB256GB512GB

Storage:

512GB1TB2TB4TB8TB16TB

Memory Bandwidth:

460 GB/s (32-core GPU) / 614 GB/s (40-core GPU) (M5 Max) 1.2TB/s (M5 Ultra)

M5 Max

Config 15

6K 60Hz or 4K 165Hz (Thunderbolt)×4

5K 60Hz (HDMI)×1

Config 23

8K 60Hz or 5K 120Hz or 4K 240Hz (Thunderbolt)×2

5K 60Hz (HDMI)×1

M5 Ultra

Config 18

6K 60Hz or 4K 165Hz×8

Config 24

8K 60Hz or 5K 120Hz or 4K 240Hz×4

Config 34

5K 120Hz (Studio Display XDR)×4

Up to 8K (60Hz) or 4K (240Hz)

USB-C：

2 (M5 Max front)(10Gbps)

Thunderbolt 5：

4 (M5 Max) / 6 (M5 Ultra, incl. 2 front)(120Gb/s)

USB-A：

2 (5Gbps)

10Gb Ethernet port：

HDMI 2.1：

SDXC card slot (UHS-II)：

3.5 mm headphone jack (high-impedance support)：

Wi-Fi:

Apple N1, 802.11be Wi-Fi 7

Bluetooth:

Bluetooth 6.0

Power:

480 瓦

Firmware Support: Apple iBoot

Drive Interface: PCIe Gen 6 architecture

Expansion Slots: 1 - SDXC (UHS-II)

Power: 480 瓦

Backup Battery: 3 V BR2032 锂电池

Line Voltage: 100-240 V AC

Power Consumption: Max continuous power 480 W

Process:

TSMC N3P

Neural Engine:

16-core 38 TOPS (M5 Max) / 32-core 76 TOPS (M5 Ultra)

Height: 9.5cm

Width: 19.7cm

Thickness: 19.7cm

Weight: 2.73kg (M5 Max)/3.64kg (M5 Ultra)

A3545 (M5 Max)

A3546 (M5 Ultra)

Operating Temp: 10° to 35° C

Non-operating Temp: -40° to 47° C

Relative Humidity: 5% to 95% (non-condensing)

Max Altitude: 5000 m

Mac17,14 (M5 Max)

Mac17,15 (M5 Ultra)

Tech Specs

Preview

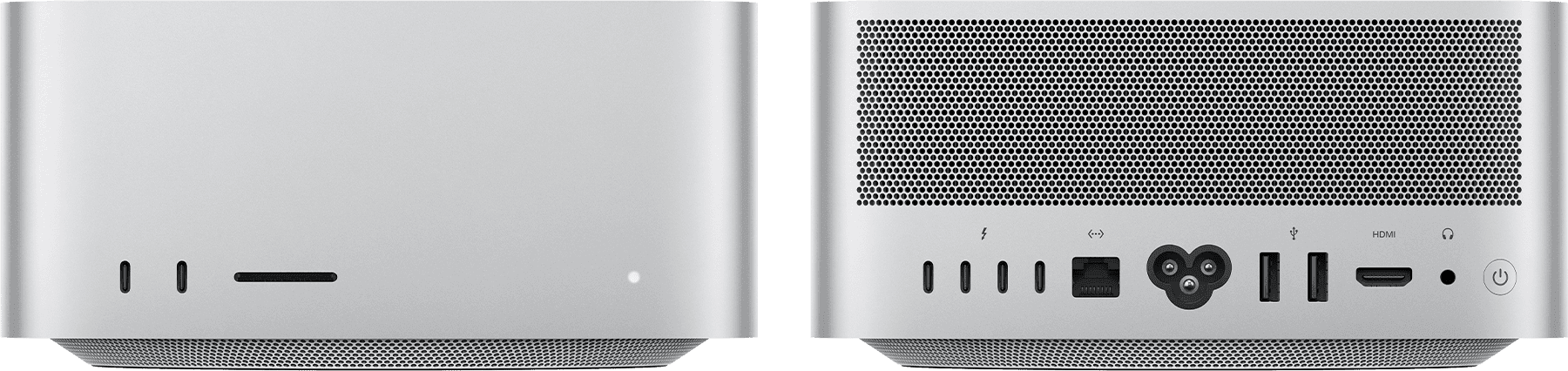

Mac Studio

(2025)

Release Date

2025.03

OS Support

macOS 15.3→latest

Color

M4 Max

Performance Cores:

4.51GHz × 10/12

Efficiency Cores:

2.59GHz × 4

GPU:

Apple G16C × 32/40

RAM:

36GB (32-core GPU)

48GB/64GB/128GB (40-core GPU)

M3 Ultra

Performance Cores:

4.05GHz × 20/24

Efficiency Cores:

2.57GHz × 8

GPU:

Apple G15D × 60/80

RAM:

96GB/256GB (60-core GPU)

256GB/512GB (80-core GPU)

Unified Memory:

36GB48GB64GB96GB128GB256GB512GB

Storage:

512GB1TB2TB4TB8TB16TB

Memory Bandwidth:

410 GB/s or 546 GB/s (M4 Max) 819 GB/s (M3 Ultra)

M4 Max

Config 15

6K 60Hz (Thunderbolt)×4

4K 144Hz (HDMI)×1

Config 23

6K 60Hz (Thunderbolt)×2

8K 60Hz (HDMI)×1

Config 33

6K 60Hz (Thunderbolt)×2

4K 240Hz (HDMI)×1

M3 Ultra

Config 18

6K 60Hz×8

Config 28

4K 144Hz×8

Config 34

8K 60Hz×4

Config 44

4K 240Hz×4

Up to 7680 x 4320 @ 60Hz

USB-C：

2 (M4 Max front)(10Gbps)

Thunderbolt 5：

4 (M4 Max) / 6 (M3 Ultra)(120Gb/s)

USB-A：

2 (5Gbps)

10Gb Ethernet port：

HDMI 2.1：

SDXC card slot (UHS-II)：

3.5 mm headphone jack：

Wi-Fi:

802.11ax Wi-Fi 6E

Bluetooth:

Bluetooth 5.3

Power:

480W

Firmware Support: Apple iBoot

DFU Port: The rightmost USB-C port when facing the back of the Mac

Drive Interface: Apple Fabric

Power: 480W

Backup Battery: 3 V BR2032 Lithium battery

Line Voltage: 100-240 V AC

Power Consumption: 6W idle 145W max (M4 Max)
9W idle 270W max (M3 Ultra)

Process:

TSMC N3E (M4 Max) / TSMC N3B (M3 Ultra)

Neural Engine:

16-core / 32-core

Height: 9.5cm

Width: 19.7cm

Thickness: 19.7cm

Weight: 2.74kg (M4 Max)/3.64kg (M3 Ultra)

A3143 (M4 Max)

A3389 (M3 Ultra)

Operating Temp: 10° to 35° C

Non-operating Temp: -40° to 47° C

Relative Humidity: 5% to 95% (noncondensing)

Max Altitude: 5000 m

Mac16,9 (M4 Max)

Mac15,14 (M3 Ultra)

Tech Specs Repair Manual

Preview

Mac Studio

(2023)

Release Date

2023.06

OS Support

macOS 13.4→latest

Color

M2 Max

Performance Cores:

3.69GHz × 8

Efficiency Cores:

2.42GHz × 4

GPU:

Apple G14C × 30/38

RAM:

32GB

64GB

96GB (38-core GPU)

M2 Ultra

Performance Cores:

3.69GHz × 16

Efficiency Cores:

2.42GHz × 8

GPU:

Apple G14D × 60/76

RAM:

64GB

128GB

192GB

Unified Memory:

32GB64GB96GB128GB192GB

Storage:

512GB1TB2TB4TB8TB

Memory Bandwidth:

400 GB/s (M2 Max) 800 GB/s (M2 Ultra)

M2 Max

Config 15

6K 60Hz (Thunderbolt)×4

4K 60Hz (HDMI)×1

Config 23

6K 60Hz (Thunderbolt)×2

8K 60Hz (HDMI)×1

Config 33

6K 60Hz (Thunderbolt)×2

4K 240Hz (HDMI)×1

M2 Ultra

Config 18

4K 60Hz×8

Config 26

6K 60Hz×6

Config 33

8K 60Hz×3

Up to 7680 x 4320 @ 60Hz

USB-C：

2 (M2 Max front)(10Gbps)

Thunderbolt 4：

4 (M2 Max) / 6 (M2 Ultra)(40Gb/s)

USB-A：

2 (5Gbps)

10Gb Ethernet port：

HDMI 2.1：

SDXC card slot (UHS-II)：

3.5 mm headphone jack：

Wi-Fi:

802.11ax Wi-Fi 6E

Bluetooth:

Bluetooth 5.3

Power:

370W

Firmware Support: Apple iBoot

DFU Port: The rightmost USB-C port when facing the back of the Mac

Drive Interface: Apple Fabric

Power: 370W

Backup Battery: 3 V BR2032 Lithium battery

Line Voltage: 100-240 V AC

Power Consumption: 9W idle 145W max (M2 Max)
10W idle 295W max (M2 Ultra)

Process:

TSMC N5P

Neural Engine:

16-core (M2 Max) / 32-core (M2 Ultra)

Height: 9.5cm

Width: 19.7cm

Thickness: 19.7cm

Weight: 2.7kg (M2 Max)/3.6kg (M2 Ultra)

A2901

Operating Temp: 10° to 35° C

Non-operating Temp: -40° to 47° C

Relative Humidity: 5% to 95% (noncondensing)

Max Altitude: 5000 m

Mac14,13 (M2 Max)

Mac14,14 (M2 Ultra)

Tech Specs Repair Manual

Preview

Mac Studio

(2022)

Release Date

2022.03

OS Support

macOS 12.3→latest

Color

M1 Max

Performance Cores:

3.23GHz × 8

Efficiency Cores:

2.06GHz × 2

GPU:

Apple G13C × 24/32

RAM:

32GB

64GB

M1 Ultra

Performance Cores:

3.23GHz × 16

Efficiency Cores:

2.06GHz × 4

GPU:

Apple G13D × 48/64

RAM:

64GB

128GB

Unified Memory:

32GB64GB128GB

Storage:

512GB1TB2TB4TB8TB

Memory Bandwidth:

400 GB/s (M1 Max) 800 GB/s (M1 Ultra)

Display Support

Config 15

6K 60Hz (Thunderbolt)×4

4K 60Hz (HDMI)×1

HDMI Up to 4096 x 2160 @ 60Hz；USB-C Up to 6016 x 3384 @ 60Hz

USB-C：

2 (M1 Max front)(10Gbps)

Thunderbolt 4：

4 (M1 Max) / 6 (M1 Ultra)(40Gb/s)

USB-A：

2 (5Gbps)

10Gb Ethernet port：

HDMI 2.0：

SDXC card slot (UHS-II)：

3.5 mm headphone jack：

Wi-Fi:

802.11ax Wi-Fi 6

Bluetooth:

Bluetooth 5.0

Power:

370W

Firmware Support: Apple iBoot

DFU Port: The rightmost USB-C port when facing the back of the Mac

Drive Interface: Apple Fabric

Power: 370W

Backup Battery: 3 V BR2032 Lithium battery

Line Voltage: 100-240 V AC

Power Consumption: 11W idle 115W max (M1 Max)
13W idle 215W max (M1 Ultra)

Process:

TSMC N5

Neural Engine:

16-core (M1 Max) / 32-core (M1 Ultra)

Height: 9.5cm

Width: 19.7cm

Thickness: 19.7cm

Weight: 2.7kg (M1 Max)/3.6kg (M1 Ultra)

A2615

Operating Temp: 10° to 35° C

Non-operating Temp: -40° to 47° C

Relative Humidity: 5% to 90% (noncondensing)

Max Altitude: 5000 m

Mac13,1 (M1 Max)

Mac13,2 (M1 Ultra)

Tech Specs Repair Manual
