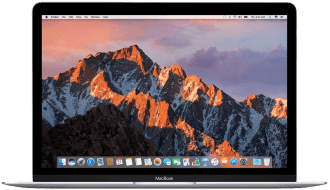

MacBook(Retina, 12-inch, 2017)
Preview
Preview
MacBook
(Retina, 12-inch, 2017)
Release Date
2017.06.06
OS Support
macOS 10.12macOS 13
Color
2-Core Intel m3
Intel m3-7Y32
Intel 2-Core i5
i5-7Y54
Intel 2-Core i7
i7-7Y75
Graphics:
Intel® HD 615
RAM:
8GB16GB
Storage:
256GB512GB
Process:
Intel 14nm (Kaby Lake)
144012"226ppi2304IPS0.92kg
12"
IPS
Resolution:
2304 x 1440
PPI:
226
Color:
sRGB
USB-C:
1 (5Gbps)
3.5 mm headphone jack:
1
Keyboard:
Full-size backlit keyboard
Touch Bar:
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
Keyboard:
Full-size backlit keyboard
480p
Capacity:
41.4Wh
Battery Life
Wireless web:
10h
Video playback:
12h
Charging Port:
USB-C
Charging Speed: 30W Max
Passcode
Height: 196.5mm
Width: 280.5mm
Thickness: 13.1mm
Weight: 0.92kg
A1534
MacBook10,1

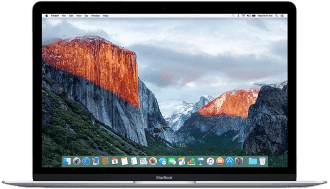

MacBook(Retina, 12-inch, 2016)
Preview
Preview
MacBook
(Retina, 12-inch, 2016)
Release Date
2016.04.20
OS Support
OS X 10.11macOS 12
Color
2-Core Intel m3
Intel m3-6Y30
2-Core Intel m5
Intel m5-6Y54
2-Core Intel m7
Intel m7-6Y75
Graphics:
Intel® HD 515
RAM:
8GB
Storage:
256GB512GB
Process:
Intel 14nm (Skylake)
144012"226ppi2304IPS0.92kg
12"
IPS
Resolution:
2304 x 1440
PPI:
226
Color:
sRGB
USB-C:
1 (5Gbps)
3.5 mm headphone jack:
1
Keyboard:
Full-size backlit keyboard
Touch Bar:
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
Keyboard:
Full-size backlit keyboard
480p
Capacity:
41.4Wh
Battery Life
Wireless web:
10h
Video playback:
11h
Charging Port:
USB-C
Charging Speed: 29W Max
Passcode
Height: 196.5mm
Width: 280.5mm
Thickness: 13.1mm
Weight: 0.92kg
A1534
MacBook9,1
MacBook(Retina, 12-inch, 2015  Early)
Preview
Preview
MacBook
(Retina, 12-inch, 2015 Early)
Release Date
2015.03.10
OS Support
OS X 10.10macOS 11
Color
2-Core Intel M
Intel M-5Y31
2-Core Intel M
Intel M-5Y51
2-Core Intel M
Intel M-5Y71
Graphics:
Intel® HD 5300
RAM:
8GB
Storage:
256GB512GB
Process:
Intel 14nm (Broadwell)
144012"226ppi2304IPS0.92kg
12"
IPS
Resolution:
2304 x 1440
PPI:
226
Color:
sRGB
USB-C:
1 (5Gbps)
3.5 mm headphone jack:
1
Keyboard:
Full-size backlit keyboard
Touch Bar:
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
Keyboard:
Full-size backlit keyboard
480p
Capacity:
39.7Wh
Battery Life
Wireless web:
9h
Video playback:
10h
Charging Port:
USB-C
Charging Speed: 29W Max
Passcode
Height: 196.5mm
Width: 280.5mm
Thickness: 13.1mm
Weight: 0.92kg
A1534
MacBook8,1

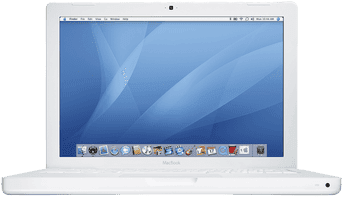

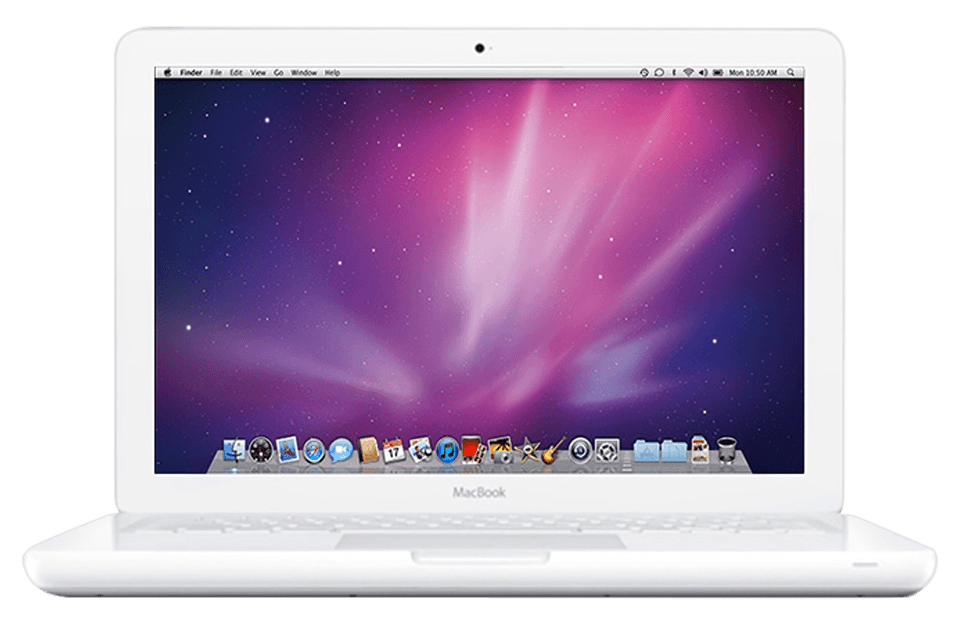

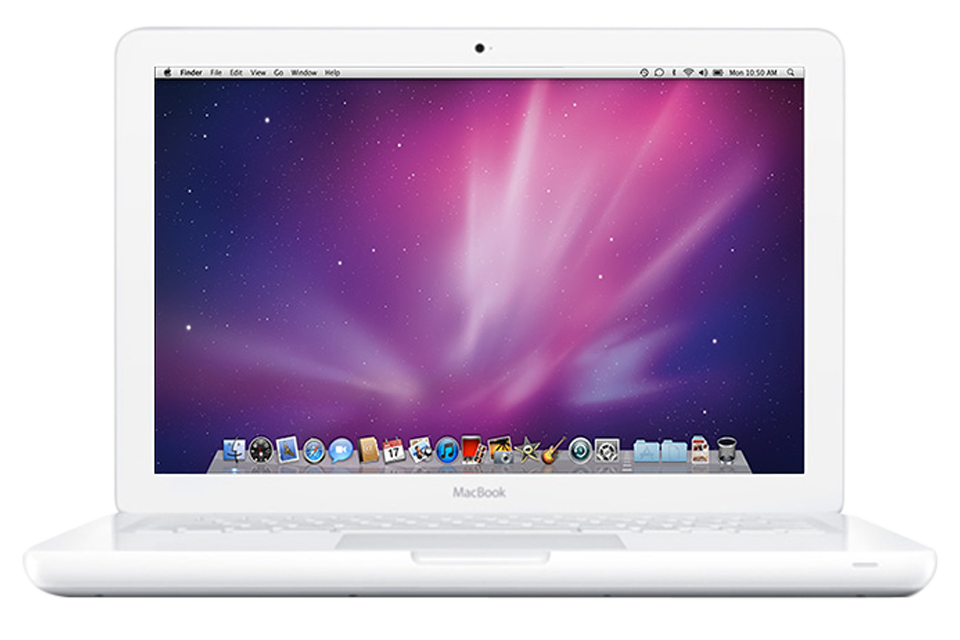

MacBook(13-inch, 2010  Mid)
Preview
Preview
MacBook
(13-inch, 2010 Mid)
Release Date
2010.05.19
OS Support
Mac OS X 10.6macOS 10.13
Color
2-Core Core
Core 2 Duo P8600
Graphics:
NVIDIA GeForce 320M
RAM:
2GB4GB
Storage:
250GB
Process:
Intel 45nm (Penryn)
80013.3"114ppi1280TFT2.13kg
13.3"
TFT
Resolution:
1280 x 800
PPI:
114
Color:
sRGB
USB-A:
2 (480Mbps)
Mini DP:
1
None:
0
Keyboard:
Full-size keyboard
Touch Bar:
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1
Keyboard:
Full-size keyboard
-
Capacity:
63.5Wh
Battery Life
Wireless web:
-
Video playback:
-
Charging Port:
MagSafe
Charging Speed: 60W Max
Passcode
Height: 231.7mm
Width: 330.3mm
Thickness: 27.4mm
Weight: 2.13kg
A1342
MacBook7,1
MacBook(13-inch, 2009  Late)
Preview
Preview
MacBook
(13-inch, 2009 Late)
Release Date
2009.10.21
OS Support
Mac OS X 10.6macOS 10.13
Color
2-Core Core
Core 2 Duo P5500
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB4GB
Storage:
250GB
Process:
Intel 45nm (Penryn)
80013.3"114ppi1280TFT2.13kg
13.3"
TFT
Resolution:
1280 x 800
PPI:
114
Color:
sRGB
USB-A:
2 (480Mbps)
Mini DP:
1
None:
0
Keyboard:
Full-size keyboard
Touch Bar:
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1
Keyboard:
Full-size keyboard
-
Capacity:
60Wh
Battery Life
Wireless web:
-
Video playback:
-
Charging Port:
MagSafe
Charging Speed: 60W Max
Passcode
Height: 231.7mm
Width: 330.3mm
Thickness: 27.4mm
Weight: 2.13kg
A1342
MacBook6,1
MacBook(13-inch, 2009  Mid)
Preview
Preview
MacBook
(13-inch, 2009 Mid)
Release Date
2009.05.28
OS Support
Mac OS X 10.5OS X 10.11
Color
2-Core Core
Core 2 Duo P7450
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB4GB
Storage:
160GB
Process:
Intel 45nm (Penryn)
80013.3"114ppi1280TFT2.27kg
13.3"
TFT
Resolution:
1280 x 800
PPI:
114
Color:
sRGB
USB-A:
2 (480Mbps)
Mini DP:
1
None:
0
Keyboard:
Full-size keyboard
Touch Bar:
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1
Keyboard:
Full-size keyboard
-
Capacity:
55Wh
Battery Life
Wireless web:
-
Video playback:
-
Charging Port:
MagSafe
Charging Speed: 60W Max
Passcode
Height: 227mm
Width: 325mm
Thickness: 27.5mm
Weight: 2.27kg
A1181
MacBook5,2
MacBook(13-inch, 2009  Early)
Preview
Preview
MacBook
(13-inch, 2009 Early)
Release Date
2009.01.22
OS Support
Mac OS X 10.5OS X 10.11
Color
2-Core Core
Core 2 Duo P7350
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB4GB
Storage:
120GB
Process:
Intel 45nm (Penryn)
80013.3"114ppi1280TFT2.27kg
13.3"
TFT
Resolution:
1280 x 800
PPI:
114
Color:
sRGB
USB-A:
2 (480Mbps)
Mini DP:
1
None:
0
Keyboard:
Full-size keyboard
Touch Bar:
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1
Keyboard:
Full-size keyboard
-
Capacity:
55Wh
Battery Life
Wireless web:
-
Video playback:
-
Charging Port:
MagSafe
Charging Speed: 60W Max
Passcode
Height: 227mm
Width: 325mm
Thickness: 27.5mm
Weight: 2.27kg
A1181
MacBook5,2
MacBook(13-inch, Aluminum, 2008 Late)
Preview
Preview
MacBook
(13-inch, Aluminum, 2008 Late)
Release Date
2008.10
OS Support
Mac OS X 10.5OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo P7350
2-Core Intel
Intel Core 2 Duo P8600
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB4GB8GB
Storage:
-
Process:
45nm
80013.3"113ppi1280LED-backlit glossy widescreen-
13.3"
LED-backlit glossy widescreen
Resolution:
1280 x 800
PPI:
113
Mini DisplayPort:
1
USB-A:
2 (480Mbps)
3.5 mm headphone jack:
1
Keyboard:
Full-size keyboard
Touch Bar:
None
Bluetooth:
-
Keyboard:
Full-size keyboard
-
Capacity:
-
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
-
MacBook5,1
-
MacBook(13-inch, 2008 Late)
Preview
Preview
MacBook
(13-inch, 2008 Late)
Release Date
2008.10
OS Support
Mac OS X 10.5Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T8100
Graphics:
Intel GMA X3100
RAM:
2GB4GB6GB
Storage:
-
Process:
45nm
80013.3"113ppi1280glossy widescreen-
13.3"
glossy widescreen
Resolution:
1280 x 800
PPI:
113
Mini-DVI:
1
USB-A:
2 (480Mbps)
3.5 mm headphone jack:
1
Keyboard:
Full-size keyboard
Touch Bar:
None
Bluetooth:
-
Keyboard:
Full-size keyboard
-
Capacity:
-
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
-
MacBook4,1
-
MacBook(13-inch, 2008 Early)
Preview
Preview
MacBook
(13-inch, 2008 Early)
Release Date
2008.02
OS Support
Mac OS X 10.5Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T8100
2-Core Intel
Intel Core 2 Duo T8300
Graphics:
Intel GMA X3100
RAM:
2GB4GB6GB
Storage:
-
Process:
45nm
80013.3"113ppi1280glossy widescreen-
13.3"
glossy widescreen
Resolution:
1280 x 800
PPI:
113
Mini-DVI:
1
USB-A:
2 (480Mbps)
3.5 mm headphone jack:
1
Keyboard:
Full-size keyboard
Touch Bar:
None
Bluetooth:
-
Keyboard:
Full-size keyboard
-
Capacity:
-
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
-
MacBook4,1
-
MacBook(13-inch, 2007 Late)
Preview
Preview
MacBook
(13-inch, 2007 Late)
Release Date
2007.11
OS Support
Mac OS X 10.5Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T7300
2-Core Intel
Intel Core 2 Duo T7500
Graphics:
Intel GMA X3100
RAM:
2GB4GB6GB
Storage:
-
Process:
65nm
80013.3"113ppi1280glossy widescreen-
13.3"
glossy widescreen
Resolution:
1280 x 800
PPI:
113
Mini-DVI:
1
USB-A:
2 (480Mbps)
3.5 mm headphone jack:
1
Keyboard:
Full-size keyboard
Touch Bar:
None
Bluetooth:
-
Keyboard:
Full-size keyboard
-
Capacity:
-
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
-
MacBook3,1
-
MacBook(13-inch, 2007 Mid)
Preview
Preview
MacBook
(13-inch, 2007 Mid)
Release Date
2007.05
OS Support
Mac OS X 10.4Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T7200
2-Core Intel
Intel Core 2 Duo T7400
Graphics:
Intel GMA 950
RAM:
1GB2GB3GB
Storage:
-
Process:
65nm
80013.3"113ppi1280glossy widescreen-
13.3"
glossy widescreen
Resolution:
1280 x 800
PPI:
113
Mini-DVI:
1
USB-A:
2 (480Mbps)
3.5 mm headphone jack:
1
Keyboard:
Full-size keyboard
Touch Bar:
None
Bluetooth:
-
Keyboard:
Full-size keyboard
-
Capacity:
-
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
-
MacBook2,1
-
MacBook(13-inch, 2006 Late)
Preview
Preview
MacBook
(13-inch, 2006 Late)
Release Date
2006.11
OS Support
Mac OS X 10.4Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T5600
2-Core Intel
Intel Core 2 Duo T7200
Graphics:
Intel GMA 950
RAM:
1GB2GB3GB
Storage:
-
Process:
65nm
80013.3"113ppi1280glossy widescreen-
13.3"
glossy widescreen
Resolution:
1280 x 800
PPI:
113
Mini-DVI:
1
USB-A:
2 (480Mbps)
3.5 mm headphone jack:
1
Keyboard:
Full-size keyboard
Touch Bar:
None
Bluetooth:
-
Keyboard:
Full-size keyboard
-
Capacity:
-
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
-
MacBook2,1
-
MacBook(13-inch, 2006)
Preview
Preview
MacBook
(13-inch, 2006)
Release Date
2006.05
OS Support
Mac OS X 10.4Mac OS X 10.6
Color
2-Core Intel
Intel Core Duo T2400
2-Core Intel
Intel Core Duo T2500
Graphics:
Intel GMA 950
RAM:
512MB1GB2GB
Storage:
-
Process:
65nm
80013.3"113ppi1280glossy widescreen-
13.3"
glossy widescreen
Resolution:
1280 x 800
PPI:
113
Mini-DVI:
1
USB-A:
2 (480Mbps)
3.5 mm headphone jack:
1
Keyboard:
Full-size keyboard
Touch Bar:
None
Bluetooth:
-
Keyboard:
Full-size keyboard
-
Capacity:
-
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
-
MacBook1,1
-
