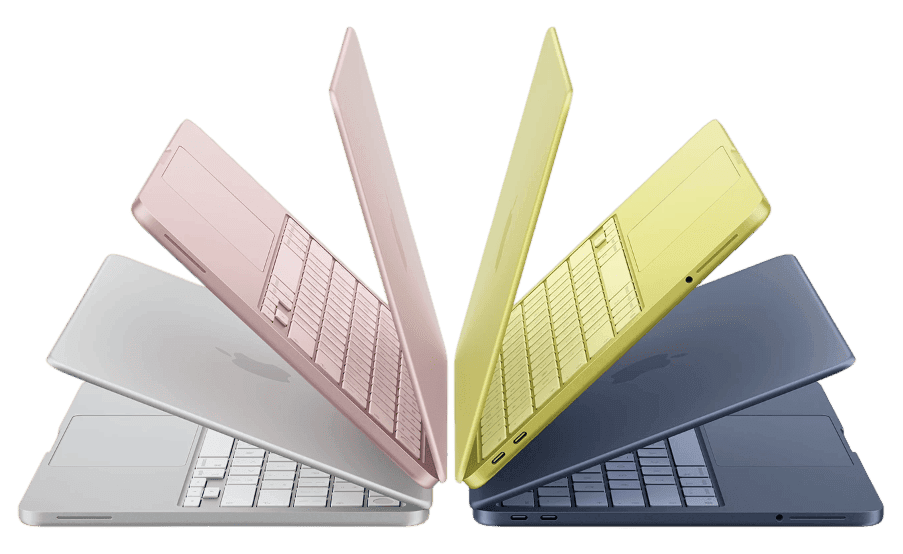

MacBook Neo(13-inch, A18 Pro)
Preview
MacBook Neo
(13-inch, A18 Pro)
Release Date
2026.03.04
OS Support
macOS 26→latest
Color
A18 Pro (5-coreGPU)
Performance Cores:
4.04GHz × 2
Efficiency Cores:
2.42GHz × 4
GPU:
Apple G17P × 5
RAM:
8GB
Unified Memory:
8GB
Memory type:
LPDDR5X
Storage:
256GB512GB
Process:
TSMC N3E
Neural Engine:
16-core 35 TOPS
150613.0″219ppi2408Liquid IPS500nit1.23kg
13.0″
Liquid IPS
Resolution:
2408 x 1506
PPI：
219
Color:
sRGB
Typical:
500 nit
USB-C：
1 (10Gb/s)
USB-C：
1 (480Mb/s)
3.5 mm headphone jack：
1
Keyboard:
Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 6.0
1080p
Capacity:
36.5Wh
Battery Life
Wireless web：
11h
Video playback：
16h
Charging Port:
USB-C
Charging Speed: 20W Max
Touch ID
(512GB model only)
Height: 206.4mm
Width: 297.5mm
Thickness: 12.7mm
Weight: 1.23kg
A3404
Secure Enclave integrated into Apple Silicon
Mac17,5
Tech Specs
MacBook Pro(16-inch, 2026)
Preview
MacBook Pro
(16-inch, 2026)
Release Date
2026.03.03
OS Support
macOS 26→Latest
Color
M5 Pro (18-core)
Super Core?:
4.60GHz × 6
Performance Cores:
4.38GHz × 12
GPU:
Apple G17S × 20
RAM:
24GB
48GB
64GB
M5 Max (18-core/32GPU)
Super Core?:
4.60GHz × 6
Performance Cores:
4.38GHz × 12
GPU:
Apple G17C × 32
RAM:
36GB
M5 Max (18-core/40GPU)
Super Core?:
4.60GHz × 6
Performance Cores:
4.38GHz × 12
GPU:
Apple G17C × 40
RAM:
48GB
64GB
128GB
Unified Memory:
24GB36GB48GB64GB128GB
Memory type:
LPDDR5X (9600 MT/s)
Storage:
1TB2TB4TB8TB
Process:
TSMC N3P
Neural Engine:
16-core 38 TOPS
223416.2″254ppi3456XDR ProMotion1000nitHDR2.14kg/2.15kg
16.2″
XDR ProMotion
Resolution:
3456 x 2234
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
1000 nit
HDR：
1600 nit
Thunderbolt 5：
3 (120Gb/s)
HDMI 2.1：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11be Wi-Fi 7
Bluetooth:
Bluetooth 6.0
12MP
Capacity:
100Wh
Battery Life
Wireless web：
17h/16h
Video playback：
24h/22h
Charging Port:
USB-CMagSafe 3
Charging Speed: 140W Max
Touch ID
Height: 248.1mm
Width: 355.7mm
Thickness: 16.8mm
Weight: 2.14kg/2.15kg
A3428 (M5 Pro)
A3429 (M5 Max)
Secure Enclave integrated into Apple Silicon
Mac17,8(M5 Pro)
Mac17,6(M5 Max)
2 FCC IDs
Tech Specs
MacBook Pro(14-inch, M5 Pro/Max, 2026)
Preview
MacBook Pro
(14-inch, M5 Pro/Max, 2026)
Release Date
2026.03.03
OS Support
macOS 26→Latest
Color
M5 Pro (15-core/18-core)
Super Core?:
4.60GHz × 5/6
Performance Cores:
4.38GHz × 10/12
GPU:
Apple G17S × 16/20
RAM:
24GB
48GB
64GB
M5 Max (18-core/32GPU)
Super Core?:
4.60GHz × 6
Performance Cores:
4.38GHz × 12
GPU:
Apple G17C × 32
RAM:
36GB
M5 Max (18-core/40GPU)
Super Core?:
4.60GHz × 6
Performance Cores:
4.38GHz × 12
GPU:
Apple G17C × 40
RAM:
48GB
64GB
128GB
Unified Memory:
24GB36GB48GB64GB128GB
Memory type:
LPDDR5X (9600 MT/s)
Storage:
1TB2TB4TB8TB
Process:
TSMC N3P
Neural Engine:
16-core 38 TOPS
196414.2″254ppi3024XDR ProMotion1000nitHDR1.60kg/1.62kg
14.2″
XDR ProMotion
Resolution:
3024 x 1964
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
1000 nit
HDR：
1600 nit
Thunderbolt 5：
3 (120Gb/s)
HDMI 2.1：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11be Wi-Fi 7
Bluetooth:
Bluetooth 6.0
12MP
Capacity:
72.4Wh
Battery Life
Wireless web：
14h/13h
Video playback：
22h/20h
Charging Port:
USB-CMagSafe 3
Charging Speed: 96W Max
Touch ID
Height: 221.2mm
Width: 312.6mm
Thickness: 15.5mm
Weight: 1.60kg/1.62kg
A3426 (M5 Pro)
A3427 (M5 Max)
Secure Enclave integrated into Apple Silicon
Mac17,9(M5 Pro)
Mac17,7(M5 Max)
2 FCC IDs
Tech Specs
MacBook Air(15-inch, M5, 2026)
Preview
MacBook Air
(15-inch, M5, 2026)
Release Date
2026.03.03
OS Support
macOS 26→latest
Color
M5
Super Core?:
4.60GHz × 4
Efficiency Cores:
3.04GHz × 6
GPU:
Apple G17G × 10
RAM:
16GB
24GB
32GB
Unified Memory:
16GB24GB32GB
Memory type:
LPDDR5X (9600 MT/s)
Storage:
512GB1TB2TB4TB
Process:
TSMC N3P
Neural Engine:
16-core 38 TOPS
186415.3″224ppi2880Liquid IPS500nit1.51kg
15.3″
Liquid IPS
Resolution:
2880 x 1864
PPI：
224
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 4：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11be Wi-Fi 7
Bluetooth:
Bluetooth 6.0
12MP
Capacity:
66.5Wh
Battery Life
Wireless web：
15h
Video playback：
18h
Charging Port:
USB-CMagSafe 3
Charging Speed: 70W Max
Touch ID
Height: 237.6mm
Width: 340.4mm
Thickness: 11.5mm
Weight: 1.51kg
A3448
Secure Enclave integrated into Apple Silicon
Mac17,4
Tech Specs
MacBook Air(13-inch, M5, 2026)
Preview
MacBook Air
(13-inch, M5, 2026)
Release Date
2026.03.03
OS Support
macOS 26→latest
Color
M5
Super Core?:
4.60GHz × 4
Efficiency Cores:
3.04GHz × 6
GPU:
Apple G17G × 8/10
RAM:
16GB
24GB
32GB
Unified Memory:
16GB24GB32GB
Memory type:
LPDDR5X (9600 MT/s)
Storage:
512GB1TB2TB4TB
Process:
TSMC N3P
Neural Engine:
16-core 38 TOPS
166413.6″224ppi2560Liquid IPS500nit1.23kg
13.6″
Liquid IPS
Resolution:
2560 x 1664
PPI：
224
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 4：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11be Wi-Fi 7
Bluetooth:
Bluetooth 6.0
12MP
Capacity:
53.8Wh
Battery Life
Wireless web：
15h
Video playback：
18h
Charging Port:
USB-CMagSafe 3
Charging Speed: 70W Max
Touch ID
Height: 215mm
Width: 304.1mm
Thickness: 11.3mm
Weight: 1.23kg
A3449
Secure Enclave integrated into Apple Silicon
Mac17,3
Tech Specs
MacBook Pro(14-inch, M5)
Preview
MacBook Pro
(14-inch, M5)
Release Date
2025.10.15
OS Support
macOS 26→Latest
Color
M5 (10-core)
Super Core?:
4.60GHz × 4
Efficiency Cores:
3.04GHz × 6
GPU:
Apple G17G × 10
RAM:
16GB
24GB
32GB
Unified Memory:
16GB24GB32GB
Memory type:
LPDDR5X (9600 MT/s)
Storage:
512GB1TB2TB4TB
Process:
TSMC N3P
Neural Engine:
16-core 38 TOPS
196414.2″254ppi3024XDR ProMotion1000nitHDR1.55kg
14.2″
XDR ProMotion
Resolution:
3024 x 1964
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
1000 nit
HDR：
1600 nit
Thunderbolt 4：
3 (40Gb/s)
HDMI 2.1：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
12MP
Capacity:
72.4Wh
Battery Life
Wireless web：
16h
Video playback：
24h
Charging Port:
USB-CMagSafe 3
Charging Speed: 96W Max
Touch ID
Height: 221.2mm
Width: 312.6mm
Thickness: 15.5mm
Weight: 1.55kg
A3434
Secure Enclave integrated into Apple Silicon
Mac17,2
Tech SpecsRepair Manual
MacBook Air(15-inch, M4, 2025)
Preview
MacBook Air
(15-inch, M4, 2025)
Release Date
2025.03.05
OS Support
macOS 15→latest
Color
M4
Performance Cores:
4.41GHz × 4
Efficiency Cores:
2.89GHz × 6
GPU:
Apple G16G × 10
RAM:
16GB
24GB
32GB
Unified Memory:
16GB24GB32GB
Memory type:
LPDDR5X (7500 MT/s)
Storage:
256GB512GB1TB2TB
Process:
TSMC N3E
Neural Engine:
16-core 38 TOPS
186415.3″224ppi2880Liquid IPS500nit1.51kg
15.3″
Liquid IPS
Resolution:
2880 x 1864
PPI：
224
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 4：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
12MP
Capacity:
66.5Wh
Battery Life
Wireless web：
15h
Video playback：
18h
Charging Port:
USB-CMagSafe 3
Charging Speed: 70W Max
Touch ID
Height: 237.6mm
Width: 340.4mm
Thickness: 11.5mm
Weight: 1.51kg
A3241
Secure Enclave integrated into Apple Silicon
Mac16,13
Tech SpecsRepair Manual
MacBook Air(13-inch, M4, 2025)
Preview
MacBook Air
(13-inch, M4, 2025)
Release Date
2025.03.05
OS Support
macOS 15→latest
Color
M4
Performance Cores:
4.41GHz × 4
Efficiency Cores:
2.89GHz × 6
GPU:
Apple G16G × 8/10
RAM:
16GB
24GB
32GB
Unified Memory:
16GB24GB32GB
Memory type:
LPDDR5X (7500 MT/s)
Storage:
256GB512GB1TB2TB
Process:
TSMC N3E
Neural Engine:
16-core 38 TOPS
166413.6″224ppi2560Liquid IPS500nit1.24kg
13.6″
Liquid IPS
Resolution:
2560 x 1664
PPI：
224
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 4：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
12MP
Capacity:
53.8Wh
Battery Life
Wireless web：
15h
Video playback：
18h
Charging Port:
USB-CMagSafe 3
Charging Speed: 70W Max
Touch ID
Height: 215mm
Width: 304.1mm
Thickness: 11.3mm
Weight: 1.24kg
A3240
Secure Enclave integrated into Apple Silicon
Mac16,12
Tech SpecsRepair Manual
MacBook Pro(16-inch, 2024)
Preview
MacBook Pro
(16-inch, 2024)
Release Date
2024.10.30
OS Support
macOS 15→Latest
Color
M4 Pro (10-core)
Performance Cores:
4.51GHz × 10
Efficiency Cores:
2.59GHz × 4
GPU:
Apple G16S × 20
RAM:
24GB
48GB
M4 Max (14-core)
Performance Cores:
4.51GHz × 10
Efficiency Cores:
2.59GHz × 4
GPU:
Apple G16C × 32
RAM:
36GB
M4 Max (16-core)
Performance Cores:
4.51GHz × 12
Efficiency Cores:
2.59GHz × 4
GPU:
Apple G16C × 40
RAM:
48GB
64GB
128GB
Unified Memory:
24GB36GB48GB64GB128GB
Memory type:
LPDDR5X (8533 MT/s)
Storage:
512GB1TB2TB4TB8TB
Process:
TSMC N3E
Neural Engine:
16-core 38 TOPS
223416.2″254ppi3456XDR ProMotion1000nitHDR2.14kg/2.15kg
16.2″
XDR ProMotion
Resolution:
3456 x 2234
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
1000 nit
HDR：
1600 nit
Thunderbolt 5：
3 (120Gb/s)
HDMI 2.1：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
12MP
Capacity:
100Wh
Battery Life
Wireless web：
17h/14h
Video playback：
24h/21h
Charging Port:
USB-CMagSafe 3
Charging Speed: 140W Max
Touch ID
Height: 248.1mm
Width: 355.7mm
Thickness: 16.8mm
Weight: 2.14kg/2.15kg
A3403 (M4 Pro)
A3186 (M4 Max)
Secure Enclave integrated into Apple Silicon
Mac16,7(M4 Pro)
Mac16,5(M4 Max)
2 FCC IDs
Tech SpecsRepair Manual
MacBook Pro(14-inch, M4 Pro/Max, 2024)
Preview
MacBook Pro
(14-inch, M4 Pro/Max, 2024)
Release Date
2024.10.30
OS Support
macOS 15→Latest
Color
M4 Pro (12-core/14-core)
Performance Cores:
4.51GHz × 8/10
Efficiency Cores:
2.59GHz × 4
GPU:
Apple G16S × 16/20
RAM:
24GB
48GB
M4 Max (14-core)
Performance Cores:
4.51GHz × 10
Efficiency Cores:
2.59GHz × 4
GPU:
Apple G16C × 32
RAM:
36GB
M4 Max (16-core)
Performance Cores:
4.51GHz × 12
Efficiency Cores:
2.59GHz × 4
GPU:
Apple G16C × 40
RAM:
48GB
64GB
128GB
Unified Memory:
24GB36GB48GB64GB128GB
Memory type:
LPDDR5X (8533 MT/s)
Storage:
512GB1TB2TB4TB8TB
Process:
TSMC N3E
Neural Engine:
16-core 38 TOPS
196414.2″254ppi3024XDR ProMotion1000nitHDR1.60kg/1.62kg
14.2″
XDR ProMotion
Resolution:
3024 x 1964
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
1000 nit
HDR：
1600 nit
Thunderbolt 5：
3 (120Gb/s)
HDMI 2.1：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
12MP
Capacity:
72.4Wh
Battery Life
Wireless web：
18h/13h
Video playback：
22h/18h
Charging Port:
USB-CMagSafe 3
Charging Speed: 96W Max
Touch ID
Height: 221.2mm
Width: 312.6mm
Thickness: 15.5mm
Weight: 1.60kg/1.62kg
A3401 (M4 Pro)
A3185 (M4 Max)
Secure Enclave integrated into Apple Silicon
Mac16,8(M4 Pro)
Mac16,6(M4 Max)
3 FCC IDs
Tech SpecsRepair Manual
MacBook Pro(14-inch, M4, 2024)
Preview
MacBook Pro
(14-inch, M4, 2024)
Release Date
2024.10.30
OS Support
macOS 15→Latest
Color
M4 (10-core)
Performance Cores:
4.41GHz × 4
Efficiency Cores:
2.89GHz × 6
GPU:
Apple G16G × 10
RAM:
16GB
24GB
32GB
Unified Memory:
16GB24GB32GB
Memory type:
LPDDR5X (7500 MT/s)
Storage:
512GB1TB2TB
Process:
TSMC N3E
Neural Engine:
16-core 38 TOPS
196414.2″254ppi3024XDR ProMotion1000nitHDR1.55kg
14.2″
XDR ProMotion
Resolution:
3024 x 1964
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
1000 nit
HDR：
1600 nit
Thunderbolt 4：
3 (40Gb/s)
HDMI 2.1：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
12MP
Capacity:
72.4Wh
Battery Life
Wireless web：
16h
Video playback：
24h
Charging Port:
USB-CMagSafe 3
Charging Speed: 96W Max
Touch ID
Height: 221.2mm
Width: 312.6mm
Thickness: 15.5mm
Weight: 1.55kg
A3112
Secure Enclave integrated into Apple Silicon
Mac16,1
3 FCC IDs
Tech SpecsRepair Manual
MacBook Air(15-inch, M3, 2024)
Preview
MacBook Air
(15-inch, M3, 2024)
Release Date
2024.03.04
OS Support
macOS 14→latest
Color
M3
Performance Cores:
4.05GHz × 4
Efficiency Cores:
2.75GHz × 4
GPU:
Apple G15G × 10
RAM:
8GB
16GB
24GB
Unified Memory:
8GB16GB24GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
256GB512GB1TB2TB
Process:
TSMC N3B
Neural Engine:
16-core 18 TOPS
186415.3″224ppi2880Liquid IPS500nit1.51kg
15.3″
Liquid IPS
Resolution:
2880 x 1864
PPI：
224
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
1080p
Capacity:
66.5Wh
Battery Life
Wireless web：
15h
Video playback：
18h
Charging Port:
USB-CMagSafe 3
Charging Speed: 70W Max
Touch ID
Height: 237.6mm
Width: 340.4mm
Thickness: 11.5mm
Weight: 1.51kg
A3114
Secure Enclave integrated into Apple Silicon
Mac15,13
Tech SpecsRepair Manual
MacBook Air(13-inch, M3, 2024)
Preview
MacBook Air
(13-inch, M3, 2024)
Release Date
2024.03.04
OS Support
macOS 14→latest
Color
M3
Performance Cores:
4.05GHz × 4
Efficiency Cores:
2.75GHz × 4
GPU:
Apple G15G × 8/10
RAM:
8GB
16GB
24GB
Unified Memory:
8GB16GB24GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
256GB512GB1TB2TB
Process:
TSMC N3B
Neural Engine:
16-core 18 TOPS
166413.6″224ppi2560Liquid IPS500nit1.24kg
13.6″
Liquid IPS
Resolution:
2560 x 1664
PPI：
224
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
1080p
Capacity:
52.6Wh
Battery Life
Wireless web：
15h
Video playback：
18h
Charging Port:
USB-CMagSafe 3
Charging Speed: 70W Max
Touch ID
Height: 215mm
Width: 304.1mm
Thickness: 11.3mm
Weight: 1.24kg
A3113
Secure Enclave integrated into Apple Silicon
Mac15,12
Tech SpecsRepair Manual
MacBook Pro(16-inch, 2023 Nov)
Preview
MacBook Pro
(16-inch, 2023 Nov)
Release Date
2023.10.31
OS Support
macOS 14→Latest
Color
M3 Pro (12-core)
Performance Cores:
4.05GHz × 6
Efficiency Cores:
2.75GHz × 6
GPU:
Apple G15S × 18
RAM:
18GB
36GB
M3 Max (14-core)
Performance Cores:
4.05GHz × 10
Efficiency Cores:
2.57GHz × 4
GPU:
Apple G15C × 30
RAM:
36GB
96GB
M3 Max (16-core)
Performance Cores:
4.05GHz × 12
Efficiency Cores:
2.57GHz × 4
GPU:
Apple G15C × 40
RAM:
48GB
64GB
128GB
Unified Memory:
18GB36GB48GB64GB96GB128GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
512GB1TB2TB4TB8TB
Process:
TSMC N3B
Neural Engine:
16-core 18 TOPS
223416.2″254ppi3456XDR ProMotion600nitHDR2.14kg/2.16kg
16.2″
XDR ProMotion
Resolution:
3456 x 2234
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
600 nit
HDR：
1600 nit
Thunderbolt 4：
3 (40Gb/s)
HDMI 2.1：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
1080p
Capacity:
99.6Wh
Battery Life
Wireless web：
15h
Video playback：
22h
Charging Port:
USB-CMagSafe 3
Charging Speed: 140W Max
Touch ID
Height: 248.1mm
Width: 355.7mm
Thickness: 16.8mm
Weight: 2.14kg/2.16kg
A2991
Secure Enclave integrated into Apple Silicon
Mac15,7(M3 Pro)
Mac15,11(M3 Max 14-core CPU)
Mac15,9(M3 Max 16-core CPU)
Tech SpecsRepair Manual
MacBook Pro(14-inch, M3 Pro/Max, 2023 Nov)
Preview
MacBook Pro
(14-inch, M3 Pro/Max, 2023 Nov)
Release Date
2023.10.31
OS Support
macOS 14→Latest
Color
M3 Pro (11-core/12-core)
Performance Cores:
4.05GHz × 5/6
Efficiency Cores:
2.75GHz × 6
GPU:
Apple G15S × 14/18
RAM:
18GB
36GB
M3 Max (14-core)
Performance Cores:
4.05GHz × 10
Efficiency Cores:
2.57GHz × 4
GPU:
Apple G15C × 30
RAM:
36GB
96GB
M3 Max (16-core)
Performance Cores:
4.05GHz × 12
Efficiency Cores:
2.57GHz × 4
GPU:
Apple G15C × 40
RAM:
48GB
64GB
128GB
Unified Memory:
18GB36GB48GB64GB96GB128GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
512GB1TB2TB4TB8TB
Process:
TSMC N3B
Neural Engine:
16-core 18 TOPS
196414.2″254ppi3024XDR ProMotion600nitHDR1.61kg/1.62kg
14.2″
XDR ProMotion
Resolution:
3024 x 1964
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
600 nit
HDR：
1600 nit
Thunderbolt 4：
3 (40Gb/s)
HDMI 2.1：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
1080p
Capacity:
72.4Wh
Battery Life
Wireless web：
12h
Video playback：
18h
Charging Port:
USB-CMagSafe 3
Charging Speed: 96W Max
Touch ID
Height: 221.2mm
Width: 312.6mm
Thickness: 15.5mm
Weight: 1.61kg/1.62kg
A2992
Secure Enclave integrated into Apple Silicon
Mac15,6(M3 Pro)
Mac15,10(M3 Max 14-core CPU)
Mac15,8(M3 Max 16-core CPU)
2 FCC IDs
Tech SpecsRepair Manual
MacBook Pro(14-inch, M3, 2023 Nov)
Preview
MacBook Pro
(14-inch, M3, 2023 Nov)
Release Date
2023.10.31
OS Support
macOS 14→Latest
Color
M3 (8-core)
Performance Cores:
4.05GHz × 4
Efficiency Cores:
2.75GHz × 4
GPU:
Apple G15G × 10
RAM:
8GB
16GB
24GB
Unified Memory:
8GB16GB24GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
512GB1TB2TB
Process:
TSMC N3B
Neural Engine:
16-core 18 TOPS
196414.2″254ppi3024XDR ProMotion600nitHDR1.55kg
14.2″
XDR ProMotion
Resolution:
3024 x 1964
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
600 nit
HDR：
1600 nit
Thunderbolt 3：
2 (40Gb/s)
HDMI 2.1：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
1080p
Capacity:
69.6Wh
Battery Life
Wireless web：
15h
Video playback：
22h
Charging Port:
USB-CMagSafe 3
Charging Speed: 70W Max
Touch ID
Height: 221.2mm
Width: 312.6mm
Thickness: 15.5mm
Weight: 1.55kg
A2918
Secure Enclave integrated into Apple Silicon
Mac15,3
2 FCC IDs
Tech SpecsRepair Manual
MacBook Air(15-inch, M2, 2023)
Preview
MacBook Air
(15-inch, M2, 2023)
Release Date
2023.06.06
OS Support
macOS 13→latest
Color
M2
Performance Cores:
3.49GHz × 4
Efficiency Cores:
2.42GHz × 4
GPU:
Apple G14G × 10
RAM:
8GB
16GB
24GB
Unified Memory:
8GB16GB24GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
256GB512GB1TB2TB
Process:
TSMC N5P
Neural Engine:
16-core 15.8 TOPS
186415.3″224ppi2880Liquid IPS500nit1.51kg
15.3″
Liquid IPS
Resolution:
2880 x 1864
PPI：
224
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6
Bluetooth:
Bluetooth 5.3
1080p
Capacity:
66.5Wh
Battery Life
Wireless web：
15h
Video playback：
18h
Charging Port:
USB-CMagSafe 3
Charging Speed: 70W Max
Touch ID
Height: 237.6mm
Width: 340.4mm
Thickness: 11.5mm
Weight: 1.51kg
A2941
Secure Enclave integrated into Apple Silicon
Mac14,15
Tech SpecsRepair Manual
MacBook Pro(16-inch, 2023)
Preview
MacBook Pro
(16-inch, 2023)
Release Date
2023.01.18
OS Support
macOS 13→Latest
Color
M2 Pro (12-core)
Performance Cores:
3.49GHz × 8
Efficiency Cores:
2.42GHz × 4
GPU:
Apple G14S × 19
RAM:
16GB
32GB
M2 Max (30 x GPU)
Performance Cores:
3.68GHz × 8
Efficiency Cores:
2.42GHz × 4
GPU:
Apple G14C × 30
RAM:
32GB
64GB
M2 Max (38 x GPU)
Performance Cores:
3.68GHz × 8
Efficiency Cores:
2.42GHz × 4
GPU:
Apple G14C × 38
RAM:
32GB
64GB
96GB
Unified Memory:
16GB32GB64GB96GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
512GB1TB2TB4TB8TB
Process:
TSMC N5P
Neural Engine:
16-core 15.8 TOPS
223416.2″254ppi3456XDR ProMotion500nitHDR2.15kg/2.16kg
16.2″
XDR ProMotion
Resolution:
3456 x 2234
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
HDR：
1600 nit
Thunderbolt 4：
3 (40Gb/s)
HDMI 2.1：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
1080p
Capacity:
99.6Wh
Battery Life
Wireless web：
15h
Video playback：
22h
Charging Port:
USB-CMagSafe 3
Charging Speed: 140W Max
Touch ID
Height: 248.1mm
Width: 355.7mm
Thickness: 16.8mm
Weight: 2.15kg/2.16kg
A2780
Secure Enclave integrated into Apple Silicon
Mac14,10(M2 Pro)
Mac14,6(M2 Max)
Tech SpecsRepair Manual
MacBook Pro(14-inch, 2023)
Preview
MacBook Pro
(14-inch, 2023)
Release Date
2023.01.18
OS Support
macOS 13→Latest
Color
M2 Pro (10-core/12-core)
Performance Cores:
3.49GHz × 6/8
Efficiency Cores:
2.42GHz × 4
GPU:
Apple G14S × 16/19
RAM:
16GB
32GB
M2 Max (30 x GPU)
Performance Cores:
3.68GHz × 8
Efficiency Cores:
2.42GHz × 4
GPU:
Apple G14C × 30
RAM:
32GB
64GB
M2 Max (38 x GPU)
Performance Cores:
3.68GHz × 8
Efficiency Cores:
2.42GHz × 4
GPU:
Apple G14C × 38
RAM:
32GB
64GB
96GB
Unified Memory:
16GB32GB64GB96GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
512GB1TB2TB4TB8TB
Process:
TSMC N5P
Neural Engine:
16-core 15.8 TOPS
196414.2″254ppi3024XDR ProMotion500nitHDR1.6kg/1.63kg
14.2″
XDR ProMotion
Resolution:
3024 x 1964
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
HDR：
1600 nit
Thunderbolt 4：
3 (40Gb/s)
HDMI 2.1：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
1080p
Capacity:
69.6Wh
Battery Life
Wireless web：
12h
Video playback：
18h
Charging Port:
USB-CMagSafe 3
Charging Speed: 96W Max
Touch ID
Height: 221.2mm
Width: 312.6mm
Thickness: 15.5mm
Weight: 1.6kg/1.63kg
A2779
Secure Enclave integrated into Apple Silicon
Mac14,9(M2 Pro)
Mac14,5(M2 Max)
Tech SpecsRepair Manual
MacBook Pro(13-inch, M2, 2022)
Preview
MacBook Pro
(13-inch, M2, 2022)
Release Date
2022.06.07
OS Support
macOS 12→Latest
Color
M2 (8-core)
Performance Cores:
3.49GHz × 4
Efficiency Cores:
2.42GHz × 4
GPU:
Apple G14G × 10
RAM:
8GB
16GB
24GB
Unified Memory:
8GB16GB24GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
256GB512GB1TB2TB
Process:
TSMC N5P
Neural Engine:
16-core 15.8 TOPS
160013.3″227ppi2560IPS500nit1.38kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6
Bluetooth:
Bluetooth 5.0
720p
Capacity:
58.2Wh
Battery Life
Wireless web：
17h
Video playback：
20h
Charging Port:
USB-C
Charging Speed: 67W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 15.6mm
Weight: 1.38kg
A2338
Secure Enclave integrated into Apple Silicon
Mac14,7
Tech SpecsRepair Manual
MacBook Air(M2, 2022)
Preview
MacBook Air
(M2, 2022)
Release Date
2022.06.07
OS Support
macOS 12→latest
Color
M2
Performance Cores:
3.49GHz × 4
Efficiency Cores:
2.42GHz × 4
GPU:
Apple G14G × 8/10
RAM:
8GB
16GB
24GB
Unified Memory:
8GB16GB24GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
256GB512GB1TB2TB
Process:
TSMC N5P
Neural Engine:
16-core 15.8 TOPS
166413.6″224ppi2560Liquid IPS500nit1.24kg
13.6″
Liquid IPS
Resolution:
2560 x 1664
PPI：
224
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6
Bluetooth:
Bluetooth 5.3
1080p
Capacity:
52.6Wh
Battery Life
Wireless web：
15h
Video playback：
18h
Charging Port:
USB-CMagSafe 3
Charging Speed: 70W Max
Touch ID
Height: 215mm
Width: 304.1mm
Thickness: 11.3mm
Weight: 1.24kg
A2681
Secure Enclave integrated into Apple Silicon
Mac14,2
Tech SpecsRepair Manual
MacBook Pro(16-inch, 2021)
Preview
MacBook Pro
(16-inch, 2021)
Release Date
2021.10.19
OS Support
macOS 12→Latest
Color
M1 Pro (10-core)
Performance Cores:
3.23GHz × 8
Efficiency Cores:
2.06GHz × 2
GPU:
Apple G13S × 16
RAM:
16GB
32GB
M1 Max (24GPU/32-core GPU)
Performance Cores:
3.23GHz × 8
Efficiency Cores:
2.06GHz × 2
GPU:
Apple G13C × 24/32
RAM:
32GB
64GB
Unified Memory:
16GB32GB64GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
512GB1TB2TB4TB8TB
Process:
TSMC N5
Neural Engine:
16-core 11 TOPS
223416.2″254ppi3456XDR ProMotion500nitHDR2.1kg/2.2kg
16.2″
XDR ProMotion
Resolution:
3456 x 2234
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
HDR：
1600 nit
Thunderbolt 4：
3 (40Gb/s)
HDMI 2.0：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6
Bluetooth:
Bluetooth 5.0
1080p
Capacity:
99.6Wh
Battery Life
Wireless web：
14h
Video playback：
21h
Charging Port:
USB-CMagSafe 3
Charging Speed: 140W Max
Touch ID
Height: 248.1mm
Width: 355.7mm
Thickness: 16.8mm
Weight: 2.1kg/2.2kg
A2485
Secure Enclave integrated into Apple Silicon
MacBookPro18,1
MacBookPro18,2
Tech SpecsRepair Manual
MacBook Pro(14-inch, 2021)
Preview
MacBook Pro
(14-inch, 2021)
Release Date
2021.10.19
OS Support
macOS 12→Latest
Color
M1 Pro (8-core/10-core)
Performance Cores:
3.23GHz × 6/8
Efficiency Cores:
2.06GHz × 2
GPU:
Apple × 14/16
RAM:
16GB
32GB
M1 Max (24GPU/32-core GPU)
Performance Cores:
3.23GHz × 8
Efficiency Cores:
2.06GHz × 2
GPU:
Apple G13C × 24/32
RAM:
32GB
64GB
Unified Memory:
16GB32GB64GB
Memory type:
LPDDR5 (6400 MT/s)
Storage:
512GB1TB2TB4TB8TB
Process:
TSMC N5
Neural Engine:
16-core 11 TOPS
196414.2″254ppi3024XDR ProMotion500nitHDR1.6kg
14.2″
XDR ProMotion
Resolution:
3024 x 1964
PPI：
254
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
HDR：
1600 nit
Thunderbolt 4：
3 (40Gb/s)
HDMI 2.0：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6
Bluetooth:
Bluetooth 5.0
1080p
Capacity:
69.6Wh
Battery Life
Wireless web：
11h
Video playback：
17h
Charging Port:
USB-CMagSafe 3
Charging Speed: 96W Max
Touch ID
Height: 221.2mm
Width: 312.6mm
Thickness: 15.5mm
Weight: 1.6kg
A2442
Secure Enclave integrated into Apple Silicon
MacBookPro18,3
MacBookPro18,4
Tech SpecsRepair Manual
MacBook Pro(13-inch, M1, 2020)
Preview
MacBook Pro
(13-inch, M1, 2020)
Release Date
2020.11.11
OS Support
macOS 11→Latest
Color
M1
Performance Cores:
3.20GHz × 4
Efficiency Cores:
2.06GHz × 4
GPU:
Apple G13G × 8
RAM:
8GB
16GB
Unified Memory:
8GB16GB
Memory type:
LPDDR4X (4266 MT/s)
Storage:
256GB512GB1TB2TB
Process:
TSMC N5
Neural Engine:
16-core 11 TOPS
160013.3″227ppi2560IPS500nit1.4kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6
Bluetooth:
Bluetooth 5.0
720p
Capacity:
58.2Wh
Battery Life
Wireless web：
17h
Video playback：
20h
Charging Port:
USB-C
Charging Speed: 61W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 15.6mm
Weight: 1.4kg
A2338
Secure Enclave integrated into Apple Silicon
MacBookPro17,1
Tech SpecsRepair Manual
MacBook Air(M1, 2020)
Preview
MacBook Air
(M1, 2020)
Release Date
2020.11.11
OS Support
macOS 11→latest
Color
M1
Performance Cores:
3.20GHz × 4
Efficiency Cores:
2.06GHz × 4
GPU:
Apple G13G × 7/8
RAM:
8GB
16GB
Unified Memory:
8GB16GB
Memory type:
LPDDR4X (4266 MT/s)
Storage:
256GB512GB1TB2TB
Process:
TSMC N5
Neural Engine:
16-core 11 TOPS
160013.3″227ppi2560IPS400nit1.29kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
True Tone display, Wide color (P3)
Typical:
400 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ax Wi-Fi 6
Bluetooth:
Bluetooth 5.0
720p
Capacity:
49.9Wh
Battery Life
Wireless web：
15h
Video playback：
18h
Charging Port:
USB-C
Charging Speed: 30W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 16.1mm
Weight: 1.29kg
A2337
Secure Enclave integrated into Apple Silicon
MacBookAir10,1
Tech SpecsRepair Manual
MacBook Pro(13-inch, 2020, Thunderbolt × 4)
Preview
MacBook Pro
(13-inch, 2020, Thunderbolt × 4)
Release Date
2020.05.05
OS Support
macOS 10.15→macOS 26
Color
Intel 4-Core i5
i5-1038NG7
Intel 4-Core i7
i7-1068NG7
Graphics:
Intel Iris Plus Graphics
RAM:
16GB32GB
Memory type:
LPDDR4X (3733 MHz)
Storage:
512GB1TB2TB4TB
Process:
Intel 10nm (Ice Lake)
160013.3″227ppi2560IPS500nit1.4kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
4 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 5.0
720p
Capacity:
58.0Wh
Battery Life
Wireless web：
10h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 61W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 15.6mm
Weight: 1.4kg
A2251
Apple T2 Security Chip
MacBookPro16,2
Tech Specs
MacBook Pro(13-inch, 2020, Thunderbolt × 2)
Preview
MacBook Pro
(13-inch, 2020, Thunderbolt × 2)
Release Date
2020.05.05
OS Support
macOS 10.15→macOS 15
Color
Intel 4-Core i5
i5-8257U
Intel 4-Core i7
i7-8557U
Graphics:
Intel Iris Plus 645
RAM:
16GB32GB
Memory type:
LPDDR3 (2133 MHz)
Storage:
256GB512GB1TB2TB4TB
Process:
Intel 14nm (Coffee Lake)
160013.3″227ppi2560IPS500nit1.4kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 5.0
720p
Capacity:
58.2Wh
Battery Life
Wireless web：
10h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 61W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 15.6mm
Weight: 1.4kg
A2289
Apple T2 Security Chip
MacBookPro16,3
Tech Specs
MacBook Air(13-inch, 2020)
Preview
MacBook Air
(13-inch, 2020)
Release Date
2020.03.19
OS Support
macOS 10.15→macOS 15
Color
2-Core Intel Core i3
Intel Core i3-1000NG4
4-Core Intel Core i5
Intel Core i5-1030NG7
4-Core Intel Core i7
Intel Core i7-1060NG7
Graphics:
Intel Iris Plus Graphics
RAM:
8GB16GB
Memory type:
LPDDR4X (3733 MHz)
Storage:
256GB512GB1TB2TB
Process:
Intel 10nm (Ice Lake)
160013.3″227ppi2560IPS400nit1.29kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
True Tone display, sRGB
Typical:
400 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 5.0
720p
Capacity:
49.9Wh
Battery Life
Wireless web：
11h
Video playback：
12h
Charging Port:
USB-C
Charging Speed: 30W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 16.1mm
Weight: 1.29kg
A2179
Apple T2 Security Chip
MacBookAir9,1
Tech Specs
MacBook Pro(16-inch, 2019)
Preview
MacBook Pro
(16-inch, 2019)
Release Date
2019.11.14
OS Support
macOS 10.15→macOS 26
Color
Intel 6-Core i7
i7-9750H
Intel 8-Core i9
i9-9880H
Intel 8-Core i9
i9-9980HK
Graphics:
AMD 5300M/5500M/5600M + Intel® UHD Graphics 630
RAM:
16GB32GB64GB
Memory type:
DDR4 (2666 MHz)
Storage:
512GB1TB2TB4TB8TB
Process:
Intel 14nm (Coffee Lake)
192016″226ppi3072IPS500nit2kg
16″
IPS
Resolution:
3072 x 1920
PPI：
226
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
4 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Backlit Magic Keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 5.0
720p
Capacity:
100Wh
Battery Life
Wireless web：
11h
Video playback：
11h
Charging Port:
USB-C
Charging Speed: 96W Max
Touch ID
Height: 245.9mm
Width: 357.9mm
Thickness: 16.2mm
Weight: 2kg
A2141
Apple T2 Security Chip
MacBookPro16,1
MacBookPro16,4
Tech Specs
MacBook Pro(13-inch, 2019, Thunderbolt × 2)
Preview
MacBook Pro
(13-inch, 2019, Thunderbolt × 2)
Release Date
2019.07.10
OS Support
macOS 10.14→macOS 15
Color
Intel 4-Core i5
i5-8257U
Intel 4-Core i7
i7-8557U
Graphics:
Intel® Iris Plus 645
RAM:
8GB16GB
Memory type:
LPDDR3 (2133 MHz)
Storage:
128GB256GB512GB1TB2TB
Process:
Intel 14nm (Coffee Lake)
160013.3″227ppi2560IPS500nit1.37kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 5.0
720p
Capacity:
58.2Wh
Battery Life
Wireless web：
10h
Video playback：
-
Charging Port:
USB-C
Charging Speed: 61W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 14.9mm
Weight: 1.37kg
A2159
Apple T2 Security Chip
MacBookPro15,4
Tech Specs
MacBook Air(13-inch, 2019)
Preview
MacBook Air
(13-inch, 2019)
Release Date
2019.07.10
OS Support
macOS 10.14→macOS 14
Color
2-Core Intel Core i5
Intel Core i5-8210Y
Graphics:
Intel UHD Graphics 617
RAM:
8GB16GB
Memory type:
LPDDR3 (2133 MHz)
Storage:
128GB256GB512GB1TB
Process:
Intel 14nm (Amber Lake Y)
160013.3″227ppi2560IPS400nit1.25kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
True Tone display, sRGB
Typical:
400 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
720p
Capacity:
50.3Wh
Battery Life
Wireless web：
12h
Video playback：
-
Charging Port:
USB-C
Charging Speed: 30W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 15.6mm
Weight: 1.25kg
A1932
Apple T2 Security Chip
MacBookAir8,2
Tech Specs
MacBook Pro(15-inch, 2019)
Preview
MacBook Pro
(15-inch, 2019)
Release Date
2019.05.22
OS Support
macOS 10.14→macOS 15
Color
Intel 6-Core i7
i7-9750H
Intel 8-Core i9
i9-9880H
Intel 8-Core i9
i9-9980HK
Graphics:
AMD 555X/560X/Vega16/20 + Intel® UHD Graphics 630
RAM:
16GB32GB
Memory type:
DDR4 (2400 MHz)
Storage:
256GB512GB1TB2TB4TB
Process:
Intel 14nm (Coffee Lake)
180015.4″220ppi2880IPS500nit1.83kg
15.4″
IPS
Resolution:
2880 x 1800
PPI：
220
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
4 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 5.0
720p
Capacity:
83.6Wh
Battery Life
Wireless web：
10h
Video playback：
-
Charging Port:
USB-C
Charging Speed: 87W Max
Touch ID
Height: 240.7mm
Width: 349.3mm
Thickness: 15.5mm
Weight: 1.83kg
A1990
Apple T2 Security Chip
MacBookPro15,1
MacBookPro15,3
Tech Specs
MacBook Pro(13-inch, 2019, Thunderbolt × 4)
Preview
MacBook Pro
(13-inch, 2019, Thunderbolt × 4)
Release Date
2019.05.22
OS Support
macOS 10.14→macOS 15
Color
Intel 4-Core i5
i5-8279U
Intel 4-Core i7
i7-8569U
Graphics:
Intel® Iris Plus 655
RAM:
8GB16GB
Memory type:
LPDDR3 (2133 MHz)
Storage:
256GB512GB1TB2TB
Process:
Intel 14nm (Coffee Lake)
160013.3″227ppi2560IPS500nit1.37kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
4 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 5.0
720p
Capacity:
58.0Wh
Battery Life
Wireless web：
10h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 61W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 14.9mm
Weight: 1.37kg
A1989
Apple T2 Security Chip
MacBookPro15,2
Tech Specs
MacBook Air(Retina, 13-inch, 2018)
Preview
MacBook Air
(Retina, 13-inch, 2018)
Release Date
2018.10.31
OS Support
macOS 10.14→macOS 14
Color
2-Core Intel Core i5
Intel Core i5-8210Y
Graphics:
Intel UHD Graphics 617
RAM:
8GB16GB
Memory type:
LPDDR3 (2133 MHz)
Storage:
128GB256GB512GB1.5TB
Process:
Intel 14nm (Amber Lake Y)
160013.3″227ppi2560IPS300nit1.25kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
sRGB
Typical:
300 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
720p
Capacity:
50.3Wh
Battery Life
Wireless web：
12h
Video playback：
13h
Charging Port:
USB-C
Charging Speed: 30W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 15.6mm
Weight: 1.25kg
A1932
Apple T2 Security Chip
MacBookAir8,1
Tech Specs
MacBook Pro(15-inch, 2018)
Preview
MacBook Pro
(15-inch, 2018)
Release Date
2018.07.13
OS Support
macOS 10.13→macOS 15
Color
Intel 6-Core i7
i7-8750H
Intel 6-Core i7
i7-8850H
Intel 6-Core i9
i9-8950HK
Graphics:
AMD 555X/560X/Vega16/20 + Intel® UHD Graphics 630
RAM:
16GB32GB
Memory type:
DDR4 (2400 MHz)
Storage:
256GB512GB1TB2TB4TB
Process:
Intel 14nm (Coffee Lake)
180015.4″220ppi2880IPS500nit1.83kg
15.4″
IPS
Resolution:
2880 x 1800
PPI：
220
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
4 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 5.0
720p
Capacity:
83.6Wh
Battery Life
Wireless web：
10h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 87W Max
Touch ID
Height: 240.7mm
Width: 349.3mm
Thickness: 15.5mm
Weight: 1.83kg
A1990
Apple T2 Security Chip
MacBookPro15,1
MacBookPro15,3
Tech Specs
MacBook Pro(13-inch, 2018, Thunderbolt × 4)
Preview
MacBook Pro
(13-inch, 2018, Thunderbolt × 4)
Release Date
2018.07.13
OS Support
macOS 10.13→macOS 15
Color
Intel 4-Core i5
i5-8259U
Intel 4-Core i7
i7-8559U
Graphics:
Intel® Iris Plus 655
RAM:
8GB16GB
Memory type:
LPDDR3 (2133 MHz)
Storage:
256GB512GB1TB2TB
Process:
Intel 14nm (Coffee Lake)
160013.3″227ppi2560IPS500nit1.37kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
True Tone display, Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
4 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 5.0
720p
Capacity:
58.0Wh
Battery Life
Wireless web：
10h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 61W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 14.9mm
Weight: 1.37kg
A1989
Apple T2 Security Chip
MacBookPro15,2
Tech Specs
MacBook Pro(15-inch, 2017)
Preview
MacBook Pro
(15-inch, 2017)
Release Date
2017.06.06
OS Support
macOS 10.12→macOS 13
Color
Intel 4-Core i7
i7-7700HQ
Intel 4-Core i7
i7-7820HQ
Intel 4-Core i7
i7-7920HQ
Graphics:
AMD 555/560 + Intel® HD Graphics 630
RAM:
16GB
Memory type:
LPDDR3 (2133 MHz)
Storage:
256GB512GB1TB2TB
Process:
Intel 14nm (Kaby Lake)
180015.4″220ppi2880IPS500nit1.83kg
15.4″
IPS
Resolution:
2880 x 1800
PPI：
220
Color:
Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
4 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
720p
Capacity:
76.0Wh
Battery Life
Wireless web：
10h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 87W Max
Touch ID
Height: 240.7mm
Width: 349.3mm
Thickness: 15.5mm
Weight: 1.83kg
A1707
Apple T1 Security Chip
MacBookPro14,3
Tech Specs
MacBook Pro(13-inch, 2017, Thunderbolt × 4)
Preview
MacBook Pro
(13-inch, 2017, Thunderbolt × 4)
Release Date
2017.06.06
OS Support
macOS 10.12→macOS 13
Color
Intel 2-Core i5
i5-7267U
Intel 2-Core i5
i5-7287U
Intel 2-Core i7
i7-7567U
Graphics:
Intel® Iris Plus 650
RAM:
8GB16GB
Memory type:
LPDDR3 (2133 MHz)
Storage:
256GB512GB1TB
Process:
Intel 14nm (Kaby Lake)
160013.3″227ppi2560IPS500nit1.37kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
4 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
720p
Capacity:
49.2Wh
Battery Life
Wireless web：
10h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 61W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 14.9mm
Weight: 1.37kg
A1706
Apple T1 Security Chip
MacBookPro14,2
Tech Specs
MacBook Pro(13-inch, 2017, Thunderbolt × 2)
Preview
MacBook Pro
(13-inch, 2017, Thunderbolt × 2)
Release Date
2017.06.06
OS Support
macOS 10.12→macOS 13
Color
Intel 2-Core i5
i5-7360U
Intel 2-Core i7
i7-7660U
Graphics:
Intel® Iris Plus 640
RAM:
8GB16GB
Memory type:
LPDDR3 (1866 MHz)
Storage:
128GB256GB512GB1TB
Process:
Intel 14nm (Kaby Lake)
160013.3″227ppi2560IPS500nit1.37kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
720p
Capacity:
54.5Wh
Battery Life
Wireless web：
10h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 61W Max
Passcode
Height: 212.4mm
Width: 304.1mm
Thickness: 14.9mm
Weight: 1.37kg
A1708
Apple T1 Security Chip
MacBookPro14,1
Tech Specs
MacBook Air(13.3-inch, 2017)
Preview
MacBook Air
(13.3-inch, 2017)
Release Date
2017.06.06
OS Support
macOS 10.12→macOS 12
Color
2-Core Intel Core i5
Intel Core i5-5350U
2-Core Intel Core i7
Intel Core i7-5650U
Graphics:
Intel HD 6000
RAM:
8GB
Memory type:
LPDDR3 (1600 MHz)
Storage:
128GB256GB512GB
Process:
Intel 14nm (Broadwell)
90013.3″128ppi1440TN1.35kg
13.3″
TN
Resolution:
1440 x 900
PPI：
128
Color:
sRGB
Typical:
- nit
Thunderbolt 2：
1 (20Gb/s)
USB-A：
2 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
54Wh
Battery Life
Wireless web：
12h
Video playback：
12h
Charging Port:
MagSafe 2
Charging Speed: 45W Max
-
Height: 227mm
Width: 325mm
Thickness: 17mm
Weight: 1.35kg
A1466
-
MacBookAir7,2
Not recorded
Tech Specs
MacBook(Retina, 12-inch, 2017)
Preview
MacBook
(Retina, 12-inch, 2017)
Release Date
2017.06.06
OS Support
macOS 10.12→macOS 13
Color
2-Core Intel m3
Intel m3-7Y32
Intel 2-Core i5
i5-7Y54
Intel 2-Core i7
i7-7Y75
Graphics:
Intel® HD 615
RAM:
8GB16GB
Memory type:
LPDDR3 (1866 MHz)
Storage:
256GB512GB
Process:
Intel 14nm (Kaby Lake)·Intel m3-7Y32
Intel 14nm (ISA, Kaby Lake)·i5-7Y54/i7-7Y75
144012″226ppi2304IPS0.92kg
12″
IPS
Resolution:
2304 x 1440
PPI：
226
Color:
sRGB
Typical:
- nit
USB-C：
1 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
480p
Capacity:
41.4Wh
Battery Life
Wireless web：
10h
Video playback：
12h
Charging Port:
USB-C
Charging Speed: 30W Max
Passcode
Height: 196.5mm
Width: 280.5mm
Thickness: 13.1mm
Weight: 0.92kg
A1534
/
MacBook10,1
Tech Specs
MacBook Pro(15-inch, 2016)
Preview
MacBook Pro
(15-inch, 2016)
Release Date
2016.11.13
OS Support
macOS 10.12→macOS 12
Color
Intel 4-Core i7
i7-6700HQ
Intel 4-Core i7
i7-6820HQ
Intel 4-Core i7
i7-6920HQ
Graphics:
AMD 450/455/460 + Intel® HD Graphics 530
RAM:
16GB
Memory type:
LPDDR3 (2133 MHz)
Storage:
256GB512GB1TB2TB
Process:
Intel 14nm (Skylake)
180015.4″220ppi2880IPS500nit1.83kg
15.4″
IPS
Resolution:
2880 x 1800
PPI：
220
Color:
Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
4 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
720p
Capacity:
76.0Wh
Battery Life
Wireless web：
10h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 87W Max
Touch ID
Height: 240.7mm
Width: 349.3mm
Thickness: 15.5mm
Weight: 1.83kg
A1707
Apple T1 Security Chip
MacBookPro13,3
Tech Specs
MacBook Pro(13-inch, 2016, Thunderbolt × 4)
Preview
MacBook Pro
(13-inch, 2016, Thunderbolt × 4)
Release Date
2016.11.13
OS Support
macOS 10.12→macOS 12
Color
Intel 2-Core i5
i5-6267U
Intel 2-Core i5
i5-6287U
Intel 2-Core i7
i7-6567U
Graphics:
Intel® Iris Graphics 550
RAM:
8GB16GB
Memory type:
LPDDR3 (2133 MHz)
Storage:
256GB512GB1TB
Process:
Intel 14nm (Skylake)
160013.3″227ppi2560IPS500nit1.37kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
4 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard with Touch Bar
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
720p
Capacity:
49.2Wh
Battery Life
Wireless web：
10h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 61W Max
Touch ID
Height: 212.4mm
Width: 304.1mm
Thickness: 14.9mm
Weight: 1.37kg
A1706
Apple T1 Security Chip
MacBookPro13,2
Tech Specs
MacBook Pro(13-inch, 2016, Thunderbolt × 2)
Preview
MacBook Pro
(13-inch, 2016, Thunderbolt × 2)
Release Date
2016.10.28
OS Support
macOS 10.12→macOS 12
Color
Intel 2-Core i5
i5-6360U
Intel 2-Core i7
i7-6660U
Graphics:
Intel® Iris Graphics 540
RAM:
8GB16GB
Memory type:
LPDDR3 (1866 MHz)
Storage:
256GB512GB1TB
Process:
Intel 14nm (Skylake)
160013.3″227ppi2560IPS500nit1.37kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
Wide color (P3)
Typical:
500 nit
Thunderbolt 3：
2 (40Gb/s)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
720p
Capacity:
54.5Wh
Battery Life
Wireless web：
10h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 61W Max
Passcode
Height: 212.4mm
Width: 304.1mm
Thickness: 14.9mm
Weight: 1.37kg
A1708
Apple T1 Security Chip
MacBookPro13,1
Tech Specs
MacBook(Retina, 12-inch, 2016)
Preview
MacBook
(Retina, 12-inch, 2016)
Release Date
2016.04.20
OS Support
OS X 10.11→macOS 12
Color
2-Core Intel m3
Intel m3-6Y30
2-Core Intel m5
Intel m5-6Y54
2-Core Intel m7
Intel m7-6Y75
Graphics:
Intel® HD 515
RAM:
8GB
Memory type:
LPDDR3 (1866 MHz)
Storage:
256GB512GB
Process:
Intel 14nm (Skylake)
144012″226ppi2304IPS0.92kg
12″
IPS
Resolution:
2304 x 1440
PPI：
226
Color:
sRGB
Typical:
- nit
USB-C：
1 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
480p
Capacity:
41.4Wh
Battery Life
Wireless web：
10h
Video playback：
11h
Charging Port:
USB-C
Charging Speed: 29W Max
Passcode
Height: 196.5mm
Width: 280.5mm
Thickness: 13.1mm
Weight: 0.92kg
A1534
/
MacBook9,1
Tech Specs
MacBook Pro(Retina, 15-inch, 2015 Mid)
Preview
MacBook Pro
(Retina, 15-inch, 2015 Mid)
Release Date
2015.05.20
OS Support
OS X 10.10→macOS 12
Color
Intel 4-Core i7
i7-4770HQ
Intel 4-Core i7
i7-4870HQ
Intel 4-Core i7
i7-4980HQ
Graphics:
Intel® Iris Pro 5200AMD M370X + Intel® Iris Pro 5200
RAM:
16GB
Memory type:
DDR3L (1600 MHz)
Storage:
256GB512GB1TB
Process:
Intel 22nm (Crystal Well)
180015.4″220ppi2880IPS300nit2.04kg
15.4″
IPS
Resolution:
2880 x 1800
PPI：
220
Color:
sRGB
Typical:
300 nit
Thunderbolt 2：
2 (20Gb/s)
USB-A：
2 (5Gbps)
HDMI 1.4：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
720p
Capacity:
99.5Wh
Battery Life
Wireless web：
9h
Video playback：
9h
Charging Port:
MagSafe 2
Charging Speed: 85W Max
Passcode
Height: 247.1mm
Width: 358.9mm
Thickness: 18mm
Weight: 2.04kg
A1398
/
MacBookPro11,4
MacBookPro11,5
Not recorded
Tech Specs
MacBook Pro(Retina, 13-inch, 2015 Early)
Preview
MacBook Pro
(Retina, 13-inch, 2015 Early)
Release Date
2015.03.10
OS Support
OS X 10.10→macOS 12
Color
Intel 2-Core i5
i5-5257U
Intel 2-Core i5
i5-5287U
Intel 2-Core i7
i7-5557U
Graphics:
Intel® Iris 6100
RAM:
8GB16GB
Memory type:
DDR3L (1866 MHz)
Storage:
128GB256GB512GB1TB
Process:
Intel 14nm (Broadwell)
160013.3″227ppi2560IPS300nit1.58kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
sRGB
Typical:
300 nit
Thunderbolt 2：
2 (20Gb/s)
USB-A：
2 (5Gbps)
HDMI 1.4：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
74.9Wh
Battery Life
Wireless web：
10h
Video playback：
12h
Charging Port:
MagSafe 2
Charging Speed: 60W Max
Passcode
Height: 219mm
Width: 314mm
Thickness: 18mm
Weight: 1.58kg
A1502
/
MacBookPro12,1
Not recorded
Tech Specs
MacBook Air(13-inch, 2015 Early)
Preview
MacBook Air
(13-inch, 2015 Early)
Release Date
2015.03.10
OS Support
OS X 10.10→macOS 12
2-Core Intel Core i5
Intel Core i5-5250U
2-Core Intel Core i7
Intel Core i7-5650U
Graphics:
Intel HD 6000
RAM:
4GB8GB
Memory type:
LPDDR3 (1600 MHz)
Storage:
128GB256GB512GB
Process:
Intel 14nm (Broadwell)
90013.3″128ppi1440TN1.35kg
13.3″
TN
Resolution:
1440 x 900
PPI：
128
Color:
sRGB
Typical:
- nit
Thunderbolt 2：
1 (20Gb/s)
USB-A：
2 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
54Wh
Battery Life
Wireless web：
12h
Video playback：
12h
Charging Port:
MagSafe 2
Charging Speed: 45W Max
-
Height: 227mm
Width: 325mm
Thickness: 17mm
Weight: 1.35kg
A1466
-
MacBookAir7,2
Not recorded
Tech Specs
MacBook Air(11-inch, 2015 Early)
Preview
MacBook Air
(11-inch, 2015 Early)
Release Date
2015.03.10
OS Support
OS X 10.10→macOS 12
2-Core Intel Core i5
Intel Core i5-5250U
2-Core Intel Core i7
Intel Core i7-5650U
Graphics:
Intel HD 6000
RAM:
4GB8GB
Memory type:
LPDDR3 (1600 MHz)
Storage:
128GB256GB512GB
Process:
Intel 14nm (Broadwell)
76811.6″135ppi1366TN1.08kg
11.6″
TN
Resolution:
1366 x 768
PPI：
135
Color:
sRGB
Typical:
- nit
Thunderbolt 2：
1 (20Gb/s)
USB-A：
2 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
38Wh
Battery Life
Wireless web：
9h
Video playback：
10h
Charging Port:
MagSafe 2
Charging Speed: 45W Max
-
Height: 192mm
Width: 300mm
Thickness: 17mm
Weight: 1.08kg
A1465
-
MacBookAir7,1
Not recorded
Tech Specs
MacBook(Retina, 12-inch, 2015 Early)
Preview
MacBook
(Retina, 12-inch, 2015 Early)
Release Date
2015.03.10
OS Support
OS X 10.10→macOS 11
Color
2-Core Intel M
Intel M-5Y31
2-Core Intel M
Intel M-5Y51
2-Core Intel M
Intel M-5Y71
Graphics:
Intel® HD 5300
RAM:
8GB
Memory type:
LPDDR3 (1600 MHz)
Storage:
256GB512GB
Process:
Intel 14nm (Broadwell)
144012″226ppi2304IPS0.92kg
12″
IPS
Resolution:
2304 x 1440
PPI：
226
Color:
sRGB
Typical:
- nit
USB-C：
1 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
480p
Capacity:
39.7Wh
Battery Life
Wireless web：
9h
Video playback：
10h
Charging Port:
USB-C
Charging Speed: 29W Max
Passcode
Height: 196.5mm
Width: 280.5mm
Thickness: 13.1mm
Weight: 0.92kg
A1534
/
MacBook8,1
Tech Specs
MacBook Pro(Retina, 15-inch, 2014 Mid)
Preview
MacBook Pro
(Retina, 15-inch, 2014 Mid)
Release Date
2014.07.30
OS Support
OS X 10.9→macOS 11
Color
Intel 4-Core i7
i7-4770HQ
Intel 4-Core i7
i7-4870HQ
Intel 4-Core i7
i7-4980HQ
Graphics:
Intel® Iris Pro 5200NVIDIA GeForce GT 750M + Intel® Iris Pro 5200
RAM:
16GB
Memory type:
DDR3L (1600 MHz)
Storage:
256GB512GB1TB
Process:
Intel 22nm (Crystal Well)
180015.4″220ppi2880IPS2.02kg
15.4″
IPS
Resolution:
2880 x 1800
PPI：
220
Color:
sRGB
Typical:
- nit
Thunderbolt 2：
2 (20Gb/s)
USB-A：
2 (5Gbps)
HDMI 1.4：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.2
720p
Capacity:
95Wh
Battery Life
Wireless web：
8h
Video playback：
8h
Charging Port:
MagSafe 2
Charging Speed: 85W Max
Passcode
Height: 247.1mm
Width: 358.9mm
Thickness: 18mm
Weight: 2.02kg
A1398
/
MacBookPro11,2
MacBookPro11,3
Not recorded
Tech Specs
MacBook Pro(Retina, 13-inch, 2014 Mid)
Preview
MacBook Pro
(Retina, 13-inch, 2014 Mid)
Release Date
2014.07.30
OS Support
OS X 10.9→macOS 11
Color
Intel 2-Core i5
i5-4278U
Intel 2-Core i5
i5-4308U
Intel 2-Core i7
i7-4578U
Graphics:
Intel® Iris 5100
RAM:
8GB16GB
Memory type:
DDR3L (1600 MHz)
Storage:
128GB256GB512GB1TB
Process:
Intel 22nm (Haswell)
160013.3″227ppi2560IPS1.58kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
sRGB
Typical:
- nit
Thunderbolt 2：
2 (20Gb/s)
USB-A：
2 (5Gbps)
HDMI 1.4：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
71.8Wh
Battery Life
Wireless web：
9h
Video playback：
9h
Charging Port:
MagSafe 2
Charging Speed: 60W Max
Passcode
Height: 219mm
Width: 314mm
Thickness: 18mm
Weight: 1.58kg
A1502
/
MacBookPro11,1
Not recorded
Tech Specs
MacBook Air(13-inch, 2014 Early)
Preview
MacBook Air
(13-inch, 2014 Early)
Release Date
2014.04.30
OS Support
OS X 10.9→macOS 11
2-Core Intel Core i5
Intel Core i5-4260U
2-Core Intel Core i7
Intel Core i7-4650U
Graphics:
Intel HD 5000
RAM:
4GB8GB
Memory type:
LPDDR3 (1600 MHz)
Storage:
128GB256GB512GB
Process:
Intel 22nm (Haswell)
90013.3″128ppi1440TN1.35kg
13.3″
TN
Resolution:
1440 x 900
PPI：
128
Color:
sRGB
Typical:
- nit
Thunderbolt：
1 (10Gbps)
USB-A：
2 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
54Wh
Battery Life
Wireless web：
12h
Video playback：
12h
Charging Port:
MagSafe 2
Charging Speed: 45W Max
-
Height: 227mm
Width: 325mm
Thickness: 17mm
Weight: 1.35kg
A1466
-
MacBookAir6,2
Not recorded
Tech Specs
MacBook Air(11-inch, 2014 Early)
Preview
MacBook Air
(11-inch, 2014 Early)
Release Date
2014.04.30
OS Support
OS X 10.9→macOS 11
2-Core Intel Core i5
Intel Core i5-4260U
2-Core Intel Core i7
Intel Core i7-4650U
Graphics:
Intel HD 5000
RAM:
4GB8GB
Memory type:
LPDDR3 (1600 MHz)
Storage:
128GB256GB512GB
Process:
Intel 22nm (Haswell)
76811.6″135ppi1366TN1.08kg
11.6″
TN
Resolution:
1366 x 768
PPI：
135
Color:
sRGB
Typical:
- nit
Thunderbolt：
1 (10Gbps)
USB-A：
2 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
38Wh
Battery Life
Wireless web：
9h
Video playback：
9h
Charging Port:
MagSafe 2
Charging Speed: 45W Max
-
Height: 192mm
Width: 300mm
Thickness: 17mm
Weight: 1.08kg
A1465
-
MacBookAir6,1
Not recorded
Tech Specs
MacBook Pro(Retina, 15-inch, 2013 Late)
Preview
MacBook Pro
(Retina, 15-inch, 2013 Late)
Release Date
2013.10.23
OS Support
OS X 10.9→macOS 11
Color
Intel 4-Core i7
i7-4750HQ
Intel 4-Core i7
i7-4850HQ
Intel 4-Core i7
i7-4960HQ
Graphics:
Intel® Iris Pro 5200NVIDIA GeForce GT 750M + Intel® Iris Pro 5200
RAM:
8GB16GB
Memory type:
DDR3L (1600 MHz)
Storage:
256GB512GB1TB
Process:
Intel 22nm (Crystal Well)
180015.4″220ppi2880IPS2.02kg
15.4″
IPS
Resolution:
2880 x 1800
PPI：
220
Color:
sRGB
Typical:
- nit
Thunderbolt 2：
2 (20Gb/s)
USB-A：
2 (5Gbps)
HDMI 1.4：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
95Wh
Battery Life
Wireless web：
8h
Video playback：
8h
Charging Port:
MagSafe 2
Charging Speed: 85W Max
Passcode
Height: 247.1mm
Width: 358.9mm
Thickness: 18mm
Weight: 2.02kg
A1398
/
MacBookPro11,2
MacBookPro11,3
Not recorded
Tech Specs
MacBook Pro(Retina, 13-inch, 2013 Late)
Preview
MacBook Pro
(Retina, 13-inch, 2013 Late)
Release Date
2013.10.23
OS Support
OS X 10.9→macOS 11
Color
Intel 2-Core i5
i5-4258U
Intel 2-Core i5
i5-4288U
Intel 2-Core i7
i7-4558U
Graphics:
Intel® Iris 5100
RAM:
4GB8GB16GB
Memory type:
DDR3L (1600 MHz)
Storage:
128GB256GB512GB1TB
Process:
Intel 22nm (Haswell)
160013.3″227ppi2560IPS1.57kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
sRGB
Typical:
- nit
Thunderbolt 2：
2 (20Gb/s)
USB-A：
2 (5Gbps)
HDMI 1.4：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
71.8Wh
Battery Life
Wireless web：
9h
Video playback：
9h
Charging Port:
MagSafe 2
Charging Speed: 60W Max
Passcode
Height: 219mm
Width: 314mm
Thickness: 18mm
Weight: 1.57kg
A1502
/
MacBookPro11,1
Not recorded
Tech Specs
MacBook Air(13-inch, 2013 Mid)
Preview
MacBook Air
(13-inch, 2013 Mid)
Release Date
2013.06.11
OS Support
OS X 10.8→macOS 11
2-Core Intel Core i5
Intel Core i5-4250U
2-Core Intel Core i7
Intel Core i7-4650U
Graphics:
Intel HD 5000
RAM:
4GB8GB
Memory type:
LPDDR3 (1600 MHz)
Storage:
128GB256GB512GB
Process:
Intel 22nm (Haswell)
90013.3″128ppi1440TN1.35kg
13.3″
TN
Resolution:
1440 x 900
PPI：
128
Color:
sRGB
Typical:
- nit
Thunderbolt：
1 (10Gbps)
USB-A：
2 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
54Wh
Battery Life
Wireless web：
12h
Video playback：
10h
Charging Port:
MagSafe 2
Charging Speed: 45W Max
-
Height: 227mm
Width: 325mm
Thickness: 17mm
Weight: 1.35kg
A1466
-
MacBookAir6,2
Not recorded
Tech Specs
MacBook Air(11-inch, 2013 Mid)
Preview
MacBook Air
(11-inch, 2013 Mid)
Release Date
2013.06.11
OS Support
OS X 10.8→macOS 11
2-Core Intel Core i5
Intel Core i5-4250U
2-Core Intel Core i7
Intel Core i7-4650U
Graphics:
Intel HD 5000
RAM:
4GB8GB
Memory type:
LPDDR3 (1600 MHz)
Storage:
128GB256GB512GB
Process:
Intel 22nm (Haswell)
76811.6″135ppi1366TN1.08kg
11.6″
TN
Resolution:
1366 x 768
PPI：
135
Color:
sRGB
Typical:
- nit
Thunderbolt：
1 (10Gbps)
USB-A：
2 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11ac Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
38Wh
Battery Life
Wireless web：
9h
Video playback：
8h
Charging Port:
MagSafe 2
Charging Speed: 45W Max
-
Height: 192mm
Width: 300mm
Thickness: 17mm
Weight: 1.08kg
A1465
-
MacBookAir6,1
Not recorded
Tech Specs
MacBook Pro(Retina, 15-inch, 2013 Early)
Preview
MacBook Pro
(Retina, 15-inch, 2013 Early)
Release Date
2013.02.14
OS Support
OS X 10.8→macOS 10.15
Color
Intel 4-Core i7
i7-3635QM
Intel 4-Core i7
i7-3740QM
Intel 4-Core i7
i7-3840QM
Graphics:
NVIDIA GeForce GT 650M + Intel HD Graphics 4000
RAM:
8GB16GB
Memory type:
DDR3L (1600 MHz)
Storage:
256GB512GB768GB
Process:
Intel 22nm (Ivy Bridge)
180015.4″220ppi2880IPS2.02kg
15.4″
IPS
Resolution:
2880 x 1800
PPI：
220
Color:
sRGB
Typical:
- nit
Thunderbolt：
2 (10Gbps)
USB-A：
2 (5Gbps)
HDMI：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11n Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
95Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 2
Charging Speed: 85W Max
Passcode
Height: 247.1mm
Width: 358.9mm
Thickness: 18mm
Weight: 2.02kg
A1398
/
MacBookPro10,1
Not recorded
Tech Specs
MacBook Pro(Retina, 13-inch, 2013 Early)
Preview
MacBook Pro
(Retina, 13-inch, 2013 Early)
Release Date
2013.02.14
OS Support
OS X 10.8→macOS 10.15
Color
Intel 2-Core i5
i5-3230M
Intel 2-Core i7
i7-3540M
Graphics:
Intel® HD Graphics 4000
RAM:
8GB
Memory type:
DDR3L (1600 MHz)
Storage:
128GB256GB512GB768GB
Process:
Intel 22nm (Ivy Bridge)
160013.3″227ppi2560IPS1.62kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
sRGB
Typical:
- nit
Thunderbolt：
2 (10Gbps)
USB-A：
2 (5Gbps)
HDMI：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11n Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
74Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 2
Charging Speed: 60W Max
Passcode
Height: 219mm
Width: 314mm
Thickness: 19mm
Weight: 1.62kg
A1425
/
MacBookPro10,2
Not recorded
Tech Specs
MacBook Pro(Retina, 13-inch, 2012 Late)
Preview
MacBook Pro
(Retina, 13-inch, 2012 Late)
Release Date
2012.10.24
OS Support
OS X 10.8→macOS 10.15
Color
Intel 2-Core i5
i5-3210M
Intel 2-Core i7
i7-3520M
Graphics:
Intel® HD Graphics 4000
RAM:
8GB
Memory type:
DDR3L (1600 MHz)
Storage:
128GB256GB512GB768GB
Process:
Intel 22nm (Ivy Bridge)
160013.3″227ppi2560IPS1.62kg
13.3″
IPS
Resolution:
2560 x 1600
PPI：
227
Color:
sRGB
Typical:
- nit
Thunderbolt：
2 (10Gbps)
USB-A：
2 (5Gbps)
HDMI：
1
SDXC card slot：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11n Wi-Fi
Bluetooth:
Bluetooth 4.0
720p
Capacity:
74Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 2
Charging Speed: 60W Max
Passcode
Height: 219mm
Width: 314mm
Thickness: 19mm
Weight: 1.62kg
A1425
/
MacBookPro10,2
Not recorded
Tech Specs
MacBook Air(13-inch, 2012 Mid)
Preview
MacBook Air
(13-inch, 2012 Mid)
Release Date
2012.06.12
OS Support
Mac OS X 10.7→macOS 10.15
2-Core Intel Core i5
Intel Core i5-3427U
Graphics:
Intel HD 4000
RAM:
4GB8GB
Memory type:
DDR3L (1600 MHz)
Storage:
128GB256GB512GB
Process:
Intel 22nm (Ivy Bridge)
90013.3″128ppi1440TN1.35kg
13.3″
TN
Resolution:
1440 x 900
PPI：
128
Color:
sRGB
Typical:
- nit
Thunderbolt：
1 (10Gbps)
USB-A：
2 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 4.0
720p
Capacity:
50Wh
Battery Life
Wireless web：
7h
Video playback：
-
Charging Port:
MagSafe 2
Charging Speed: 45W Max
-
Height: 227mm
Width: 325mm
Thickness: 17mm
Weight: 1.35kg
A1466
-
MacBookAir5,2
Not recorded
Tech Specs
MacBook Air(11-inch, 2012 Mid)
Preview
MacBook Air
(11-inch, 2012 Mid)
Release Date
2012.06.12
OS Support
Mac OS X 10.7→macOS 10.15
2-Core Intel Core i5
Intel Core i5-3317U
Graphics:
Intel HD 4000
RAM:
4GB8GB
Memory type:
DDR3L (1600 MHz)
Storage:
64GB128GB256GB512GB
Process:
Intel 22nm (Ivy Bridge)
76811.6″135ppi1366TN1.08kg
11.6″
TN
Resolution:
1366 x 768
PPI：
135
Color:
sRGB
Typical:
- nit
Thunderbolt：
1 (10Gbps)
USB-A：
2 (5Gbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 4.0
720p
Capacity:
35Wh
Battery Life
Wireless web：
5h
Video playback：
-
Charging Port:
MagSafe 2
Charging Speed: 45W Max
-
Height: 192mm
Width: 300mm
Thickness: 17mm
Weight: 1.08kg
A1465
-
MacBookAir5,1
Not recorded
Tech Specs
MacBook Pro(Retina, 15-inch, 2012 Mid)
Preview
MacBook Pro
(Retina, 15-inch, 2012 Mid)
Release Date
2012.06
OS Support
Mac OS X 10.7→macOS 10.15
Color
4-Core Intel
Intel Core i7 3615QM
4-Core Intel
Intel Core i7 3720QM
4-Core Intel
Intel Core i7 3820QM
Graphics:
NVIDIA GeForce GT 650M + Intel HD Graphics 4000
RAM:
8GB16GB
Memory type:
DDR3L (1600 MHz)
Storage:
256GB SSD512GB SSD768GB SSD
Process:
22nm
180015.4″220ppi2880LED-backlit with IPS2.02kg
15.4″
LED-backlit with IPS
Resolution:
2880 x 1800
PPI：
220
Typical:
- nit
USB-A：
2 (5Gbps)
Thunderbolt：
2 (10Gbps)
HDMI：
1
SDXC：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 4.0
-
Capacity:
95Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 2
Charging Speed: -
Passcode
Height: 247.1mm
Width: 358.9mm
Thickness: 18mm
Weight: 2.02kg
A1398
-
MacBookPro10,1
Not recorded
-
MacBook Pro(15-inch, 2012 Mid)
Preview
MacBook Pro
(15-inch, 2012 Mid)
Release Date
2012.06
OS Support
Mac OS X 10.7→macOS 10.15
Color
4-Core Intel
Intel Core i7 3615QM
4-Core Intel
Intel Core i7 3720QM
4-Core Intel
Intel Core i7 3820QM
Graphics:
NVIDIA GeForce GT 650M + Intel HD Graphics 4000
RAM:
8GB
Memory type:
DDR3 (1600 MHz)
Storage:
500GB HDD750GB HDD1TB HDD128GB SSD256GB SSD512GB SSD
Process:
22nm
90015.4″110ppi1440LED-backlit glossy widescreen2.56kg
15.4″
LED-backlit glossy widescreen
Resolution:
1440 x 900
PPI：
110
Typical:
- nit
USB-A：
2 (5Gbps)
Firewire 800：
1 (800Mb/s)
Mini DisplayPort：
1
SDXC：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 4.0
-
Capacity:
77.5Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 249mm
Width: 364mm
Thickness: 24.1mm
Weight: 2.56kg
A1286
-
MacBookPro9,1
Not recorded
-
MacBook Pro(13-inch, 2012 Mid)
Preview
MacBook Pro
(13-inch, 2012 Mid)
Release Date
2012.06
OS Support
Mac OS X 10.7→macOS 10.15
Color
2-Core Intel
Intel Core i5 3210M
2-Core Intel
Intel Core i7 3520M
Graphics:
Intel HD Graphics 4000
RAM:
8GB
Memory type:
DDR3 (1600 MHz)
Storage:
500GB HDD750GB HDD1TB HDD128GB SSD256GB SSD512GB SSD
Process:
22nm
80013.3″113ppi1280LED-backlit glossy widescreen2.06kg
13.3″
LED-backlit glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
USB-A：
2 (5Gbps)
Firewire 800：
1 (800Mb/s)
Mini DisplayPort：
1
SDXC：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 4.0
-
Capacity:
63.5Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 227mm
Width: 325mm
Thickness: 24.1mm
Weight: 2.06kg
A1278
-
MacBookPro9,2
Not recorded
-
MacBook Pro(17-inch, 2011 Late)
Preview
MacBook Pro
(17-inch, 2011 Late)
Release Date
2011.10
OS Support
Mac OS X 10.7→macOS 10.13
Color
4-Core Intel
Intel Core i7 2760QM
4-Core Intel
Intel Core i7 2860QM
Graphics:
AMD Radeon HD 6770M + Intel HD Graphics 3000
RAM:
8GB
Memory type:
DDR3 (1333 MHz)
Storage:
750GB HDD500GB HDD128GB SSD256GB SSD512GB SSD
Process:
32nm
120017″133ppi1920LED-backlit glossy widescreen2.99kg
17″
LED-backlit glossy widescreen
Resolution:
1920 x 1200
PPI：
133
Typical:
- nit
USB-A：
3 (480Mbps)
Firewire 800：
1 (800Mb/s)
Thunderbolt：
1 (10Gbps)
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
95Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 267mm
Width: 393mm
Thickness: 25mm
Weight: 2.99kg
A1297
-
MacBookPro8,3
Not recorded
-
MacBook Pro(15-inch, 2011 Late)
Preview
MacBook Pro
(15-inch, 2011 Late)
Release Date
2011.10
OS Support
Mac OS X 10.7→macOS 10.13
Color
4-Core Intel
Intel Core i7 2675QM
4-Core Intel
Intel Core i7 2760QM
4-Core Intel
Intel Core i7 2860QM
Graphics:
AMD Radeon HD 6750M/6770M + Intel HD Graphics 3000
RAM:
8GB
Memory type:
DDR3 (1333 MHz)
Storage:
500GB HDD750GB HDD128GB SSD256GB SSD512GB SSD
Process:
32nm
105015.4″128ppi1680LED-backlit glossy widescreen2.54kg
15.4″
LED-backlit glossy widescreen
Resolution:
1680 x 1050
PPI：
128
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 800：
1 (800Mb/s)
Thunderbolt：
1 (10Gbps)
SDXC：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
77.5Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 249mm
Width: 364mm
Thickness: 24.1mm
Weight: 2.54kg
A1286
-
MacBookPro8,2
Not recorded
-
MacBook Pro(13-inch, 2011 Late)
Preview
MacBook Pro
(13-inch, 2011 Late)
Release Date
2011.10
OS Support
Mac OS X 10.7→macOS 10.13
Color
2-Core Intel
Intel Core i5 2435M
2-Core Intel
Intel Core i7 2640M
Graphics:
Intel HD Graphics 3000
RAM:
8GB
Memory type:
DDR3 (1333 MHz)
Storage:
500GB HDD750GB HDD128GB SSD256GB SSD512GB SSD
Process:
32nm
80013.3″113ppi1280LED-backlit glossy widescreen2.04kg
13.3″
LED-backlit glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 800：
1 (800Mb/s)
Thunderbolt：
1 (10Gbps)
SDXC：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
63.5Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 227mm
Width: 325mm
Thickness: 24.1mm
Weight: 2.04kg
A1278
-
MacBookPro8,1
Not recorded
-
MacBook Air(13-inch, 2011 Mid)
Preview
MacBook Air
(13-inch, 2011 Mid)
Release Date
2011.07.21
OS Support
Mac OS X 10.7→macOS 10.13
2-Core Intel Core i5
Intel Core i5-2557M
2-Core Intel Core i7
Intel Core i7-2677M
Graphics:
Intel HD 3000
RAM:
4GB
Memory type:
DDR3 (1333 MHz)
Storage:
128GB256GB
Process:
Intel 32nm (Sandy Bridge)
90013.3″128ppi1440TN1.35kg
13.3″
TN
Resolution:
1440 x 900
PPI：
128
Color:
sRGB
Typical:
- nit
Thunderbolt：
1 (10Gbps)
USB-A：
2 (480Mbps)
3.5 mm headphone jack：
1
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 4.0
-
Capacity:
50Wh
Battery Life
Wireless web：
7h
Video playback：
-
Charging Port:
MagSafe
Charging Speed: 45W Max
-
Height: 227mm
Width: 325mm
Thickness: 17mm
Weight: 1.35kg
A1369
-
MacBookAir4,2
Not recorded
Tech Specs
MacBook Air(11-inch, 2011 Mid)
Preview
MacBook Air
(11-inch, 2011 Mid)
Release Date
2011.07.21
OS Support
Mac OS X 10.7→macOS 10.13
2-Core Intel Core i5
Intel Core i5-2467M
2-Core Intel Core i7
Intel Core i7-2677M
Graphics:
Intel HD 3000
RAM:
2GB4GB
Memory type:
DDR3 (1333 MHz)
Storage:
64GB128GB256GB
Process:
Intel 32nm (Sandy Bridge)
76811.6″135ppi1366TN1.08kg
11.6″
TN
Resolution:
1366 x 768
PPI：
135
Color:
sRGB
Typical:
- nit
Thunderbolt：
1 (10Gbps)
USB-A：
2 (480Mbps)
3.5 mm headphone jack：
1
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 4.0
-
Capacity:
35Wh
Battery Life
Wireless web：
5h
Video playback：
-
Charging Port:
MagSafe
Charging Speed: 45W Max
-
Height: 192mm
Width: 300mm
Thickness: 17mm
Weight: 1.08kg
A1370
-
MacBookAir4,1
Not recorded
Tech Specs
MacBook Pro(17-inch, 2011 Early)
Preview
MacBook Pro
(17-inch, 2011 Early)
Release Date
2011.02
OS Support
Mac OS X 10.6→macOS 10.13
Color
4-Core Intel
Intel Core i7 2720QM
4-Core Intel
Intel Core i7 2820QM
Graphics:
AMD Radeon HD 6750M + Intel HD Graphics 3000
RAM:
8GB
Memory type:
DDR3 (1333 MHz)
Storage:
750GB HDD500GB HDD128GB SSD256GB SSD512GB SSD
Process:
32nm
120017″133ppi1920LED-backlit glossy widescreen2.99kg
17″
LED-backlit glossy widescreen
Resolution:
1920 x 1200
PPI：
133
Typical:
- nit
USB-A：
3 (480Mbps)
Firewire 800：
1 (800Mb/s)
Thunderbolt：
1 (10Gbps)
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
95Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 267mm
Width: 393mm
Thickness: 25mm
Weight: 2.99kg
A1297
-
MacBookPro8,3
Not recorded
-
MacBook Pro(15-inch, 2011 Early)
Preview
MacBook Pro
(15-inch, 2011 Early)
Release Date
2011.02
OS Support
Mac OS X 10.6→macOS 10.13
Color
4-Core Intel
Intel Core i7 2635QM
4-Core Intel
Intel Core i7 2720QM
4-Core Intel
Intel Core i7 2820QM
Graphics:
AMD Radeon HD 6490M/6750M + Intel HD Graphics 3000
RAM:
8GB
Memory type:
DDR3 (1333 MHz)
Storage:
500GB HDD750GB HDD128GB SSD256GB SSD512GB SSD
Process:
32nm
105015.4″128ppi1680LED-backlit glossy widescreen2.54kg
15.4″
LED-backlit glossy widescreen
Resolution:
1680 x 1050
PPI：
128
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 800：
1 (800Mb/s)
Thunderbolt：
1 (10Gbps)
SDXC：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
77.5Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 249mm
Width: 364mm
Thickness: 24.1mm
Weight: 2.54kg
A1286
-
MacBookPro8,2
Not recorded
-
MacBook Pro(13-inch, 2011 Early)
Preview
MacBook Pro
(13-inch, 2011 Early)
Release Date
2011.02
OS Support
Mac OS X 10.6→macOS 10.13
Color
2-Core Intel
Intel Core i5 2415M
2-Core Intel
Intel Core i7 2620M
Graphics:
Intel HD Graphics 3000
RAM:
8GB
Memory type:
DDR3 (1333 MHz)
Storage:
320GB HDD500GB HDD750GB HDD128GB SSD256GB SSD512GB SSD
Process:
32nm
80013.3″113ppi1280LED-backlit glossy widescreen2.04kg
13.3″
LED-backlit glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 800：
1 (800Mb/s)
Thunderbolt：
1 (10Gbps)
SDXC：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
63.5Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 227mm
Width: 325mm
Thickness: 24.1mm
Weight: 2.04kg
A1278
-
MacBookPro8,1
Not recorded
-
MacBook Air(13-inch, 2010 Late)
Preview
MacBook Air
(13-inch, 2010 Late)
Release Date
2010.10.21
OS Support
Mac OS X 10.6→macOS 10.13
Color
2-Core Intel
Intel Core 2 Duo SL9400
2-Core Intel
Intel Core 2 Duo SL9600
Graphics:
NVIDIA GeForce 320M
RAM:
2GB4GB
Memory type:
DDR3 (1066 MHz)
Storage:
128GB256GB
Process:
Intel 45nm (Penryn)
90013.3″128ppi1440TN1.32kg
13.3″
TN
Resolution:
1440 x 900
PPI：
128
Color:
sRGB
Typical:
- nit
Mini DisplayPort：
1
USB-A：
2 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
FaceTime camera
Capacity:
50Wh
Battery Life
Wireless web：
7h
Video playback：
-
Charging Port:
MagSafe
Charging Speed: 45W Max
-
Height: 227mm
Width: 325mm
Thickness: 17mm
Weight: 1.32kg
A1369
-
MacBookAir3,2
Not recorded
Tech Specs
MacBook Air(11-inch, 2010 Late)
Preview
MacBook Air
(11-inch, 2010 Late)
Release Date
2010.10.21
OS Support
Mac OS X 10.6→macOS 10.13
Color
2-Core Intel
Intel Core 2 Duo SL9400
2-Core Intel
Intel Core 2 Duo SL9600
Graphics:
NVIDIA GeForce 320M
RAM:
2GB4GB
Memory type:
DDR3 (1066 MHz)
Storage:
64GB128GB
Process:
Intel 45nm (Penryn)
76811.6″135ppi1366TN1.06kg
11.6″
TN
Resolution:
1366 x 768
PPI：
135
Color:
sRGB
Typical:
- nit
Mini DisplayPort：
1
USB-A：
2 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
FaceTime camera
Capacity:
35Wh
Battery Life
Wireless web：
5h
Video playback：
-
Charging Port:
MagSafe
Charging Speed: 45W Max
-
Height: 192mm
Width: 300mm
Thickness: 17mm
Weight: 1.06kg
A1370
-
MacBookAir3,1
Not recorded
Tech Specs
MacBook(13-inch, 2010 Mid)
Preview
MacBook
(13-inch, 2010 Mid)
Release Date
2010.05.19
OS Support
Mac OS X 10.6→macOS 10.13
Color
2-Core Core
Core 2 Duo P8600
Graphics:
NVIDIA GeForce 320M
RAM:
2GB4GB
Memory type:
DDR3 (1066 MHz)
Storage:
250GB
Process:
Intel 45nm (Penryn)
80013.3″114ppi1280TFT2.13kg
13.3″
TFT
Resolution:
1280 x 800
PPI：
114
Color:
sRGB
Typical:
- nit
USB-A：
2 (480Mbps)
Mini DP：
1
None：
0
Keyboard:
Full-size keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1
-
Capacity:
63.5Wh
Battery Life
Wireless web：
-
Video playback：
-
Charging Port:
MagSafe
Charging Speed: 60W Max
Passcode
Height: 231.7mm
Width: 330.3mm
Thickness: 27.4mm
Weight: 2.13kg
A1342
/
MacBook7,1
Not recorded
Tech Specs
MacBook Pro(17-inch, 2010 Mid)
Preview
MacBook Pro
(17-inch, 2010 Mid)
Release Date
2010.04
OS Support
Mac OS X 10.6→macOS 10.13
Color
2-Core Intel
Intel Core i5 540M
2-Core Intel
Intel Core i7 620M
2-Core Intel
Intel Core i7 640M
Graphics:
NVIDIA GeForce GT 330M + Intel HD Graphics
RAM:
4GB8GB
Memory type:
DDR3 (1066 MHz)
Storage:
500GB HDD128GB SSD256GB SSD512GB SSD
Process:
32nm
120017″133ppi1920LED-backlit glossy widescreen2.99kg
17″
LED-backlit glossy widescreen
Resolution:
1920 x 1200
PPI：
133
Typical:
- nit
USB-A：
3 (480Mbps)
Firewire 800：
1 (800Mb/s)
Mini DisplayPort：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
95Wh
Battery Life
Wireless web：
8-9h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 267mm
Width: 393mm
Thickness: 25mm
Weight: 2.99kg
A1297
-
MacBookPro6,1
Not recorded
-
MacBook Pro(15-inch, 2010 Mid)
Preview
MacBook Pro
(15-inch, 2010 Mid)
Release Date
2010.04
OS Support
Mac OS X 10.6→macOS 10.13
Color
2-Core Intel
Intel Core i5 520M
2-Core Intel
Intel Core i5 540M
2-Core Intel
Intel Core i7 620M
2-Core Intel
Intel Core i7 640M
Graphics:
NVIDIA GeForce GT 330M + Intel HD Graphics
RAM:
4GB8GB
Memory type:
DDR3 (1066 MHz)
Storage:
320GB HDD500GB HDD128GB SSD256GB SSD512GB SSD
Process:
32nm
105015.4″128ppi1680LED-backlit glossy widescreen2.54kg
15.4″
LED-backlit glossy widescreen
Resolution:
1680 x 1050
PPI：
128
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 800：
1 (800Mb/s)
Mini DisplayPort：
1
SD：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
77.5Wh
Battery Life
Wireless web：
8-9h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 249mm
Width: 364mm
Thickness: 24.1mm
Weight: 2.54kg
A1286
-
MacBookPro6,2
Not recorded
-
MacBook Pro(13-inch, 2010 Mid)
Preview
MacBook Pro
(13-inch, 2010 Mid)
Release Date
2010.04
OS Support
Mac OS X 10.6→macOS 10.13
Color
2-Core Intel
Intel Core 2 Duo P8600
2-Core Intel
Intel Core 2 Duo P8800
Graphics:
NVIDIA GeForce 320M
RAM:
4GB8GB
Memory type:
DDR3 (1066 MHz)
Storage:
250GB HDD320GB HDD500GB HDD128GB SSD256GB SSD512GB SSD
Process:
45nm
80013.3″113ppi1280LED-backlit glossy widescreen2.04kg
13.3″
LED-backlit glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 800：
1 (800Mb/s)
Mini DisplayPort：
1
SD：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
63.5Wh
Battery Life
Wireless web：
10h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 227mm
Width: 325mm
Thickness: 24.1mm
Weight: 2.04kg
A1278
-
MacBookPro7,1
Not recorded
-
MacBook(13-inch, 2009 Late)
Preview
MacBook
(13-inch, 2009 Late)
Release Date
2009.10.21
OS Support
Mac OS X 10.6→macOS 10.13
Color
2-Core Core
Core 2 Duo P7550
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB
Memory type:
DDR3 (1066 MHz)
Max RAM:
Official max 4GB (actual 8GB)
Storage:
250GB
Process:
Intel 45nm (Penryn)
80013.3″114ppi1280TFT2.13kg
13.3″
TFT
Resolution:
1280 x 800
PPI：
114
Color:
sRGB
Typical:
- nit
USB-A：
2 (480Mbps)
Mini DP：
1
None：
0
Keyboard:
Full-size keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1
-
Capacity:
60Wh
Battery Life
Wireless web：
-
Video playback：
-
Charging Port:
MagSafe
Charging Speed: 60W Max
Passcode
Height: 231.7mm
Width: 330.3mm
Thickness: 27.4mm
Weight: 2.13kg
A1342
/
MacBook6,1
Not recorded
Tech Specs
MacBook Air(2009 Mid)
Preview
MacBook Air
(2009 Mid)
Release Date
2009.06.08
OS Support
Mac OS X 10.5→macOS 10.11
Color
2-Core Intel
Intel Core 2 Duo SL9400
2-Core Intel
Intel Core 2 Duo SL9600
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB
Memory type:
DDR3 (1066 MHz)
Storage:
120GB HDD128GB SSD
Process:
Intel 45nm (Penryn)
80013.3″113ppi1280TN1.36kg
13.3″
TN
Resolution:
1280 x 800
PPI：
113
Color:
sRGB
Typical:
- nit
Mini DisplayPort：
1
USB-A：
1 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
40Wh
Battery Life
Wireless web：
4.5h
Video playback：
-
Charging Port:
MagSafe
Charging Speed: 45W Max
-
Height: 227mm
Width: 325mm
Thickness: 19.4mm
Weight: 1.36kg
A1304
-
MacBookAir2,1
Not recorded
Tech Specs
MacBook Pro(17-inch, 2009 Mid)
Preview
MacBook Pro
(17-inch, 2009 Mid)
Release Date
2009.06
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo T9600
2-Core Intel
Intel Core 2 Duo T9900
Graphics:
NVIDIA GeForce 9600M GT + NVIDIA GeForce 9400M
RAM:
4GB8GB
Memory type:
DDR3 (1066 MHz)
Storage:
500GB HDD128GB SSD256GB SSD
Process:
45nm
120017″133ppi1920LED-backlit glossy widescreen2.99kg
17″
LED-backlit glossy widescreen
Resolution:
1920 x 1200
PPI：
133
Typical:
- nit
USB-A：
3 (480Mbps)
Firewire 800：
1 (800Mb/s)
Mini DisplayPort：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
95Wh
Battery Life
Wireless web：
8h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 267mm
Width: 393mm
Thickness: 25mm
Weight: 2.99kg
A1297
-
MacBookPro5,2
Not recorded
-
MacBook Pro(15-inch, 2009 Mid)
Preview
MacBook Pro
(15-inch, 2009 Mid)
Release Date
2009.06
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo P8800
2-Core Intel
Intel Core 2 Duo T9600
2-Core Intel
Intel Core 2 Duo T9900
Graphics:
NVIDIA GeForce 9600M GT + NVIDIA GeForce 9400M
RAM:
4GB8GB
Memory type:
DDR3 (1066 MHz)
Storage:
320GB500GB128GB SSD256GB SSD
Process:
45nm
90015.4″110ppi1440LED-backlit glossy widescreen2.49kg
15.4″
LED-backlit glossy widescreen
Resolution:
1440 x 900
PPI：
110
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 800：
1 (800Mb/s)
Mini DisplayPort：
1
SD：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
73Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 249mm
Width: 364mm
Thickness: 24.1mm
Weight: 2.49kg
A1286
-
MacBookPro5,3
Not recorded
-
MacBook Pro(15-inch, 2.53GHz, 2009 Mid)
Preview
MacBook Pro
(15-inch, 2.53GHz, 2009 Mid)
Release Date
2009.06
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo P8700
Graphics:
NVIDIA GeForce 9400M
RAM:
4GB8GB
Memory type:
DDR3 (1066 MHz)
Storage:
250GB320GB500GB128GB SSD256GB SSD
Process:
45nm
90015.4″110ppi1440LED-backlit glossy widescreen2.49kg
15.4″
LED-backlit glossy widescreen
Resolution:
1440 x 900
PPI：
110
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 800：
1 (800Mb/s)
Mini DisplayPort：
1
SD：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
73Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 249mm
Width: 364mm
Thickness: 24.1mm
Weight: 2.49kg
A1286
-
MacBookPro5,4
Not recorded
-
MacBook Pro(13-inch, 2009 Mid)
Preview
MacBook Pro
(13-inch, 2009 Mid)
Release Date
2009.06
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo P7550
2-Core Intel
Intel Core 2 Duo P8400
2-Core Intel
Intel Core 2 Duo P8700
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB4GB8GB
Memory type:
DDR3 (1066 MHz)
Storage:
160GB250GB320GB500GB128GB SSD256GB SSD
Process:
45nm
80013.3″113ppi1280LED-backlit glossy widescreen2.04kg
13.3″
LED-backlit glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 800：
1 (800Mb/s)
Mini DisplayPort：
1
SD：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
60Wh
Battery Life
Wireless web：
7h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 227mm
Width: 325mm
Thickness: 24.1mm
Weight: 2.04kg
A1278
-
MacBookPro5,5
Not recorded
-
MacBook(13-inch, 2009 Mid)
Preview
MacBook
(13-inch, 2009 Mid)
Release Date
2009.05.28
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Core
Core 2 Duo P7450
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB
Memory type:
DDR2 (800 MHz)
Max RAM:
Official max 4GB (actual 6GB)
Storage:
160GB
Process:
Intel 45nm (Penryn)
80013.3″114ppi1280TFT2.27kg
13.3″
TFT
Resolution:
1280 x 800
PPI：
114
Color:
sRGB
Typical:
- nit
FireWire 400：
1 (400Mbps)
USB-A：
2 (480Mbps)
Mini DP：
1
None：
0
Keyboard:
Full-size keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n (draft-n)
Bluetooth:
Bluetooth 2.1
-
Capacity:
55Wh
Battery Life
Wireless web：
-
Video playback：
-
Charging Port:
MagSafe
Charging Speed: 60W Max
Passcode
Height: 227mm
Width: 325mm
Thickness: 27.5mm
Weight: 2.27kg
A1181
/
MacBook5,2
Not recorded
Tech Specs
MacBook(13-inch, 2009 Early)
Preview
MacBook
(13-inch, 2009 Early)
Release Date
2009.01.22
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Core
Core 2 Duo P7350
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB
Memory type:
DDR2 (667 MHz)
Max RAM:
Official max 4GB (actual 6GB)
Storage:
120GB
Process:
Intel 45nm (Penryn)
80013.3″114ppi1280TFT2.27kg
13.3″
TFT
Resolution:
1280 x 800
PPI：
114
Color:
sRGB
Typical:
- nit
FireWire 400：
1 (400Mbps)
USB-A：
2 (480Mbps)
Mini DP：
1
None：
0
Keyboard:
Full-size keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n (draft-n)
Bluetooth:
Bluetooth 2.1
-
Capacity:
55Wh
Battery Life
Wireless web：
-
Video playback：
-
Charging Port:
MagSafe
Charging Speed: 60W Max
Passcode
Height: 227mm
Width: 325mm
Thickness: 27.5mm
Weight: 2.27kg
A1181
/
MacBook5,2
Not recorded
Tech Specs
MacBook Pro(17-inch, 2009 Early)
Preview
MacBook Pro
(17-inch, 2009 Early)
Release Date
2009.01
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo T9550
2-Core Intel
Intel Core 2 Duo T9800
Graphics:
NVIDIA GeForce 9600M GT + NVIDIA GeForce 9400M
RAM:
4GB8GB
Memory type:
DDR3 (1066 MHz)
Storage:
320GB128GB SSD256GB SSD
Process:
45nm
120017″133ppi1920LED-backlit glossy widescreen2.99kg
17″
LED-backlit glossy widescreen
Resolution:
1920 x 1200
PPI：
133
Typical:
- nit
USB-A：
3 (480Mbps)
Firewire 800：
1 (800Mb/s)
Mini DisplayPort：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
95Wh
Battery Life
Wireless web：
8h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 267mm
Width: 393mm
Thickness: 25mm
Weight: 2.99kg
A1297
-
MacBookPro5,2
Not recorded
-
MacBook Air(2008 Late/2009 Early)
Preview
MacBook Air
(2008 Late/2009 Early)
Release Date
2008.10.15
OS Support
Mac OS X 10.5→macOS 10.11
Color
2-Core Intel
Intel Core 2 Duo SL9400
2-Core Intel
Intel Core 2 Duo SL9600
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB
Memory type:
DDR3 (1066 MHz)
Storage:
120GB HDD128GB SSD
Process:
Intel 45nm (Penryn)
80013.3″113ppi1280TN1.36kg
13.3″
TN
Resolution:
1280 x 800
PPI：
113
Color:
sRGB
Typical:
- nit
Mini DisplayPort：
1
USB-A：
1 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
40Wh
Battery Life
Wireless web：
4.5h
Video playback：
-
Charging Port:
MagSafe
Charging Speed: 45W Max
-
Height: 227mm
Width: 325mm
Thickness: 19.4mm
Weight: 1.36kg
A1304
-
MacBookAir2,1
Not recorded
Tech Specs
MacBook Pro(17-inch, 2008 Late)
Preview
MacBook Pro
(17-inch, 2008 Late)
Release Date
2008.10
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo T9300
2-Core Intel
Intel Core 2 Duo T9500
Graphics:
NVIDIA GeForce 8600M GT
RAM:
4GB6GB
Memory type:
DDR2 (667 MHz)
Storage:
320GB128GB SSD
Process:
45nm
120017″133ppi1920LED-backlit glossy3.08kg
17″
LED-backlit glossy
Resolution:
1920 x 1200
PPI：
133
Typical:
- nit
USB-A：
3 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
DVI：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
68Wh
Battery Life
Wireless web：
5h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 265mm
Width: 392mm
Thickness: 25.9mm
Weight: 3.08kg
A1261
-
MacBookPro4,1
Not recorded
-
MacBook Pro(15-inch, 2008 Late)
Preview
MacBook Pro
(15-inch, 2008 Late)
Release Date
2008.10
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo P8600
2-Core Intel
Intel Core 2 Duo T9400
2-Core Intel
Intel Core 2 Duo T9550
2-Core Intel
Intel Core 2 Duo T9600
2-Core Intel
Intel Core 2 Duo T9800
Graphics:
NVIDIA GeForce 9600M GT + NVIDIA GeForce 9400M
9600M GT: 256MB of GDDR3 on 2.4GHz, 512MB on 2.53/2.8GHz
RAM:
4GB8GB
Memory type:
DDR3 (1066 MHz)
Storage:
250GB320GB128GB SSD256GB SSD
Process:
45nm
90015.4″110ppi1440LED-backlit glossy widescreen2.49kg
15.4″
LED-backlit glossy widescreen
Resolution:
1440 x 900
PPI：
110
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 800：
1 (800Mb/s)
Mini DisplayPort：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
50Wh
Battery Life
Wireless web：
5h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 249mm
Width: 364mm
Thickness: 24.1mm
Weight: 2.49kg
A1286
-
MacBookPro5,1
Not recorded
-
MacBook(13-inch, Aluminum, 2008 Late)
Preview
MacBook
(13-inch, Aluminum, 2008 Late)
Release Date
2008.10
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo P7350
2-Core Intel
Intel Core 2 Duo P8600
Graphics:
NVIDIA GeForce 9400M
RAM:
2GB
Memory type:
DDR3 (1066 MHz)
Max RAM:
Official max 4GB (actual 8GB)
Storage:
160GB250GB
Process:
45nm
80013.3″113ppi1280LED-backlit glossy widescreen2.04kg
13.3″
LED-backlit glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
Mini DisplayPort：
1
USB-A：
2 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n (draft-n)
Bluetooth:
Bluetooth 2.1
-
Capacity:
45Wh
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
Weight: 2.04kg
-
-
MacBook5,1
-
-
MacBook(13-inch, 2008 Late)
Preview
MacBook
(13-inch, 2008 Late)
Release Date
2008.10
OS Support
Mac OS X 10.5→Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T8100
Graphics:
Intel GMA X3100
RAM:
1GB
Memory type:
DDR2 (667 MHz)
Max RAM:
Official max 4GB (actual 6GB)
Storage:
120GB
Process:
45nm
80013.3″113ppi1280glossy widescreen2.27kg
13.3″
glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
FireWire 400：
1 (400Mbps)
Mini-DVI：
1
USB-A：
2 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n (draft-n)
Bluetooth:
Bluetooth 2.1
-
Capacity:
55Wh
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
Weight: 2.27kg
-
-
MacBook4,1
-
-
MacBook Pro(17-inch, 2008 Early)
Preview
MacBook Pro
(17-inch, 2008 Early)
Release Date
2008.02
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo T9300
2-Core Intel
Intel Core 2 Duo T9500
Graphics:
NVIDIA GeForce 8600M GT
RAM:
4GB6GB
Memory type:
DDR2 (667 MHz)
Storage:
250GB200GB300GB
Process:
45nm
105017″116ppi1680CCFL or LED-backlit TFT3.08kg
17″
CCFL or LED-backlit TFT
Resolution:
1680 x 1050
PPI：
116
Typical:
- nit
USB-A：
3 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
DVI：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
68Wh
Battery Life
Wireless web：
5h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 265mm
Width: 392mm
Thickness: 25.9mm
Weight: 3.08kg
A1261
-
MacBookPro4,1
Not recorded
-
MacBook Pro(15-inch, 2008 Early)
Preview
MacBook Pro
(15-inch, 2008 Early)
Release Date
2008.02
OS Support
Mac OS X 10.5→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo T8300
2-Core Intel
Intel Core 2 Duo T9300
2-Core Intel
Intel Core 2 Duo T9500
Graphics:
NVIDIA GeForce 8600M GT
RAM:
4GB6GB
Memory type:
DDR2 (667 MHz)
Storage:
200GB250GB
Process:
45nm
90015.4″110ppi1440LED-backlit TFT2.45kg
15.4″
LED-backlit TFT
Resolution:
1440 x 900
PPI：
110
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
DVI：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
60Wh
Battery Life
Wireless web：
5h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 243mm
Width: 357mm
Thickness: 25.9mm
Weight: 2.45kg
A1260
-
MacBookPro4,1
Not recorded
-
MacBook(13-inch, 2008 Early)
Preview
MacBook
(13-inch, 2008 Early)
Release Date
2008.02
OS Support
Mac OS X 10.5→Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T8100
2-Core Intel
Intel Core 2 Duo T8300
Graphics:
Intel GMA X3100
RAM:
1GB2GB
Memory type:
DDR2 (667 MHz)
Max RAM:
Official max 4GB (actual 6GB)
Storage:
120GB160GB250GB
Process:
45nm
80013.3″113ppi1280glossy widescreen2.27kg
13.3″
glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
FireWire 400：
1 (400Mbps)
Mini-DVI：
1
USB-A：
2 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n (draft-n)
Bluetooth:
Bluetooth 2.0 + EDR
-
Capacity:
55Wh
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
Weight: 2.27kg
-
-
MacBook4,1
-
-
MacBook Air(2008 Early)
Preview
MacBook Air
(2008 Early)
Release Date
2008.01.16
OS Support
Mac OS X 10.5→macOS 10.7
Color
2-Core Intel
Intel Core 2 Duo P7500
2-Core Intel
Intel Core 2 Duo P7700
Graphics:
Intel GMA X3100
RAM:
2GB
Memory type:
DDR2 (667 MHz)
Storage:
80GB HDD64GB SSD
Process:
Intel 65nm (Merom)
80013.3″113ppi1280TN1.36kg
13.3″
TN
Resolution:
1280 x 800
PPI：
113
Color:
sRGB
Typical:
- nit
Micro-DVI：
1
USB-A：
1 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11a/b/g/n
Bluetooth:
Bluetooth 2.1 + EDR
-
Capacity:
37Wh
Battery Life
Wireless web：
5h
Video playback：
-
Charging Port:
MagSafe
Charging Speed: 45W Max
-
Height: 227mm
Width: 325mm
Thickness: 19.4mm
Weight: 1.36kg
A1237
-
MacBookAir1,1
Not recorded
Tech Specs
MacBook(13-inch, 2007 Late)
Preview
MacBook
(13-inch, 2007 Late)
Release Date
2007.11
OS Support
Mac OS X 10.5→Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T7300
2-Core Intel
Intel Core 2 Duo T7500
Graphics:
Intel GMA X3100
RAM:
1GB
Memory type:
DDR2 (667 MHz)
Max RAM:
Official max 4GB (actual 6GB)
Storage:
80GB120GB160GB
Process:
65nm
80013.3″113ppi1280glossy widescreen2.27kg
13.3″
glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
FireWire 400：
1 (400Mbps)
Mini-DVI：
1
USB-A：
2 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size keyboard
Touch Bar：
None
Wi-Fi:
802.11n draft
Bluetooth:
Bluetooth 2.0 + EDR
-
Capacity:
55Wh
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
Weight: 2.27kg
-
-
MacBook3,1
-
-
MacBook Pro(17-inch, 2007 Mid)
Preview
MacBook Pro
(17-inch, 2007 Mid)
Release Date
2007.06
OS Support
Mac OS X 10.4→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo T7700
2-Core Intel
Intel Core 2 Duo T7800
Graphics:
NVIDIA GeForce 8600M GT
RAM:
4GB6GB
Memory type:
DDR2 (667 MHz)
Storage:
160GB200GB250GB
Process:
65nm
105017″116ppi1680CCFL-backlit TFT3.08kg
17″
CCFL-backlit TFT
Resolution:
1680 x 1050
PPI：
116
Typical:
- nit
USB-A：
3 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
DVI：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.0 + EDR
-
Capacity:
68Wh
Battery Life
Wireless web：
5.75h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 265mm
Width: 392mm
Thickness: 25.9mm
Weight: 3.08kg
A1229
-
MacBookPro3,1
Not recorded
-
MacBook Pro(15-inch, 2007 Mid)
Preview
MacBook Pro
(15-inch, 2007 Mid)
Release Date
2007.06
OS Support
Mac OS X 10.4→OS X 10.11
Color
2-Core Intel
Intel Core 2 Duo T7500
2-Core Intel
Intel Core 2 Duo T7700
2-Core Intel
Intel Core 2 Duo T7800
Graphics:
NVIDIA GeForce 8600M GT
RAM:
4GB6GB
Memory type:
DDR2 (667 MHz)
Storage:
120GB160GB200GB250GB
Process:
65nm
90015.4″110ppi1440LED-backlit TFT2.54kg
15.4″
LED-backlit TFT
Resolution:
1440 x 900
PPI：
110
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
DVI：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.0 + EDR
-
Capacity:
60Wh
Battery Life
Wireless web：
6h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 243mm
Width: 357mm
Thickness: 25.9mm
Weight: 2.54kg
A1226
-
MacBookPro3,1
Not recorded
-
MacBook(13-inch, 2007 Mid)
Preview
MacBook
(13-inch, 2007 Mid)
Release Date
2007.05
OS Support
Mac OS X 10.4→Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T7200
2-Core Intel
Intel Core 2 Duo T7400
Graphics:
Intel GMA 950
RAM:
1GB
Memory type:
DDR2 (667 MHz)
Max RAM:
Official max 2GB (4GB actual, ~3GB usable)
Storage:
80GB120GB160GB
Process:
65nm
80013.3″113ppi1280glossy widescreen2.31kg
13.3″
glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
FireWire 400：
1 (400Mbps)
Mini-DVI：
1
USB-A：
2 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size keyboard
Touch Bar：
None
Wi-Fi:
802.11n draft
Bluetooth:
Bluetooth 2.0 + EDR
-
Capacity:
55Wh
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
Weight: 2.31kg
-
-
MacBook2,1
-
-
MacBook(13-inch, 2006 Late)
Preview
MacBook
(13-inch, 2006 Late)
Release Date
2006.11
OS Support
Mac OS X 10.4→Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T5600
2-Core Intel
Intel Core 2 Duo T7200
Graphics:
Intel GMA 950
RAM:
512MB1GB
Memory type:
DDR2 (667 MHz)
Max RAM:
Official max 2GB (4GB actual, ~3GB usable)
Storage:
60GB80GB120GB
Process:
65nm
80013.3″113ppi1280glossy widescreen2.36kg
13.3″
glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
FireWire 400：
1 (400Mbps)
Mini-DVI：
1
USB-A：
2 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size keyboard
Touch Bar：
None
Wi-Fi:
802.11g (draft-n via optional enabler)
Bluetooth:
Bluetooth 2.0 + EDR
-
Capacity:
55Wh
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
Weight: 2.36kg
-
-
MacBook2,1
-
-
MacBook Pro(17-inch, Core 2 Duo, 2006)
Preview
MacBook Pro
(17-inch, Core 2 Duo, 2006)
Release Date
2006.10
OS Support
Mac OS X 10.4→Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T7600
Graphics:
ATI Mobility Radeon X1600
RAM:
2GB3GB
Memory type:
DDR2 (667 MHz)
Storage:
100GB160GB200GB
Process:
65nm
105017″116ppi1680TFT3.08kg
17″
TFT
Resolution:
1680 x 1050
PPI：
116
Typical:
- nit
USB-A：
3 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
DVI：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.0 + EDR
-
Capacity:
68Wh
Battery Life
Wireless web：
5.5h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 265mm
Width: 392mm
Thickness: 25.9mm
Weight: 3.08kg
A1212
-
MacBookPro2,1
Not recorded
-
MacBook Pro(15-inch, Core 2 Duo, 2006)
Preview
MacBook Pro
(15-inch, Core 2 Duo, 2006)
Release Date
2006.10
OS Support
Mac OS X 10.4→Mac OS X 10.7
Color
2-Core Intel
Intel Core 2 Duo T7400
2-Core Intel
Intel Core 2 Duo T7600
Graphics:
ATI Mobility Radeon X1600
RAM:
2GB3GB
Memory type:
DDR2 (667 MHz)
Storage:
120GB160GB200GB
Process:
65nm
90015.4″110ppi1440TFT2.54kg
15.4″
TFT
Resolution:
1440 x 900
PPI：
110
Typical:
- nit
USB-A：
2 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
DVI：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g/n
Bluetooth:
Bluetooth 2.0 + EDR
-
Capacity:
60Wh
Battery Life
Wireless web：
5h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 243mm
Width: 357mm
Thickness: 25.9mm
Weight: 2.54kg
A1211
-
MacBookPro2,2
Not recorded
-
MacBook(13-inch, 2006)
Preview
MacBook
(13-inch, 2006)
Release Date
2006.05
OS Support
Mac OS X 10.4→Mac OS X 10.6
Color
2-Core Intel
Intel Core Duo T2400
2-Core Intel
Intel Core Duo T2500
Graphics:
Intel GMA 950
RAM:
512MB
Memory type:
DDR2 (667 MHz)
Max RAM:
Official max 2GB
Storage:
60GB80GB
Process:
65nm
80013.3″113ppi1280glossy widescreen2.36kg
13.3″
glossy widescreen
Resolution:
1280 x 800
PPI：
113
Typical:
- nit
FireWire 400：
1 (400Mbps)
Mini-DVI：
1
USB-A：
2 (480Mbps)
3.5 mm headphone jack：
1
Keyboard:
Full-size keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g
Bluetooth:
Bluetooth 2.0 + EDR
-
Capacity:
55Wh
Battery Life
Charging Port:
MagSafe
Charging Speed: -
-
Weight: 2.36kg
-
-
MacBook1,1
-
-
MacBook Pro(17-inch, 2006)
Preview
MacBook Pro
(17-inch, 2006)
Release Date
2006.04
OS Support
Mac OS X 10.4→Mac OS X 10.6
Color
2-Core Intel
Intel Core Duo T2600
Graphics:
ATI Mobility Radeon X1600
RAM:
1GB2GB
Memory type:
DDR2 (667 MHz)
Storage:
100GB120GB
Process:
65nm
105017″116ppi1680TFT3.08kg
17″
TFT
Resolution:
1680 x 1050
PPI：
116
Typical:
- nit
USB-A：
3 (480Mbps)
Firewire 400：
1 (400Mb/s)
Firewire 800：
1 (800Mb/s)
DVI：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g
Bluetooth:
Bluetooth 2.0 + EDR
-
Capacity:
68Wh
Battery Life
Wireless web：
5.5h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 265mm
Width: 392mm
Thickness: 25.9mm
Weight: 3.08kg
A1151
-
MacBookPro1,2
Not recorded
-
MacBook Pro(15-inch, 2006 Early)
Preview
MacBook Pro
(15-inch, 2006 Early)
Release Date
2006.01
OS Support
Mac OS X 10.4→Mac OS X 10.6
Color
2-Core Intel
Intel Core Duo T2400
2-Core Intel
Intel Core Duo T2500
2-Core Intel
Intel Core Duo T2600
Graphics:
ATI Mobility Radeon X1600
RAM:
1GB2GB
Memory type:
DDR2 (667 MHz)
Storage:
80GB100GB120GB
Process:
65nm
90015.4″110ppi1440TFT300 nitsnit2.54kg
15.4″
TFT
Resolution:
1440 x 900
PPI：
110
Typical:
300 nits nit
USB-A：
2 (480Mbps)
Firewire 400：
1 (400Mb/s)
DVI：
1
ExpressCard/34：
1
3.5 mm headphone jack：
1
Keyboard:
Full-size backlit keyboard
Touch Bar：
None
Wi-Fi:
802.11b/g
Bluetooth:
Bluetooth 2.0 + EDR
-
Capacity:
60Wh
Battery Life
Wireless web：
4.5h
Charging Port:
MagSafe 1
Charging Speed: -
Passcode
Height: 243mm
Width: 357mm
Thickness: 25.9mm
Weight: 2.54kg
A1150
-
MacBookPro1,1
Not recorded
-
