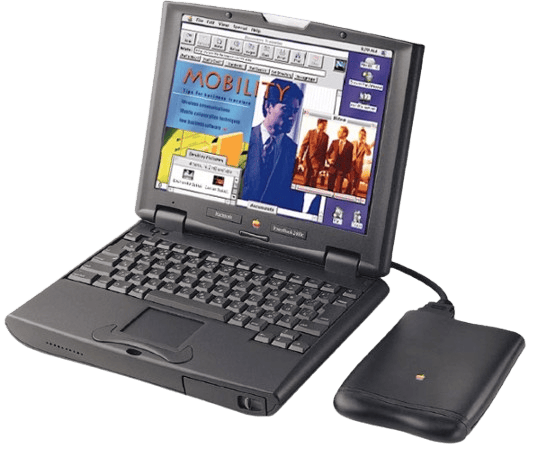

Quietly released in the summer of 1997, the PowerBook 2400 was Apple's first subnotebook since the Duo 2300, co-designed with IBM. This model omitted an internal floppy or CD-ROM drive but retained most flagship notebook feature while weighing only 4.4 pounds. Its compact design made it a perfect mix of portability and power. A 240 MHz version (codenamed "Mighty Cat") was sold only in Japan.

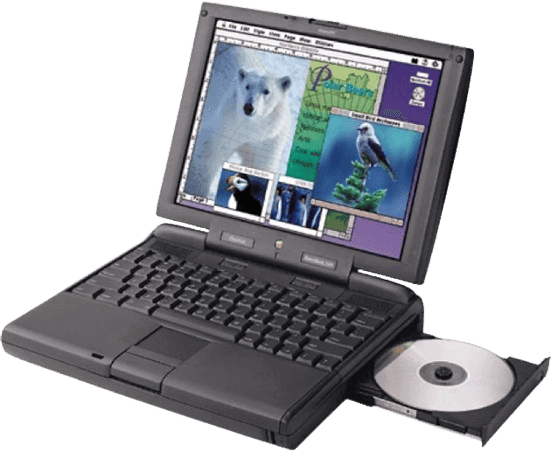

Announced in February 1997, the PowerBook 3400 was the world's fastest notebook at the time. Apple hoped this PCI-based design would revive its notebook market share. It featured expansion bays compatible with the 5300 and was the first PowerBook with a 1MB IrDA infrared standard. Prices ranged from $4,500 for a 180 MHz base to $6,500 for a 240 MHz version (which shipped months later).

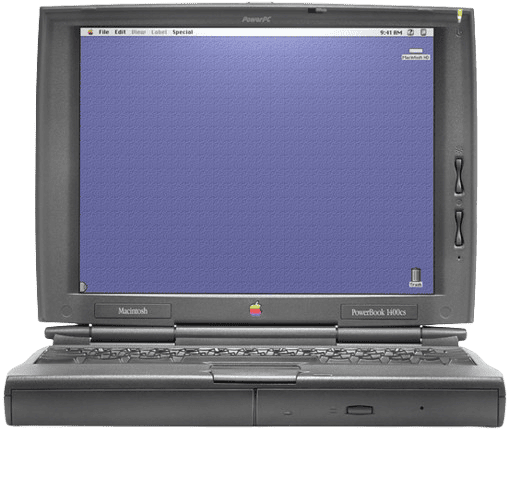

Released in October 1996, the PowerBook 1400cs partially addressed recent quality issues. Powered by the same 117 MHz 603e processor as the 5300, it introduced an internal 6x CD-ROM. Its sleep-swappable bay supported various drives like MO and Zip. It debuted stackable RAM modules (a PowerBook first) up to 64MB, internal expansion slots for video out or Ethernet, and PC card slots supporting two Type II or one Type III.

Released in October 1996, the PowerBook 1400c was an upgraded version of the 1400 series, powered by a 117 MHz 603e processor and equipped with an internal 6x CD-ROM (later 8x). Its sleep-swappable bay supported various storage devices, with stackable RAM up to 64MB. It also offered internal expansion for video out or Ethernet, plus standard PC card slots. Some models added L2 cache for performance.

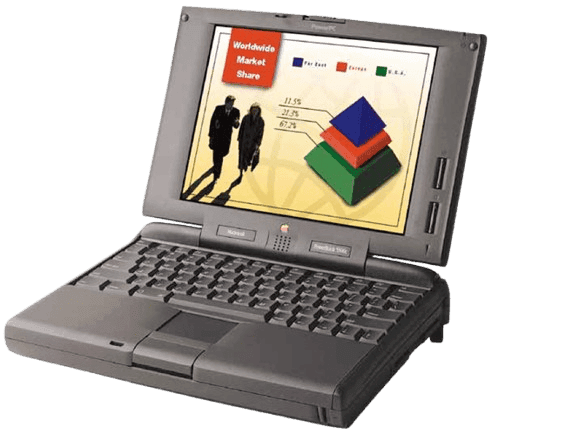

Introduced in August 1995, the PowerBook 5300 was the first PowerBook to use a PowerPC processor and to feature a sleep-swappable expansion bay. It offered various screen configs and two RAM/HDD options (8/500 or 16/750). However, it suffered from severe hardware reliability issues (DOA), making it a symbol of Apple's mid-90s quality woes. Features included an IR transceiver; the 100 MHz 8/500 was $2,300.

Introduced in August 1995, the 5300cs was the dual-scan color version of the 5300 series, running a 100 MHz PowerPC 603e with a swappable bay and IR support. Configs included 8/500 ($2,900) and 16/750 ($3,700). Like its siblings, reliability and DOA issues damaged Apple's reputation.

Introduced in August 1995, the 5300c was the active-matrix color version of the 5300 series with a 100 MHz PowerPC 603e, swappable bay, and IR support. Configs were 8/500 ($3,900) and 16/750 ($4,700). While the high-quality screen was a plus, hardware reliability and DOA rates still dampened the user experience.

Introduced in August 1995, the 5300ce was the high-end model of the 5300 series, with a 117 MHz PowerPC 603e, 32MB RAM, and a 1.1GB HDD, priced at $6,800. It had a swappable bay and IR module for wireless networking. Like the rest of the line, reliability setbacks and DOA issues made it emblematic of Apple's QA problems.

Released in August 1995, the PowerBook 2300c was the first PowerPC Duo, running a 100 MHz 603e. Configs were 8/750 ($3,700) and 20/1.1GB ($4,700 with a 14.4 Kbps modem). Discontinued in early 1997, it left a subnotebook void that remained unfilled until the PowerBook 2400.

Following the PowerBook 5300, Apple briefly offered PowerPC upgrades for the 500 series, which were short-lived. Details are scarce, reflecting Apple's turbulent transition to the PowerPC architecture.

The PowerBook 190 was Apple's last 68k notebook, featuring an expansion bay for third-party drives and two PC card slots. Options included an IR transceiver and video out. RAM configs were 4MB ($1,700) or 8MB ($1,900), positioned as entry-level.

The 190cs was the color version of the 190 with a 68k CPU, dual-scan color screen, and 8MB RAM for $2,300. It supported bays, PC cards, and IR/video out. Apple's last 68k, it catered to budget users wanting color.

Released in 1995, the 550c was an upgraded 540c sold exclusively in Japan. It featured a 10.4-inch screen, full 68040 CPU (adding an FPU), and an exclusive black casing setup.

Released in July 1994, the PowerBook 150 was the last 100 series model in the original case and the most affordable consumer model ($1,450-$1,600). It boosted CPU speed by 8MHz over the 145B but removed the ADB port and used a budget passive-matrix screen without external video support. Like older models, it had just one serial port but support for third-party modems. Resolution rose to 640x480. While looking like a 140, its logic board matched the Duo 230. It broke the 14MB RAM barrier for the 100 series, debuted a lithium-ion backup battery for RAM preservation, and was the first Mac using cheaper IDE drives. It was the last model with a trackball and lacked SCSI disk mode.

Released in May 1994 with the 520, the 540/c were the fastest notebooks at the time. The 540 was $3,160; the 540c was $4,840.

Released in May 1994 with the 520, the 540/c were the fastest notebooks at the time. The 540 was $3,160; the 540c was $4,840.

Released in May 1994, the 520 was the first PowerBook with a 68LC040 CPU. It replaced the trackball with a trackpad and included mic/speakers with a 4-bit grayscale screen for $2,270.

The 520c was the first PowerBook featuring a dual-scan 256-color screen, priced at $2,900.

The Duo 280 brought '040 performance upgrades to the Duo series, priced at $2,600.

The 280c featured a 16-bit active-matrix color screen and was priced at $3,750.

Released in October 1993, the Duo 270c added an FPU to its 33MHz 68030 and was the first Duo with a 16-bit active-matrix screen. Priced at $3,100, it was discontinued in May 1994.

Released in October 1993, the Duo 250 mirrored the 230 but added a 4-bit active-matrix screen for $2,500. Discontinued in May 1994.

Released in August 1993 to replace the 160, the 165 mirrored the 165c but with a grayscale screen and no FPU. Priced at $1,500; discontinued in July 1994.

Released in February 1993, the 165c was the first color PowerBook, priced at $3,400. Discontinued in December 1993.

Released in October 1992, the Duo 230 was identical to the 210 but with a faster 33MHz 68030 for $2,610. Discontinued in July 1994.

Pioneering a new generation, the Duo 210 acted as a desk-ready PC via the DuoDock while staying highly portable. Running a 25 MHz 68030 with a 4-bit passive-matrix screen and 4–32MB RAM, its signature was the 152-pin PDS connector for docking setups supporting external displays and RAM. Priced at $2,250; discontinued in October 1993.

Released in October 1992 with the 160, the PowerBook 180 was the new flagship replacing the 170. It featured a more powerful 33 MHz 68030 and 68882 FPU. It introduced power-saving modes running at a slower 16 MHz. It included a 9.5-inch active-matrix LCD supporting 4-bit grayscale at 640x400 with a trackball keypad setup, 1.44MB floppy, and 80MB HDD.

In June 1993, Apple released the color 180c. It offered an 8.4-inch active-matrix color LCD supporting 256 colors and was the first PowerBook natively supporting 640x480 resolution (others were 640x400). A thicker cover design drew from the Duo aesthetics.

Released in October 1992 with the 180, the 160 was a mid-range laptop replacing the 140's place in specs. It ran a 25 MHz 68030 without FPU. It stood out for its 4-bit grayscale passive-matrix screen, external color video port out, and 14MB RAM support limit. A power saver feature allowed CPU triggers at 16 MHz. Base storage was a 40MB SCSI HDD.

Released in August 1992 as a speed boost for the 140, priced at $2,150. Replaced in June 1993 by the 145B, an identical build but cheaper and with 2MB extra soldered RAM. Discontinued in July 1994.

Released in June 1993 as a response to the 145, differing mainly with a cheaper tag and 4MB base RAM. Discontinued in July 1994.

Released in October 1991, the 170 was the top-tier PowerBook and the first with an active-matrix screen. It included an optional internal modem slot for a true mobile office. Priced at $4,600; discontinued in October 1992.

Introduced in October 1991, the 140 was the 16 MHz 68030 version of the 100 with an internal floppy drive. Despite passive matrix flaws, it stayed highly practical. $3,000; replaced in 1992 by the 145.

The PowerBook 100 was Apple's first truly portable Mac, mirroring the Portable processors. Despite slower speeds, a passive-matrix screen, and no internal floppy, it was well-received at $2,500. It launched alongside the 140 and 170, featuring a simpler logic board design built by Sony.

Released in September 1989, the Macintosh Portable was Apple's first portable attempt. It supported up to two SuperDrive configurations. Poor reception followed due to bulk and slow specs, alongside an active-matrix screen pushing prices to $6,500.
