How to compare different PowerBook models?

You can use MacDB's comprehensive comparison table to see differences in chip performance, battery life, and display specs across all PowerBook generations.

What is the latest PowerBook model parameter?

Detailed specifications comparison for PowerBook G4, covering Titanium and Aluminum models. Compare processor speed upgrade paths, NVIDIA/ATI pro graphics, display resolution differences, DVI output, optical drive types, cooling design, battery capacity, and 'Holy Grail' model features for video/audio workflow research and collectors.

PowerBook G4 Specs History

Horizontal Scroll: Shift + Mouse Wheel

Updated: 2026/03/11

Device Count: 23

Compare

Fullscreen

Zoom(100%)

Dark Mode

中文站点

Model	Basic			Display		Connectivity		Power		Other
Model	Basic Info	Chip / Memory / GPU	Chip Process	Display Specs	Screen Details	Ports	Keyboard / Wireless	Battery / Life	Charging Specs	Size & Weight	Model Numbers	Model ID

Preview

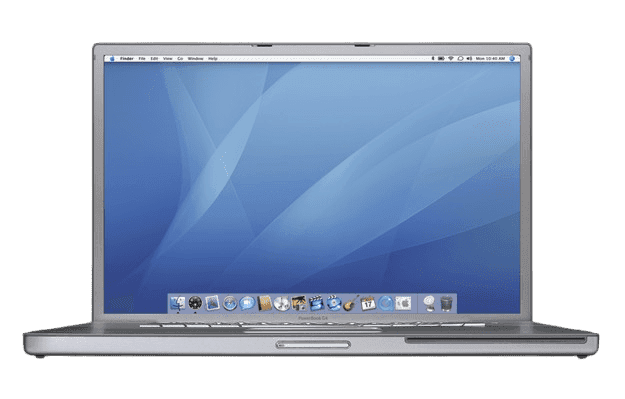

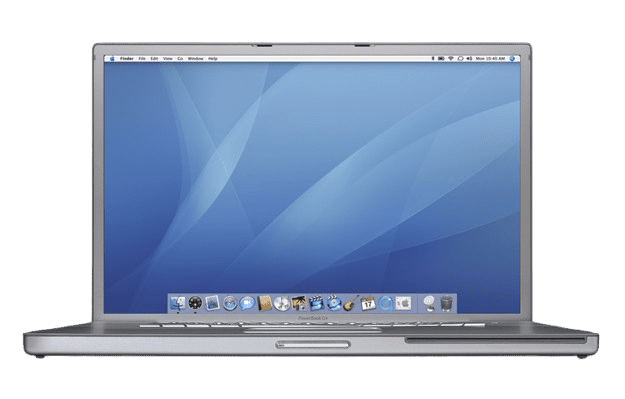

PowerBook G4

(17-inch Double-Layer SD)

Release Date

2005.10

OS Support

Mac OS X 10.4→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447B (G4)

Graphics:

ATI Mobility Radeon 9700

RAM:

256MB2.0GB

Storage:

120GB

Process:

130nm

17"

TFT

Resolution:

1440 x 900

PPI：

106

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s / 800Mb/s)

3.5mm analog/optical combo jack：

Keyboard:

Full-size keyboard (78 U.S. or 79 ISO keys, 12 function keys, 4 arrow keys, embedded numeric keypad, with ambient light sensor)

Wi-Fi:

Built-in AirPort Extreme card (802.11b/g)

Bluetooth:

Built-in Bluetooth 2.0 + EDR

Keyboard:

Full-size keyboard (78 U.S. or 79 ISO keys, 12 function keys, 4 arrow keys, embedded numeric keypad, with ambient light sensor)

Capacity:

58Wh

Battery Life

Battery life：

5.5 hours

Charging Port:

Charging Speed: -

Height: 259mm

Width: 392mm

Thickness: 26mm

Weight: 3.1kg

A1139

PowerBook5,9

Preview

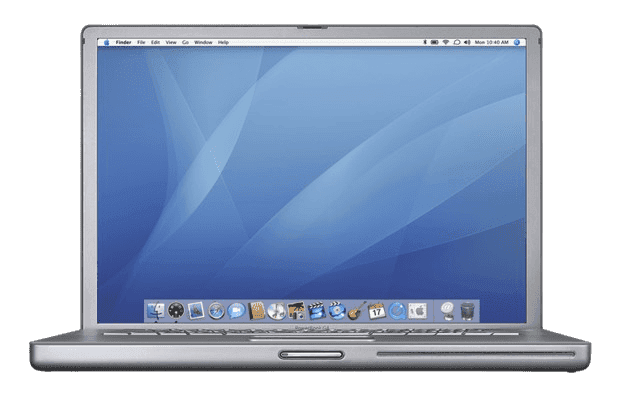

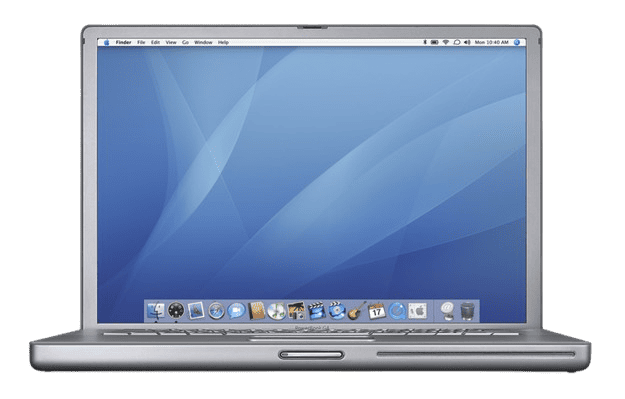

PowerBook G4

(15-inch Double-Layer SD)

Release Date

2005.10

OS Support

Mac OS X 10.4→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447B (G4)

Graphics:

ATI Mobility Radeon 9700

RAM:

Storage:

80GB100GB120GB

Process:

130nm

15"

TFT

Resolution:

- x -

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s / 800Mb/s)

3.5mm analog/optical combo jack：

Keyboard:

Full-size backlit keyboard (78/79 keys, 12 function keys, 4 arrow keys, embedded numeric keypad, with ambient light sensor)

Wi-Fi:

802.11a/b/g

Bluetooth:

Bluetooth 2.0 + EDR

Keyboard:

Full-size backlit keyboard (78/79 keys, 12 function keys, 4 arrow keys, embedded numeric keypad, with ambient light sensor)

Capacity:

50Wh

Battery Life

Battery life：

5.5 hours

Charging Port:

Charging Speed: -

Height: 241mm

Width: 341mm

Thickness: 28mm

Weight: 2.6kg

A1138

PowerBook5,8

Preview

PowerBook G4

(17-inch 1.67GHz)

Release Date

2005.01

OS Support

Mac OS X 10.3→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447B (G4)

Graphics:

ATI Mobility Radeon 9700

RAM:

2.0GB

Storage:

100GB

Process:

130nm

17"

TFT

Resolution:

1440 x 900

PPI：

106

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s / 800Mb/s)

3.5mm analog/optical combo jack：

Keyboard:

Full-size backlit keyboard (78/79 keys, 12 function keys, 4 arrow keys, embedded numeric keypad, with ambient light sensor)

Wi-Fi:

802.11a/b/g

Bluetooth:

Bluetooth 2.0 + EDR

Keyboard:

Full-size backlit keyboard (78/79 keys, 12 function keys, 4 arrow keys, embedded numeric keypad, with ambient light sensor)

Capacity:

58Wh

Battery Life

Battery life：

4.5 hours

Charging Port:

Charging Speed: -

Height: 259mm

Width: 392mm

Thickness: 26mm

Weight: 3.1kg

A1107

PowerBook5,7

Preview

PowerBook G4

(15-inch 1.67GHz)

Release Date

2005.01

OS Support

Mac OS X 10.3→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447A or 7447B (G4)

RAM:

Storage:

80GB100GB

Process:

130nm

15"

TFT

Resolution:

- x -

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s / 800Mb/s)

3.5mm analog/optical combo jack：

Keyboard:

Full-size backlit keyboard (78/79 keys, 12 function keys, 4 arrow keys, embedded numeric keypad, with ambient light sensor)

Wi-Fi:

802.11a/b/g

Bluetooth:

Bluetooth 2.0 + EDR

Keyboard:

Full-size backlit keyboard (78/79 keys, 12 function keys, 4 arrow keys, embedded numeric keypad, with ambient light sensor)

Capacity:

50Wh

Battery Life

Battery life：

4.5 hours

Charging Port:

Charging Speed: -

Height: 241mm

Width: 341mm

Thickness: 28mm

Weight: 2.6kg

A1106

PowerBook5,6

Preview

PowerBook G4

(15-inch 1.5GHz)

Release Date

2005.01

OS Support

Mac OS X 10.3→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447A or 7447B (G4)

RAM:

Storage:

80GB100GB

Process:

130nm

15"

TFT

Resolution:

- x -

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s / 800Mb/s)

3.5mm analog/optical combo jack：

Keyboard:

Full-size backlit keyboard (78/79 keys, 12 function keys, 4 arrow keys, embedded numeric keypad, with ambient light sensor)

Wi-Fi:

802.11a/b/g

Bluetooth:

Bluetooth 2.0 + EDR

Keyboard:

Full-size backlit keyboard (78/79 keys, 12 function keys, 4 arrow keys, embedded numeric keypad, with ambient light sensor)

Capacity:

50Wh

Battery Life

Battery life：

4.5 hours

Charging Port:

Charging Speed: -

Height: 241mm

Width: 341mm

Thickness: 28mm

Weight: 2.6kg

A1106

PowerBook5,6

Preview

PowerBook G4

(12-inch 1.5GHz)

Release Date

2005.01.31

OS Support

Mac OS X 10.3→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447A G4

Graphics:

NVIDIA GeForce FX Go5200

RAM:

256MB

Storage:

60GB80GB100GB

Process:

130nm

12.1"

TFT

Resolution:

1024 x 768

PPI：

100

Mini-DVI：

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s)

3.5mm analog input jack：

Keyboard:

Full-size keyboard

Wi-Fi:

802.11a/b/g

Bluetooth:

Bluetooth 2.0 + EDR

Keyboard:

Full-size keyboard

Capacity:

50Wh

Battery Life

Battery life：

5 hours

Charging Port:

Charging Speed: 45W Max

Height: 219mm

Width: 277mm

Thickness: 30mm

Weight: 2.1kg

A1104

PowerBook6,8

Preview

PowerBook G4

(17-inch 1.5GHz)

Release Date

2004.04

OS Support

Mac OS X 10.3→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447A G4

Graphics:

ATI Mobility Radeon 9700

RAM:

2.0GB

Storage:

80GB

Process:

130nm

17"

TFT

Resolution:

1440 x 900

PPI：

106

DVI：

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s)

3.5mm analog input jack：

Keyboard:

Full-size backlit keyboard

Wi-Fi:

802.11a/b/g

Bluetooth:

Bluetooth 1.1

Keyboard:

Full-size backlit keyboard

Capacity:

58Wh

Battery Life

Battery life：

4.5 hours

Charging Port:

Charging Speed: 65W Max

Height: 259mm

Width: 392mm

Thickness: 26mm

Weight: 3.1kg

A1085

PowerBook5,5

Preview

PowerBook G4

(15-inch 1.5GHz/1.33GHz)

Release Date

2004.04

OS Support

Mac OS X 10.3→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447A G4

Graphics:

ATI Mobility Radeon 9700

RAM:

2.0GB

Storage:

60GB80GB

Process:

130nm

15.2"

TFT

Resolution:

1280 x 854

PPI：

DVI：

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s / 800Mb/s)

3.5mm analog input jack：

Keyboard:

Full-size backlit keyboard

Wi-Fi:

802.11b/g

Bluetooth:

Keyboard:

Full-size backlit keyboard

Capacity:

Battery Life

Battery life：

5 hours

Charging Port:

Charging Speed: 65W Max

Height: 241mm

Width: 348mm

Thickness: 28mm

Weight: 2.6kg

A1095

PowerBook5,4

Preview

PowerBook G4

(12-inch 1.33GHz)

Release Date

April 2004

OS Support

Mac OS X 10.3→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447A G4

Graphics:

NVIDIA GeForce FX Go5200

RAM:

256MB1.25GB

Storage:

60GB80GB

Process:

130nm

12"

TFT

Resolution:

1024 x 768

PPI：

101

Mini-DVI：

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s)

Ethernet：

1 (10/100BASE-T)

Modem：

1 (56k v92)

3.5mm analog input jack：

Keyboard:

Full-size keyboard

Wi-Fi:

AirPort Extreme

Bluetooth:

Keyboard:

Full-size keyboard

Capacity:

50-watt-hour

Battery Life

Battery life：

5 hours

Charging Port:

Charging Speed: 45W

Height: 219mm

Width: 277mm

Thickness: 30mm

Weight: 2.1kg

A1010

PowerBook6,4

Preview

PowerBook G4

(17-inch 1.33GHz)

Release Date

September 2003

OS Support

Mac OS X 10.2→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447 G4

Graphics:

ATI Mobility Radeon 9600

RAM:

512MB2.0GB

Storage:

80GB

Process:

130nm

17"

TFT

Resolution:

1440 x 900

PPI：

100

DVI：

1 (24-bit 2048 by 1536 non-mirror)

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s)

Ethernet：

1 (10/100/1000BASE-T)

Modem：

1 (56k v92)

CardBus：

3.5mm analog input jack：

Keyboard:

Full-size backlit keyboard

Wi-Fi:

AirPort Extreme

Bluetooth:

Keyboard:

Full-size backlit keyboard

Capacity:

58-watt-hour

Battery Life

Battery life：

4.5 hours

Charging Port:

Charging Speed: 65W

Height: 259mm

Width: 392mm

Thickness: 26mm

Weight: 3.1kg

A1052

PowerBook5,3

Preview

PowerBook G4

(15-inch FW800)

Release Date

September 2003

OS Support

Mac OS X 10.2→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447 G4

Graphics:

ATI Mobility Radeon 9600

RAM:

256MB512MB2.0GB

Storage:

60GB80GB

Process:

130nm

15"

TFT

Resolution:

1280 x 854

PPI：

101

DVI：

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s / 800Mb/s)

Ethernet：

1 (10/100/1000BASE-T)

Modem：

1 (56k v92)

CardBus：

3.5mm analog input jack：

Keyboard:

Full-size backlit keyboard

Wi-Fi:

AirPort Extreme

Bluetooth:

1.1

Keyboard:

Full-size backlit keyboard

Capacity:

46-watt-hour

Battery Life

Battery life：

4.5 hours

Charging Port:

Charging Speed: 65W

Height: 241mm

Width: 348mm

Thickness: 28mm

Weight: 2.5kg

A1046

PowerBook5,2

Preview

PowerBook G4

(12-inch DVI)

Release Date

September 2003

OS Support

Mac OS X 10.2→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7447 G4

Graphics:

NVIDIA GeForce FX Go5200

RAM:

256MB1.25GB

Storage:

40GB

Process:

130nm

12.1"

TFT XGA

Resolution:

1024 x 768

PPI：

101

Mini-DVI：

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s)

Ethernet：

1 (10/100BASE-T)

Modem：

1 (56k v92)

3.5mm analog input jack：

Keyboard:

Full-size keyboard

Wi-Fi:

AirPort Extreme

Bluetooth:

1.1

Keyboard:

Full-size keyboard

Capacity:

47-watt-hour

Battery Life

Battery life：

5 hours

Charging Port:

Charging Speed: 45W

Height: 219mm

Width: 277mm

Thickness: 30mm

Weight: 2.1kg

A1010

PowerBook6,2

Preview

PowerBook G4

(17-inch, Early 2003)

Release Date

January 2003

OS Support

Mac OS X 10.2→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7455 v3.3 G4

Graphics:

NVIDIA GeForce4 440 Go

RAM:

512MB2.0GB

Storage:

60GB

Process:

180nm

17"

TFT

Resolution:

1440 x 900

PPI：

100

DVI：

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s / 800Mb/s)

Ethernet：

1 (10/100BASE-T)

Modem：

1 (56k v92)

CardBus：

3.5mm analog input jack：

Keyboard:

Full-size backlit keyboard

Wi-Fi:

AirPort Extreme

Bluetooth:

1.1

Keyboard:

Full-size backlit keyboard

Capacity:

52-watt-hour

Battery Life

Battery life：

5 hours

Charging Port:

Charging Speed: 65W

Height: 259mm

Width: 392mm

Thickness: 26mm

Weight: 3.1kg

A1013

PowerBook5,1

Preview

PowerBook G4

(12-inch, Early 2003)

Release Date

2003.01

OS Support

Mac OS X 10.3→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7455 v3.0 (G4)

Graphics:

NVIDIA GeForce4 420 Go

RAM:

256MB

Storage:

40GB60GB

Process:

180nm

12.1"

TFT

Resolution:

1024 x 768

PPI：

101

Mini-VGA：

USB-A：

1 (480Mbps)

FireWire：

1 (400Mb/s)

Composite video：

3.5mm audio in / out：

Keyboard:

Full-size keyboard (78 U.S. / 79 ISO keys, 12 function keys, 4 arrow keys, embedded keys)

Wi-Fi:

AirPort Extreme

Bluetooth:

Built-in

Keyboard:

Full-size keyboard (78 U.S. / 79 ISO keys, 12 function keys, 4 arrow keys, embedded keys)

Capacity:

Battery Life

Battery life：

5 hours

Charging Port:

Charging Speed: -

Height: 218mm

Width: 277mm

Thickness: 30mm

Weight: 2.1kg

A1010

PowerBook6,1

Preview

PowerBook G4

(1GHz/867MHz)

Release Date

November 2002

OS Support

Mac OS X 10.2→Mac OS X 10.5

Color

1-Core PowerPC

PowerPC 7455 v3.2 (G4)

Graphics:

ATI Mobility Radeon 9000

RAM:

256MB512MB

Storage:

40GB60GB

Process:

180nm

15.2"

TFT

Resolution:

1280 x 854

PPI：

DVI：

USB-A：

2 (480Mbps)

FireWire：

1 (400Mb/s)

3.5mm input / output jack：

Keyboard:

Full-size keyboard

Wi-Fi:

802.11b

Bluetooth:

Keyboard:

Full-size keyboard

Capacity:

Battery Life

Battery life：

5 hours

Charging Port:

Charging Speed: -

Height: 241mm

Width: 341mm

Thickness: 26mm

Weight: 2.4kg

A1025

PowerBook3,5

Preview

PowerBook G4

(DVI)

Release Date

April 2002

OS Support

Mac OS 9.2→Mac OS X 10.4

Color

1-Core PowerPC

PowerPC 7455 G4

Graphics:

ATI Mobility Radeon 7500

RAM:

1.0GB

Storage:

30GB40GB60GB

Process:

180nm

15.2"

TFT

Resolution:

1280 x 854

PPI：

DVI：

USB-A：

2 (12Mb/s)

FireWire：

1 (400Mb/s)

S-video：

3.5mm analog input jack：

Keyboard:

Full-size keyboard

Wi-Fi:

802.11b

Bluetooth:

Keyboard:

Full-size keyboard

Capacity:

55.3-watt-hour

Battery Life

Battery life：

5 hours

Charging Port:

Charging Speed: 45W

Height: 241mm

Width: 341mm

Thickness: 26mm

Weight: 2.4kg

A1001

PowerBook3,4

Preview

PowerBook G4

(Gigabit Ethernet)

Release Date

October 2001

OS Support

Mac OS 9.2→Mac OS X 10.4

Color

1-Core PowerPC

PowerPC 7450 G4

Graphics:

ATI Mobility Radeon

RAM:

1.0GB

Storage:

20GB30GB48GB

Process:

180nm

15.2"

TFT

Resolution:

1152 x 768

PPI：

VGA：

USB-A：

2 (12Mb/s)

FireWire：

1 (400Mb/s)

S-video：

3.5mm analog output jack：

Keyboard:

Full-size keyboard

Wi-Fi:

802.11b

Bluetooth:

Keyboard:

Full-size keyboard

Capacity:

55.3-watt-hour

Battery Life

Battery life：

5 hours

Charging Port:

Charging Speed: 45W

Height: 241mm

Width: 341mm

Thickness: 26mm

Weight: 2.4kg

M8407

PowerBook3,3

Preview

PowerBook G4

(Early 2001)

Release Date

January 2001

OS Support

Mac OS 9.1→Mac OS X 10.4

Color

1-Core PowerPC

PowerPC 7410 G4

Graphics:

ATI Rage Mobility 12B

RAM:

1.0GB

Storage:

10GB20GB30GB

Process:

180nm

15.2"

TFT

Resolution:

1152 x 768

PPI：

VGA：

USB-A：

2 (12Mb/s)

FireWire：

1 (400Mb/s)

S-video：

3.5mm analog output jack：

Keyboard:

Full-size keyboard

Wi-Fi:

802.11b

Bluetooth:

Keyboard:

Full-size keyboard

Capacity:

50-watt-hour

Battery Life

Battery life：

5 hours

Charging Port:

Charging Speed: -

Height: 241mm

Width: 341mm

Thickness: 26mm

Weight: 2.4kg

M5884

PowerBook3,2

Preview

PowerBook G3

(FireWire)

Release Date

February 2000

OS Support

Mac OS 9.0→Mac OS X 10.4

Color

1-Core PowerPC

PowerPC 750 G3

Graphics:

ATI Rage Mobility 12B

RAM:

1.0GB

Storage:

6GB10GB12GB20GB

Process:

250nm

14.1"

TFT

Resolution:

1024 x 768

PPI：

VGA：

USB-A：

2 (12Mb/s)

FireWire：

2 (400Mb/s)

S-video：

3.5mm analog input jack：

Keyboard:

Full-size keyboard

Wi-Fi:

802.11b

Bluetooth:

Keyboard:

Full-size keyboard

Capacity:

50-watt-hour

Battery Life

Single battery：

5 hours

Dual battery：

100 hours

Charging Port:

Charging Speed: 45W

Height: 264mm

Width: 323mm

Thickness: 43mm

Weight: 2.8kg

M7572

PowerBook3,1

Preview

PowerBook G3

(Bronze Keyboard)

Release Date

May 1999

OS Support

Mac OS 8.6→Mac OS X 10.3

Color

1-Core PowerPC

PowerPC 750 G3

Graphics:

ATI Rage LT Pro

RAM:

512MB (Actual) / 384MB (Apple)

Storage:

4GB10GB

Process:

250nm

14.1"

TFT

Resolution:

1024 x 768

PPI：

VGA：

USB-A：

2 (12Mb/s)

SCSI：

S-video：

3.5mm analog input jack：

Keyboard:

Full-size keyboard (Bronze)

Bluetooth:

Keyboard:

Full-size keyboard (Bronze)

Capacity:

50-watt-hour

Battery Life

Single battery：

5 hours

Dual battery：

100 hours

Charging Port:

Charging Speed: 45W

Height: 264mm

Width: 323mm

Thickness: 41mm

Weight: 2.7kg

M5343

PowerBook1,1

Preview

PowerBook G3

(September 1998)

Release Date

September 1998

OS Support

Mac OS 8.1→Mac OS X 10.2

Color

1-Core PowerPC

PowerPC 750 G3

Graphics:

ATI Rage Pro LT

RAM:

512MB (Actual) / 192MB (Apple)

Storage:

2.0GB4.0GB8.0GB

Process:

250nm

12.1"

SVGA

Resolution:

800 x 600

PPI：

VGA：

SCSI：

S-video：

Serial：

3.5mm analog input jack：

Keyboard:

Full-size keyboard

Bluetooth:

Keyboard:

Full-size keyboard

Capacity:

49-watt-hour

Battery Life

Single battery：

3.5 hours

Dual battery：

70 hours

Charging Port:

Charging Speed: 45W

Height: 264mm

Width: 323mm

Thickness: 51mm

Weight: 3.3kg

M4753

312

Preview

PowerBook G3

(May 1998)

Release Date

May 1998

OS Support

Mac OS 8.0→Mac OS X 10.2

Color

1-Core PowerPC

PowerPC 740/750 G3

Graphics:

ATI Rage LT

RAM:

512MB (Actual) / 192MB (Apple)

Storage:

2.0GB

Process:

250nm

12.1"

STN

Resolution:

800 x 600

PPI：

VGA：

SCSI：

Serial：

3.5mm analog input jack：

Keyboard:

Full-size keyboard

Bluetooth:

Keyboard:

Full-size keyboard

Capacity:

49-watt-hour

Battery Life

Single battery：

3.5 hours

Dual battery：

70 hours

Charging Port:

Charging Speed: 45W

Height: 264mm

Width: 323mm

Thickness: 51mm

Weight: 3.3kg

M4753

314

Preview

PowerBook G3

(1997)

Release Date

November 1997

OS Support

Mac OS 8.0→Mac OS 9.1

Color

1-Core PowerPC

PowerPC 750 G3

RAM:

160MB

Storage:

5.0GB

Process:

250nm

12.1"

LCD

Resolution:

800 x 600

PPI：

HDI-15：

SCSI：

Serial：

3.5mm analog input jack：

Keyboard:

Full-size keyboard

Bluetooth:

Keyboard:

Full-size keyboard

Capacity:

47-watt-hour

Battery Life

Single battery：

2-4 hours

Charging Port:

Charging Speed: 45W

Height: 241mm

Width: 292mm

Thickness: 61mm

Weight: 3.4kg

M3553

313
