Basic Info
Chip & Memory
Display
Display Specs
Camera
Sensors
Audio System
Media Formats
接口
Wireless
Interaction
Authentication
Battery / Life
Charging Specs
Process / Neural Engine
System Requirements
Size & Weight
Model Numbers
Model ID
Description
Docs

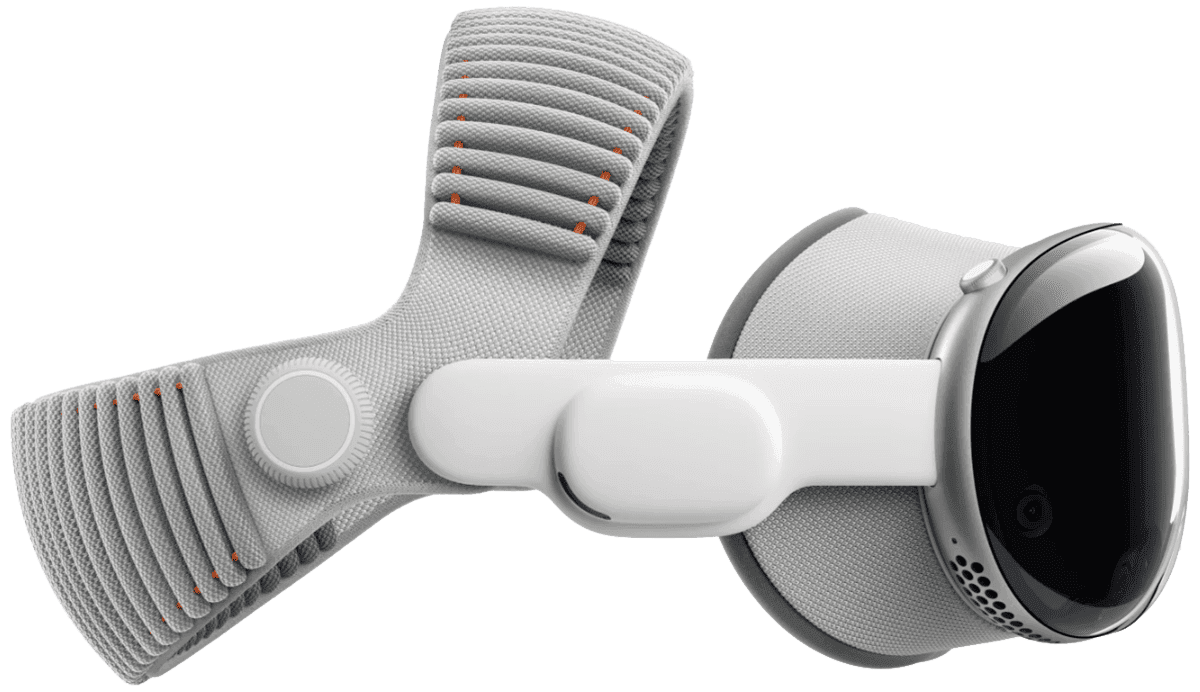

Apple Vision Pro(M5)
Preview
Preview
Apple Vision Pro
(M5)
Release Date
2025.10.15
OS Support
visionOS 26.0 or later
Color
Coprocessor
Apple R1
Coprocessor Bandwidth
256 GB/s
M5 (10-core)
S-Core?:
4.60GHz × 4
E-Core:
3.04GHz × 6
GPU:
Apple G17G × 10
RAM:
16GB
24GB
32GB
Unified Memory:
16GB
Storage:
256GB512GB1TB
Panels:
Two Micro-OLED displays (inward)
One EyeSight OLED display (outward)
Screen Size:
1.41-inch (inward)
Pixels:
23 million pixels per eye
Resolution:
3660 × 3200
PPI：
3386
Pixel Pitch:
7.5-micron
Gamut:
92% DCI-P3
Refresh Rate:
90Hz, 96Hz, 100Hz, 120Hz
IPD:
51-75 mm
Stereoscopic 3D main camera system
Spatial photo and video capture
18 mm focal length, ƒ/2.00 aperture
Two high-resolution main camerasSix world-facing tracking camerasFour eye-tracking camerasTrueDepth cameraLiDAR ScannerFour inertial measurement units (IMUs)Flicker sensorAmbient light sensor
Microphone:
Six-microphone array with directional beamforming
Speaker:
Spatial Audio with dynamic head tracking, Personalized Spatial Audio, and audio ray tracing
H2 Connection:
Supports H2-to-H2 ultra-low-latency connection to AirPods Pro 2 (USB-C) and AirPods 4
Audio Formats:
AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos
Video Formats:
HEVC, MV-HEVC, H.264, Dolby Vision HDR, HDR10, and HLG
USB-C：
1
Wi-Fi:
802.11ax Wi-Fi 6
Bluetooth:
Bluetooth 5.3
Hand tracking
Eye tracking
Voice control (Siri)
Supported Accessories
Keyboard
Trackpad
Game controller
Optic ID
Capacity:
External battery (3166 mAh, 35.9 Wh)
Battery Life
Cellular：
Up to 2.5 hours
Cellular：
Up to 3 hours
Charging Port:
USB-C
Charging Speed: 30W
Process:
TSMC N3P
Neural Engine:
16-core 38 TOPS
iPhone with iOS 26 or later (for setup)
Mac with macOS 26 Tahoe or later (for Mac Virtual Display)
Weight: 750-800g (without headband)
Battery: 353g
A3416
RealityDevice17,1
On October 15, 2025, Apple introduced an updated Vision Pro featuring the Apple M5 chip. Compared to the previous M2 chip, the M5 boasts more CPU cores, an improved GPU, and an enhanced Neural Engine. The R1 chip continues to handle sensor data processing. The M5 version offers 10% more pixel rendering on the Micro-OLED displays than the original, resulting in clearer images and sharper text. The refresh rate now reaches up to 120Hz (compared to 100Hz on the M2 version), reducing motion blur. The M5 model introduces the new Dual Knit Band as standard, featuring an upper strap for added support and tungsten weights in the lower band to improve balance and stability. Pre-orders began on October 15, 2025, with official availability in Apple Stores starting October 22.
Tech Specs

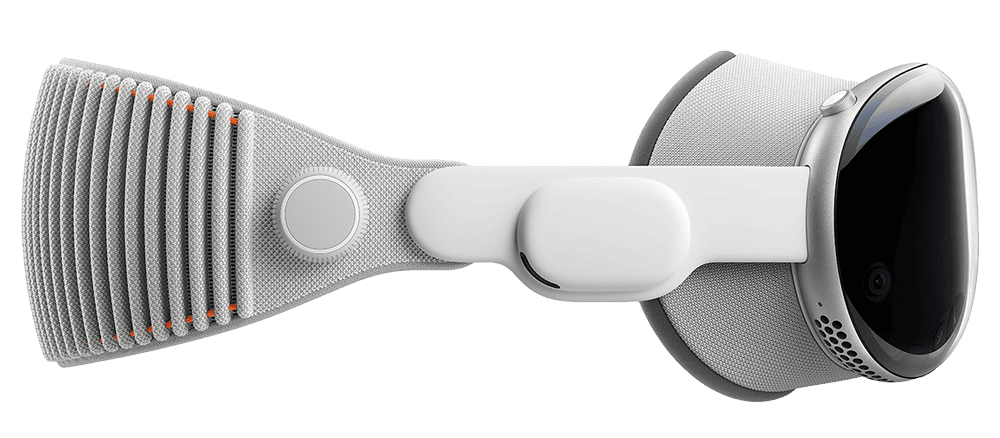

Apple Vision Pro
Preview
Preview
Apple Vision Pro
Release Date
2023.06.06
Discontinued
2025.10
OS Support
visionOS 1.0 or later
Color
Coprocessor
Apple R1
Coprocessor Bandwidth
256 GB/s
M2 (8-core)
P-Core:
3.49GHz × 4
E-Core:
2.42GHz × 4
GPU:
Apple G14G × 10
RAM:
8GB
16GB
24GB
Unified Memory:
16GB
Storage:
256GB512GB1TB
Panels:
Two Micro-OLED displays (inward)
One EyeSight OLED display (outward)
Screen Size:
1.41-inch (inward)
Pixels:
23 million pixels per eye
Resolution:
3660 × 3200
PPI：
3386
Pixel Pitch:
7.5-micron
Gamut:
92% DCI-P3
Refresh Rate:
90Hz, 96Hz, 100Hz
IPD:
51-75 mm
Stereoscopic 3D main camera system
Spatial photo and video capture
18 mm focal length, ƒ/2.00 aperture
Two high-resolution main camerasSix world-facing tracking camerasFour eye-tracking camerasTrueDepth cameraLiDAR ScannerFour inertial measurement units (IMUs)Flicker sensorAmbient light sensor
Microphone:
Six-microphone array with directional beamforming
Speaker:
Spatial Audio with dynamic head tracking, Personalized Spatial Audio, and audio ray tracing
H2 Connection:
Supports H2-to-H2 ultra-low-latency connection to AirPods Pro 2 (USB-C) and AirPods 4
Audio Formats:
AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos
Video Formats:
HEVC, MV-HEVC, H.264, Dolby Vision HDR, HDR10, and HLG
USB-C：
1
Wi-Fi:
802.11ax Wi-Fi 6E
Bluetooth:
Bluetooth 5.3
Hand tracking
Eye tracking
Voice control (Siri)
Supported Accessories
Keyboard
Trackpad
Game controller
Bluetooth mouse (visionOS 2 or later)
Optic ID
Capacity:
External battery (3166 mAh, 35.9 Wh)
Battery Life
Cellular：
Up to 2 hours
Cellular：
Up to 2.5 hours
Charging Port:
USB-C
Charging Speed: 30W
Process:
TSMC N5P
Neural Engine:
16-core 15.8 TOPS
iPhone with iOS 17 or later (for setup)
Mac with macOS 14 Sonoma or later (for Mac Virtual Display)
Weight: 600-650g (without headband)
Battery: 353g
A2117
RealityDevice14,1
Apple Vision Pro is Apple's first spatial computing device, officially announced on June 6, 2023, at the WWDC23 developer conference, marking Apple's entry into the era of 'spatial computing.' It went on sale in the United States on February 2, 2024. Powered by the Apple M2 chip and the new Apple R1 chip, the R1 is specifically designed to process input from 12 cameras, 5 sensors, and 6 microphones, ensuring content is presented in real-time. Vision Pro features two ultra-high-resolution Micro-OLED displays, with per-eye resolution exceeding the pixel count of a 4K TV, and supports wide color and HDR. Interaction is handled via eye tracking, hand gestures, and voice commands, with Optic ID (iris recognition) used for authentication. An external battery provides approximately 2 hours of general use or 2.5 hours of video playback. It was discontinued in October 2025 following the introduction of the next-generation model.
Tech Specs
